Hiwatt Custom 20 Combo 1x12

The Custom 20 combo pairs the twin-EL84 Custom 20 chassis with a 12-inch Fane F25, a speaker chosen for midrange presence and crunch rather than maximum handling, in a format one person can carry into a club.

The 2025 revision added a Bright switch and a push-pull gain boost. Bright adds treble to clean tones at low volume or tightens gain sounds when the amp is wound up; the boost works on both the high and low inputs and thickens the preamp harmonically. Those two interact with the input impedance choice, which is how a simple front panel covers a lot of ground. A Fane Purpleback 150 is available as a speaker upgrade.

Wattage	20W
Inputs	Hi; Low
Output	2 x 1/4" Speaker Out
Preamp Valves	3 x ECC83 (12AX7)
Output Valves	2 x EL84

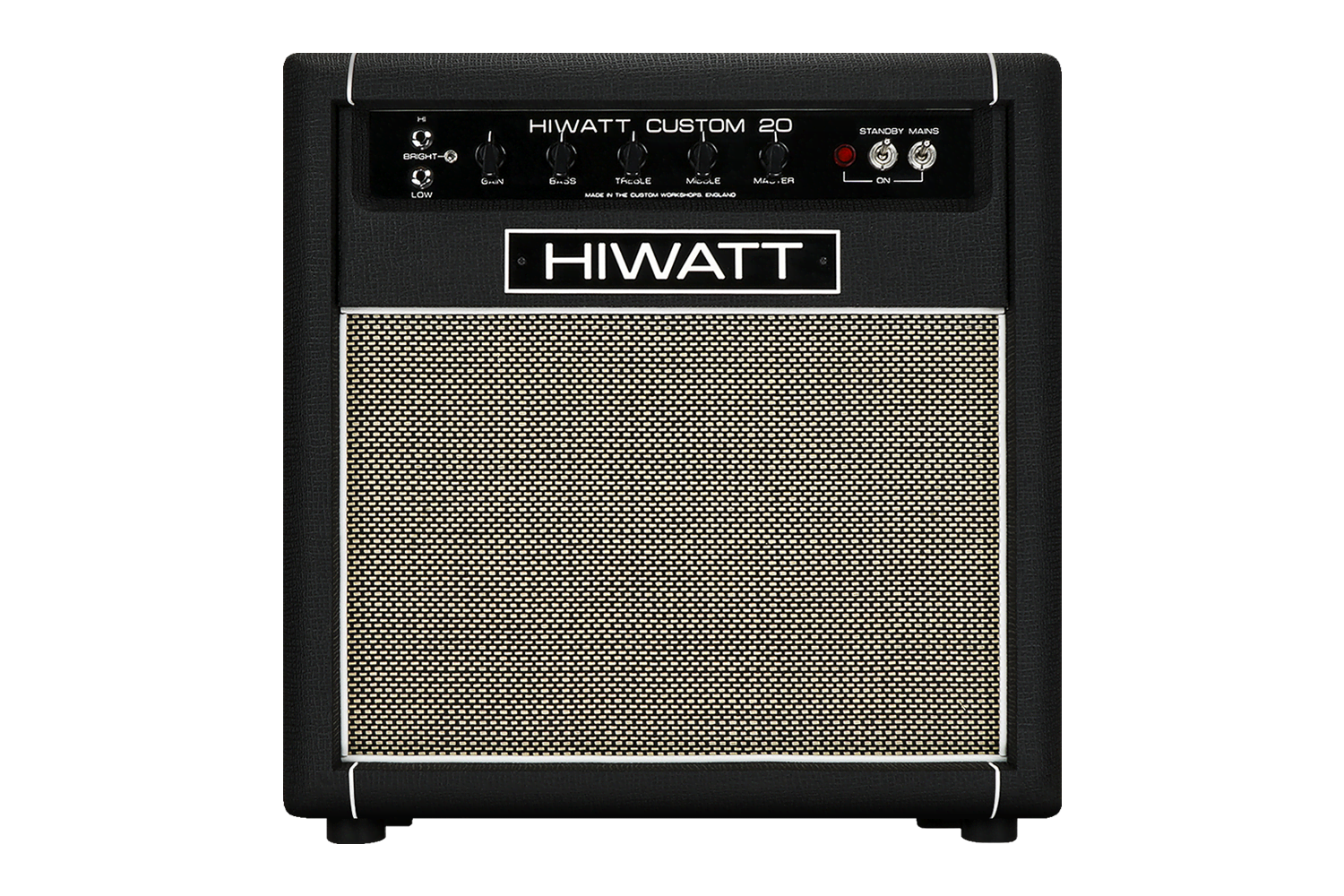

Controls	Master Volume; 3-Band EQ - Bass, Treble, Middle; Gain; Push/Pull Gain Boost; Bright Switch; Standby - On/Off; Mains - On/Off

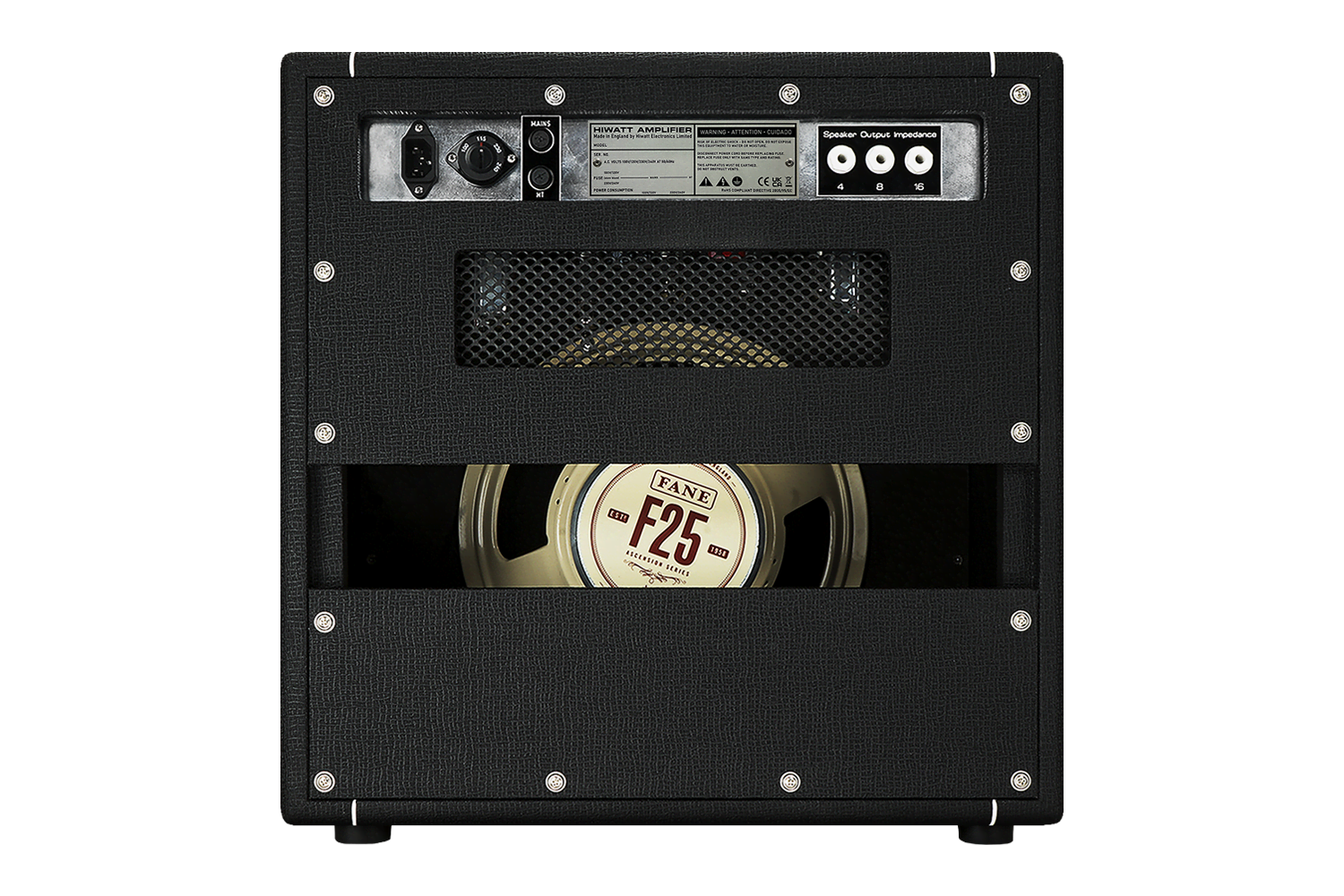

Impedance	Switchable using Variable Impedance Outputs on the rear panel - 4 Ω, 8 Ω, or 16 Ω
Speaker	Custom Hiwatt Fane F25, 25 W, 12-inch
Optional Speaker Upgrade	Custom Hiwatt Fane Purpleback, 150 W, 12-inch
