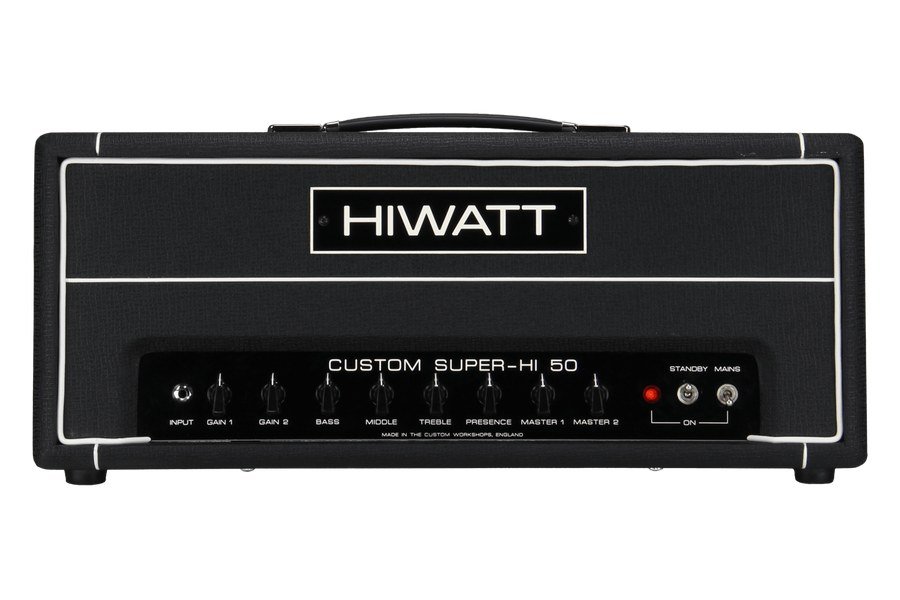

Hiwatt Super-HI 50

The Custom Super-Hi 50 is what happens when heavy-metal amp designer Mike Fortin hot-rods a Hiwatt: four cascading gain stages on a classic Hiwatt chassis, aimed squarely at drop tunings and extended-range instruments.

String definition, punch and a tight bottom end are what the design chases, so the amp stays readable when the tuning goes down. There is one input, and the two gain channels are switched from the Custom Shop Super-Hi footswitch that ships with it; each channel has its own gain and master volume. Four ECC83s feed two EL34s, with 4, 8 and 16 ohm settings on the rear panel.

Wattage	50W
Channels	Gain 1, Gain 2
Inputs	Single Input - Channels switched with the Custom Shop Super-Hi Footswitch (included); 1/4" Footswitch Input
Output	2 x 1/4" Speaker Out
Preamp Valves	4 x ECC83 (12AX7)
Output Valves	2 x EL34
Controls	Gain 1; Gain 2; 3-Band EQ shared by both channels - Bass, Treble, Middle; Presence - Treble Boost shared by both channels; Master Volume 1; Master Volume 2; Standby - On/Off; Mains - On/Off

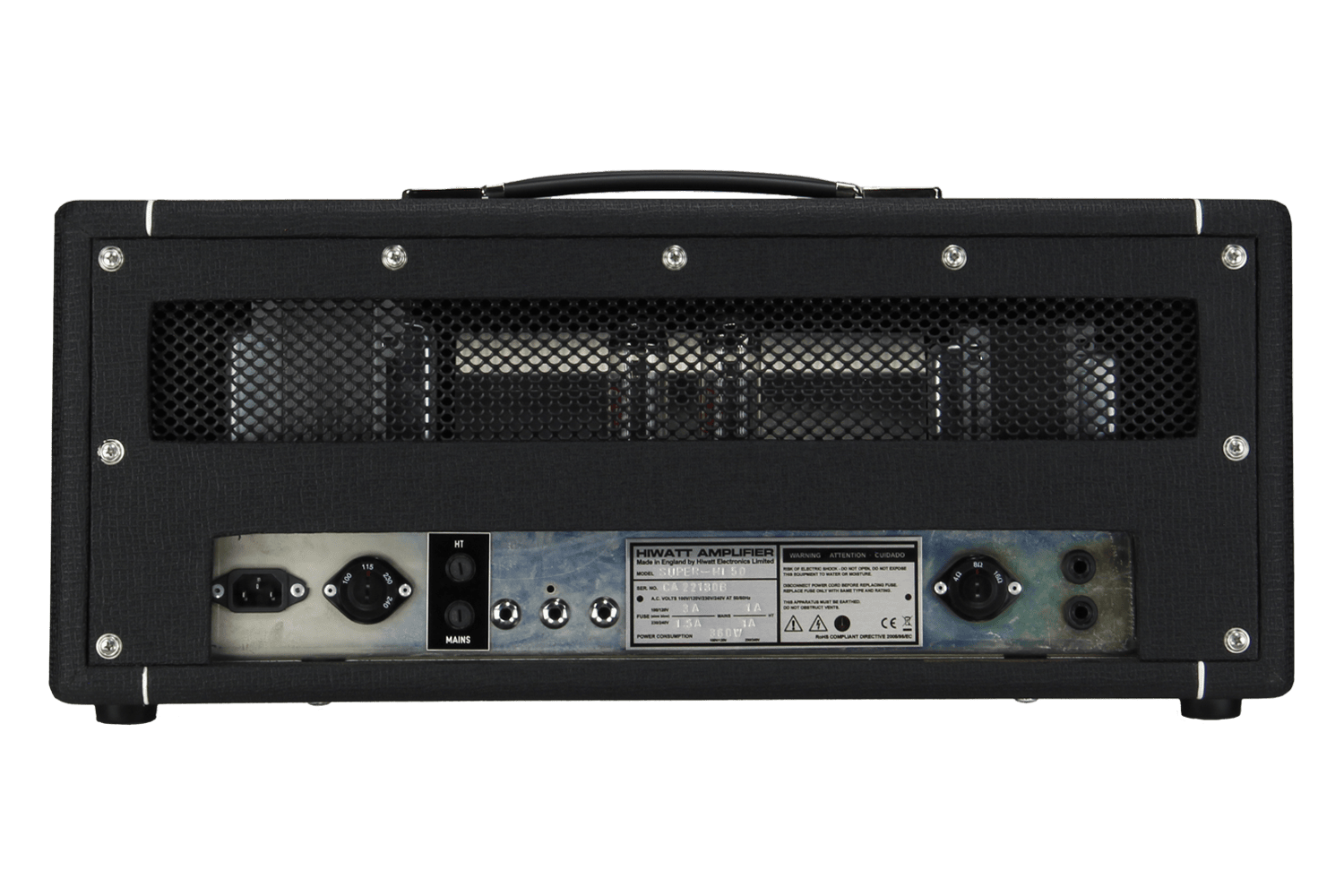

Impedance	Switchable using Impedance Selector on the rear panel - 4 Ω, 8 Ω, or 16 Ω
Gain Structure	Four cascading gain stages, plus a boost from the footswitch
Included	Custom Shop Super-Hi footswitch
