Hiwatt DR201 Head

Two hundred watts of valve headroom through a quartet of KT88s gives the DR201 a silkier character than the EL34 Hiwatts, and it lives in the range where clean has stopped and overdrive has not quite started.

Push a channel volume or jump Normal into Brilliant and it saturates. Three ECC83s and an ECC81 make up the preamp, each channel carries high- and low-impedance inputs, and the rear panel selects 4, 8 or 16 ohms. Long a fixture on bass records, it has since made a case for itself on guitar.

Wattage	200W
Channels	Normal, Brilliant
Inputs	Normal Hi; Normal Low; Brilliant Hi; Brilliant Low
Output	2 x 1/4" Speaker Out
Preamp Valves	3 x ECC83 (12AX7), 1 x ECC81 (12AT7)
Output Valves	4 x KT88
Controls	Normal Volume; Brilliant Volume; 3-Band EQ shared by both channels - Bass, Treble, Middle; Presence - Treble Boost shared by both channels; Master Volume; Standby - On/Off; Mains - On/Off

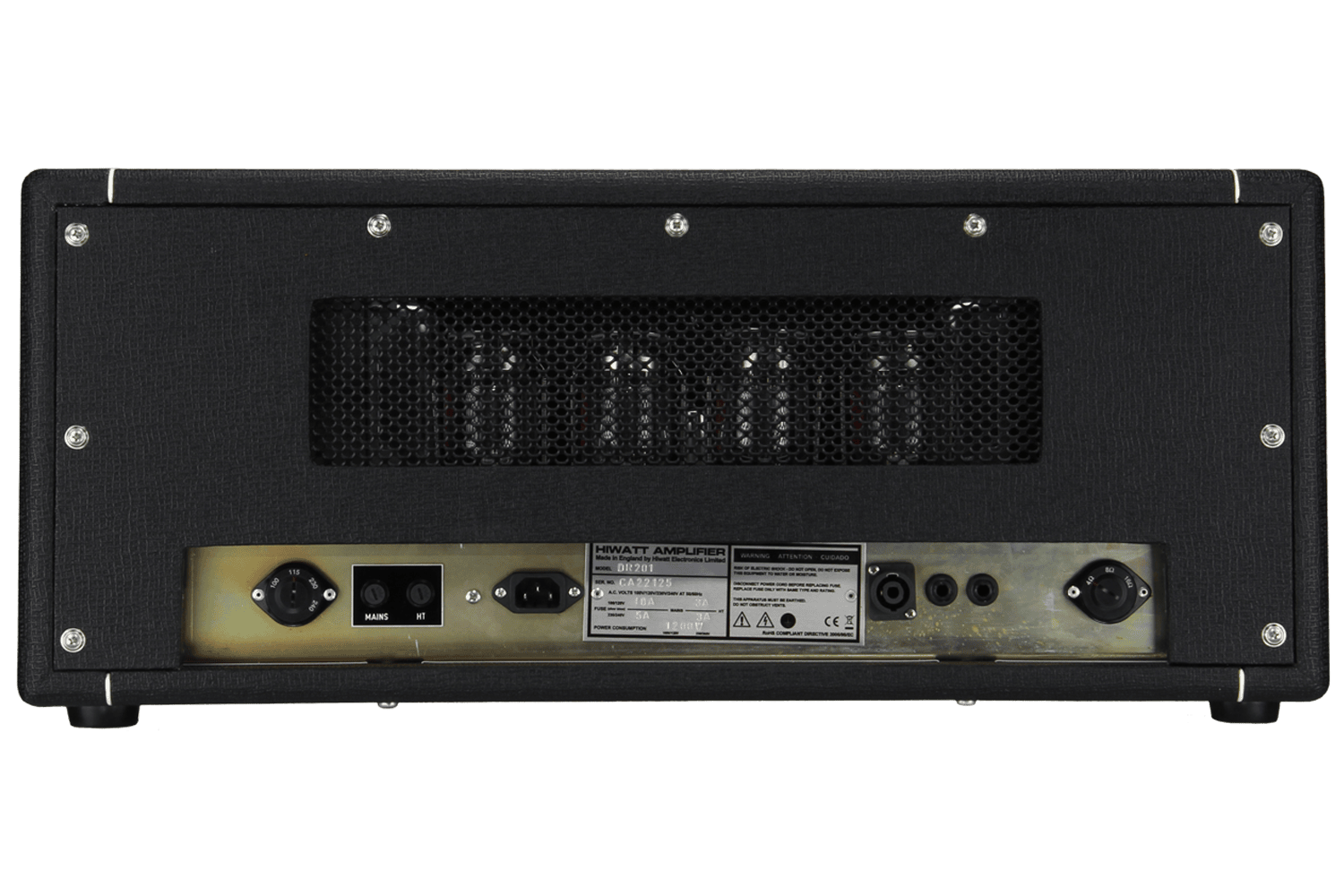

Impedance	Switchable using Impedance Selector on the rear panel - 4 Ω, 8 Ω, or 16 Ω
