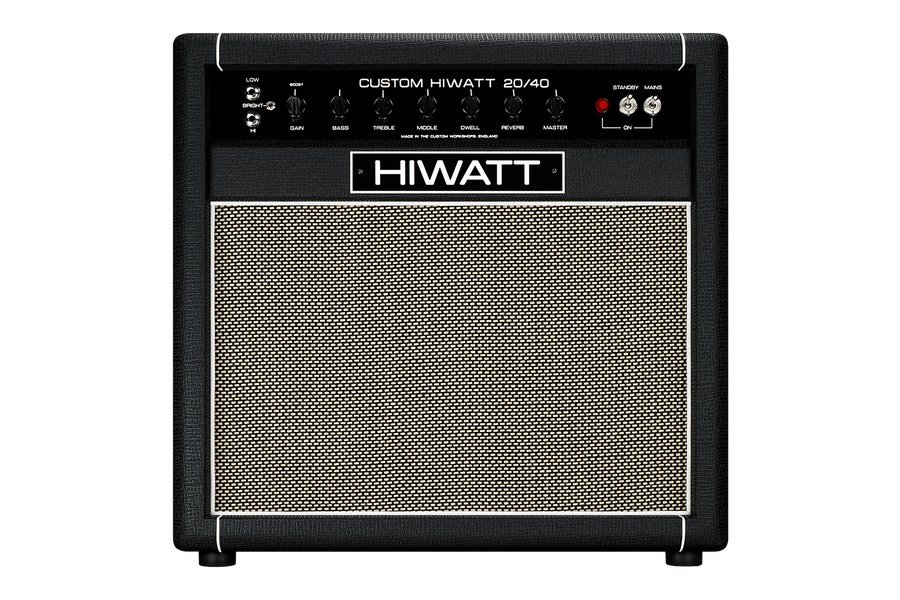

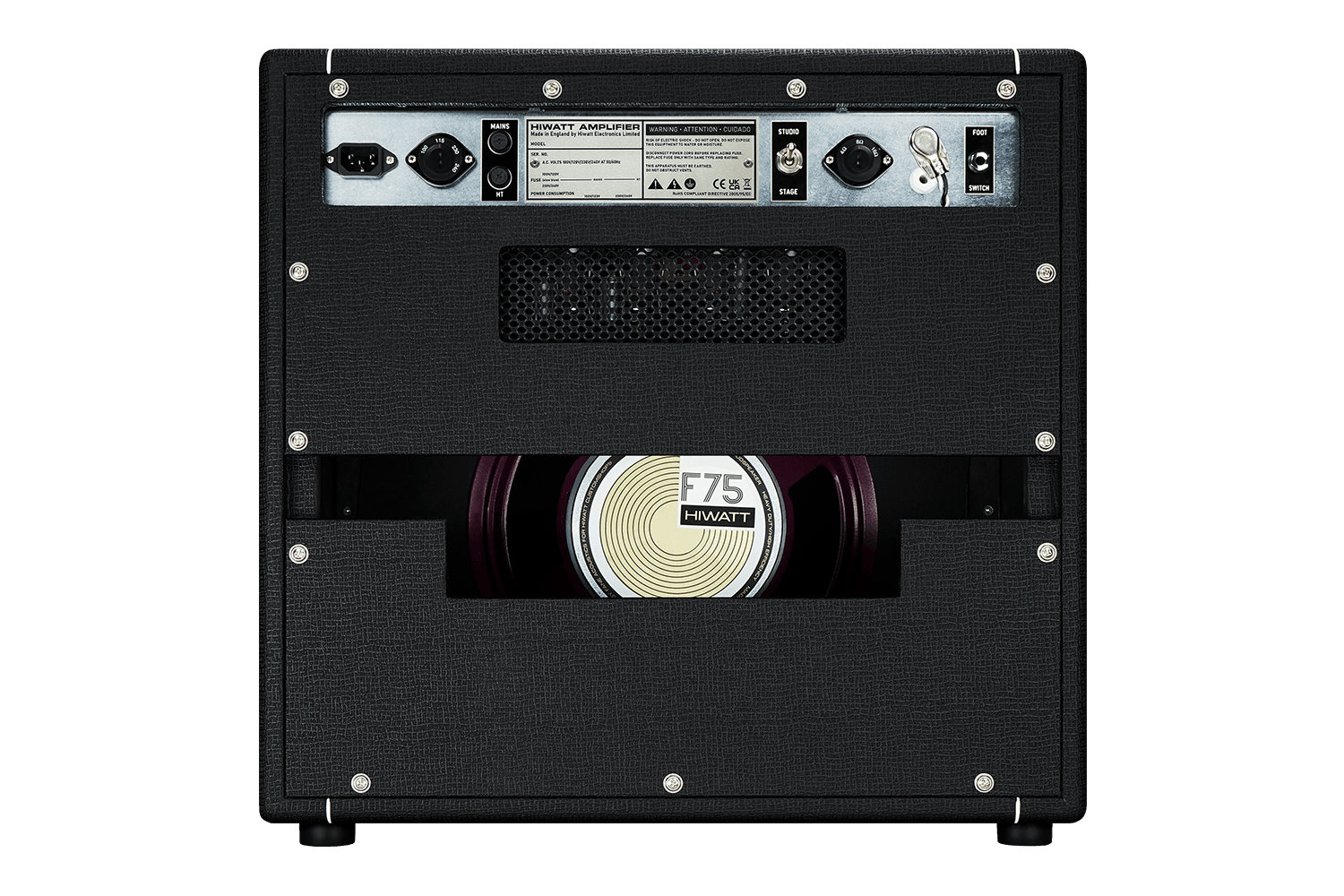

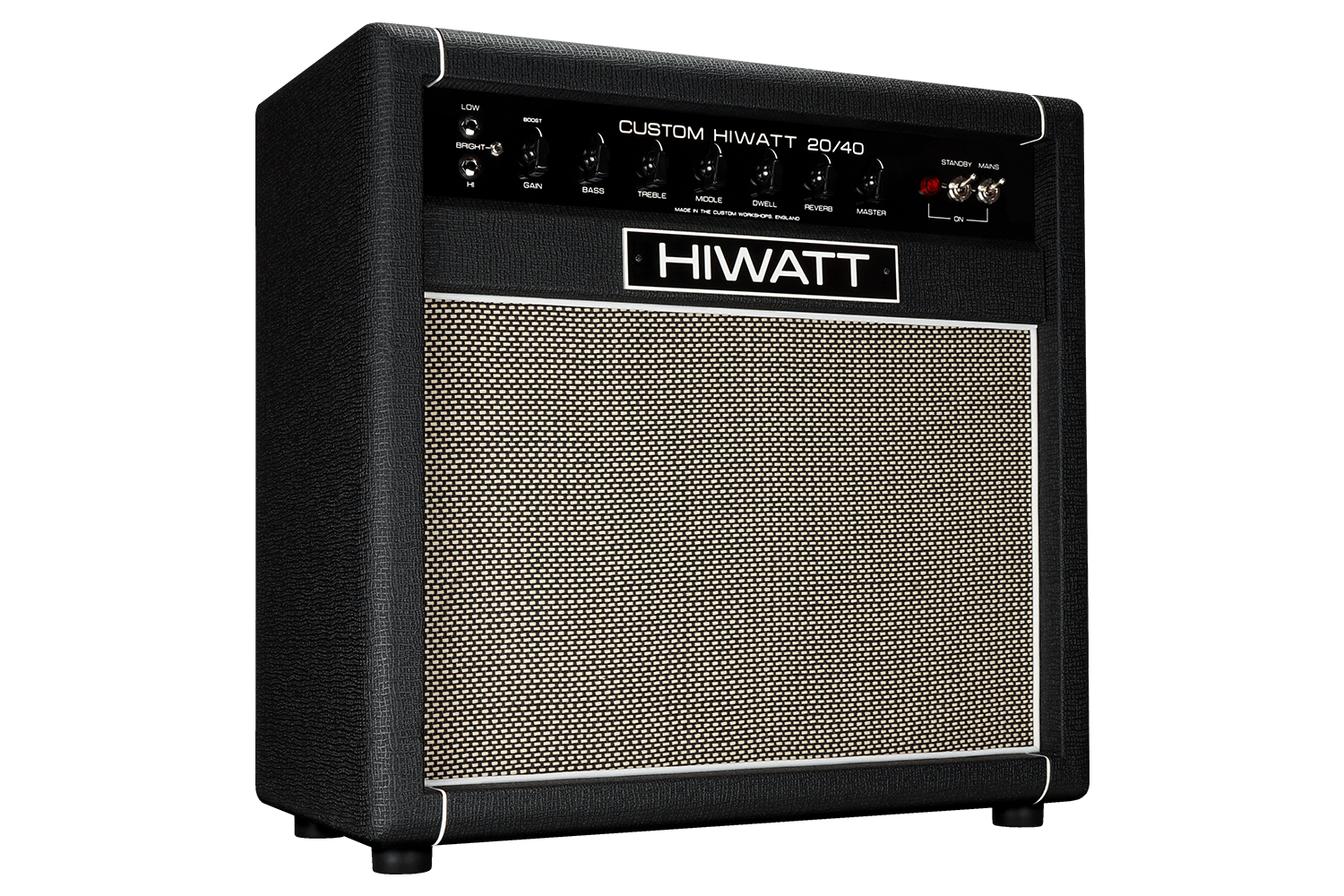

Hiwatt Studio Stage Combo 1x12

The SS20/40 combo is the flagship of Hiwatt's Custom Shop Studio range, loaded here with a single 12-inch Custom Hiwatt Fane F75. Power scaling puts 40 watts on tap in Stage mode and just over 20 in Studio mode, from a quartet of EL84s.

High and low impedance inputs set how hard the preamp is driven, a Bright switch works across both, and the Boost adds preamp gain and is footswitchable for changing it mid-song. This is one of the few Custom amps with reverb: a Dwell control sets how much signal hits the spring tank and Reverb blends it back, which covers ambience through to something much larger. A Fane Purpleback 150 is offered as a speaker upgrade.

Wattage	Switchable - 40W or 20W
Inputs	Hi; Low
Output	2 x 1/4" Speaker Out
Preamp Valves	3 x ECC83 (12AX7), 1 x ECC81 (12AT7)
Output Valves	4 x EL84
Controls	Master Volume; Reverb Level; Reverb Dwell; 3-Band EQ - Bass, Treble, Middle; Gain (Pull Potentiometer for Boost); Bright Switch; Standby - On/Off; Mains - On/Off
Impedance	Switchable using Impedance Selector on the rear panel - 4 Ω, 8 Ω, or 16 Ω
Speaker	Custom Hiwatt Fane F75, 75 W, 12-inch
Optional Speaker Upgrade	Custom Hiwatt Fane Purpleback, 150 W, 12-inch
Reverb	Onboard spring tank with Dwell and Level controls
