EtherWAN EXT1100 Hardened Gigabit PoE Extender
EtherWAN EXT1100 Hardened Gigabit PoE Extender pushes Ethernet past the 100 m copper limit on the wire already in the ground. Port count and media are listed as LED Indicators. The housing is aluminum case | ip rating | ip30 | dimensions 1.26" x 3.21" x 4.07" (w x d x h) | 32 x 81.5 x 103.5mm | weight | 0.3ibs (.14kg) | installation | din-rail or wall mout, rated IP30.
One orderable part number, EXT1100, listed at the current dealer price. Installation is din-rail or wall mount. Specifications above are taken from the EtherWAN datasheet for this family.
| Interface | LED Indicators |
|---|---|
| Power Consumption | 2.7W without PoE load |
| PoE Power Output | 15W/30W/60W |
| Casing | Aluminum case | IP Rating | IP30 | Dimensions 1.26" x 3.21" x 4.07" (W x D x H) | 32 x 81.5 x 103.5MM | Weight | 0.3Ibs (.14kg) | Installation | |
| IP Rating | IP30 |

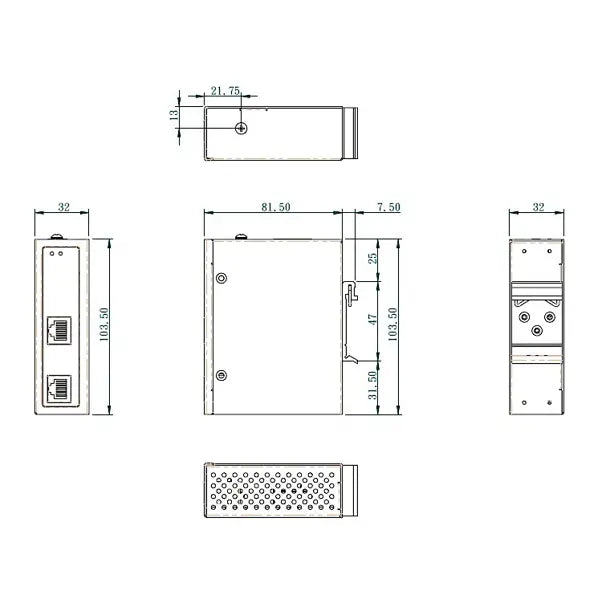

| Dimensions | 1.26" x 3.21" x 4.07" (W x D x H) | 32mm x 81.5mm x 103.5mm |
| Weight | 0.3Ibs (.14kg) |
| Installation | DIN-rail or wall mount |
