EtherWAN EXT1200 Hardened Gigabit IP67 PoE Extender

EtherWAN EXT1200 Hardened Gigabit IP67 PoE Extender pushes Ethernet past the 100 m copper limit on the wire already in the ground. Port count and media are listed as 3x10/100/1000BASE-T(X) RJ45 (1 PD, 2 PSE). Operating temperature is rated at -40 to 75 deg C (-40 to 167 deg F). The housing is aluminum, rated IP67.

One orderable part number, EXT1200, listed at the current dealer price. Installation is wall/panel mounting. Specifications above are taken from the EtherWAN datasheet for this family.

Ethernet3x10/100/1000BASE-T(X) RJ45 (1 PD, 2 PSE)
PoE Power OutputTotal PoE Output 60W Max
Casing MaterialAluminum
IP RatingIP67

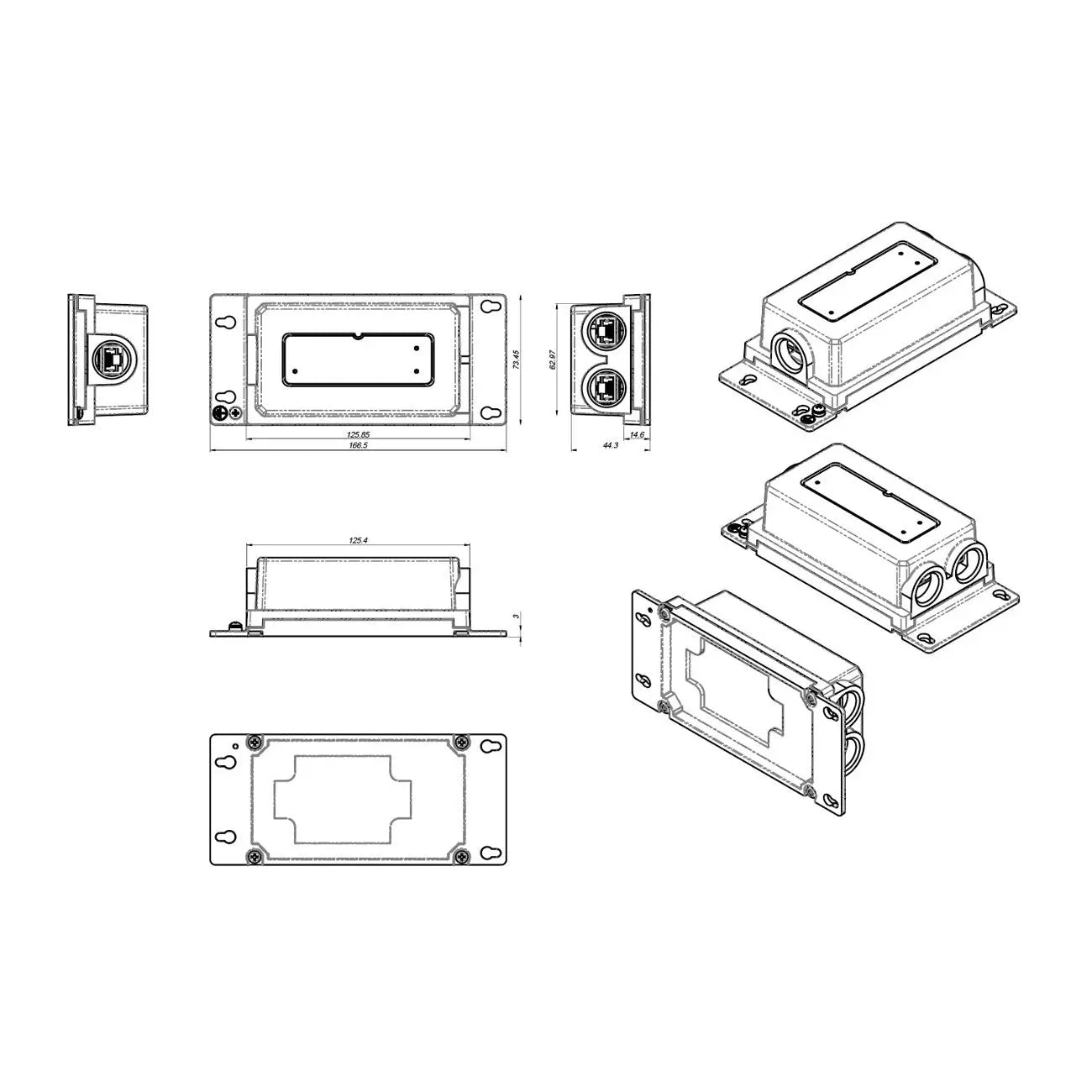

Dimensions6.56" x 2.89" x 1.74" (W x D x H) | 166.5 x 73.45 x 44.3mm
Weight1.0Ibs (0.45kg)
InstallationWall/Panel mounting
CasingAluminum case
