DAS Audio WR-6415-DXW Weather-Resistant Passive Loudspeaker

The DAS Audio WR-6415-DXW is a weather-resistant passive loudspeaker built around the 15AV low-frequency driver with the M-75 compression driver on a BC-64AL waveguide. It covers 55 Hz - 20 kHz, and it reaches 131 dB peak at one metre. Nominal coverage is 60 deg horizontal by 40 deg vertical.

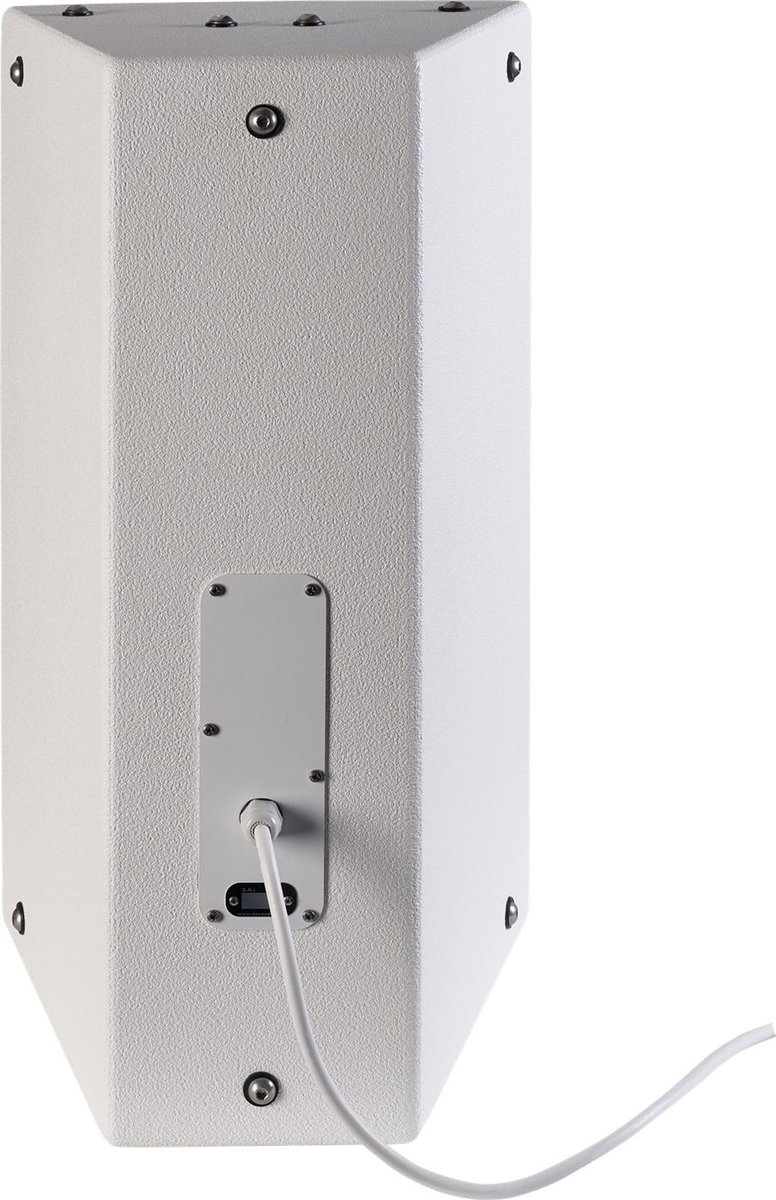

It is a passive box, 8 ohms nominal, handling 400 W RMS, so plan amplifier and processing to suit. Signal comes in on Covered Barrier Strip Terminals. The enclosure is built in Birch Plywood, finished in Fiberglass. It carries an IP56 rating for outdoor and wash-down sites. Rigging provision: M10 Rigging Points. Net weight is 36.0 kg (79.3 lb).

Frequency Range (-10 dB)	55 Hz - 20 kHz
Horizontal Coverage (-6 dB)	60 deg
Vertical Coverage	40 deg
Nominal Impedance	8 ohms
RMS Power Handling	400 W
Peak Power Handling	1600 W
On-axis Sensitivity 1W/1 m	99 dB SPL
Maximum Peak SPL at 1 m	131 dB
