DAS Audio WR-8826-DXW Weather-Resistant Passive Loudspeaker

The DAS Audio WR-8826-DXW is a weather-resistant passive loudspeaker built around the 6B low-frequency driver with the M-1 compression driver on a BC-88 waveguide. It covers 70 Hz - 22 kHz, and it reaches 122 dB peak at one metre. Nominal coverage is 80 deg horizontal by 80 deg vertical.

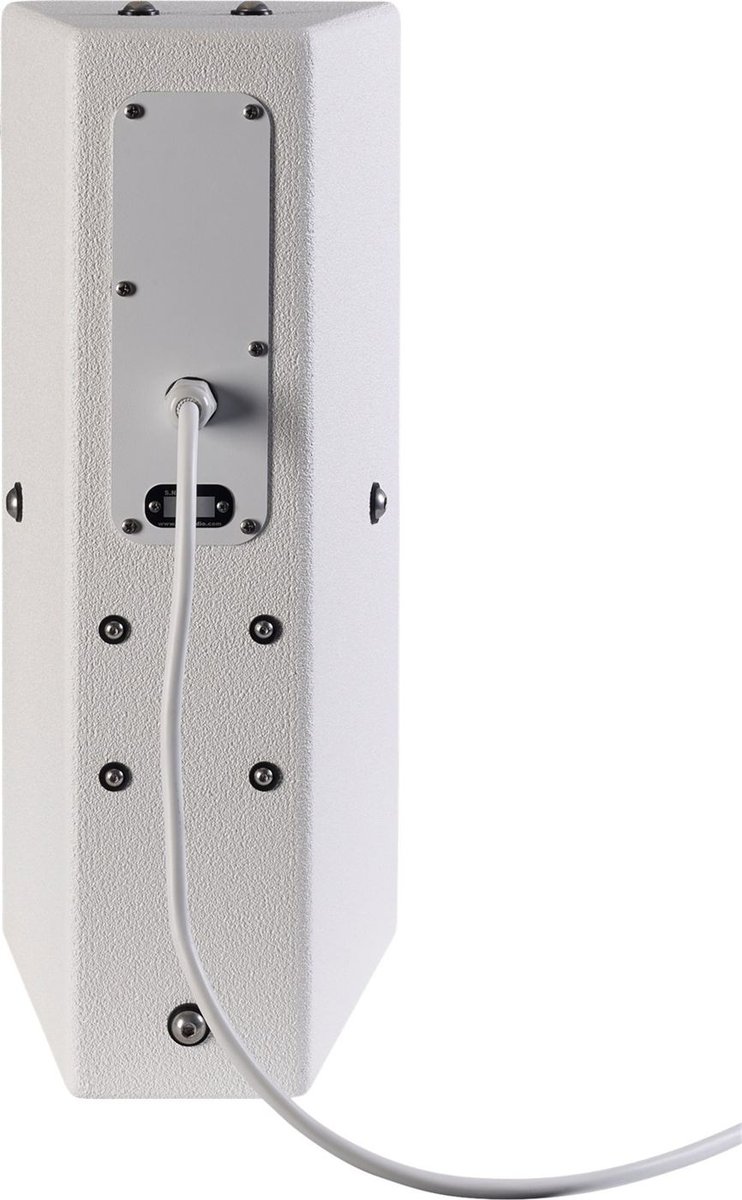

It is a passive box, 16 ohms nominal, handling 200 W RMS, so plan amplifier and processing to suit. Signal comes in on Covered Barrier Strip Terminals. The enclosure is built in Birch Plywood, finished in Fiberglass. It carries an IP56 rating for outdoor and wash-down sites. Rigging provision: M10 Rigging Points. Net weight is 11.0 kg (24.5 lb).

Frequency Range (-10 dB)	70 Hz - 22 kHz
Horizontal Coverage (-6 dB)	80 deg
Vertical Coverage	80 deg
Nominal Impedance	16 ohms
RMS Power Handling	200 W
Peak Power Handling	800 W
On-axis Sensitivity 1W/1 m	93 dB SPL
Maximum Peak SPL at 1 m	122 dB
