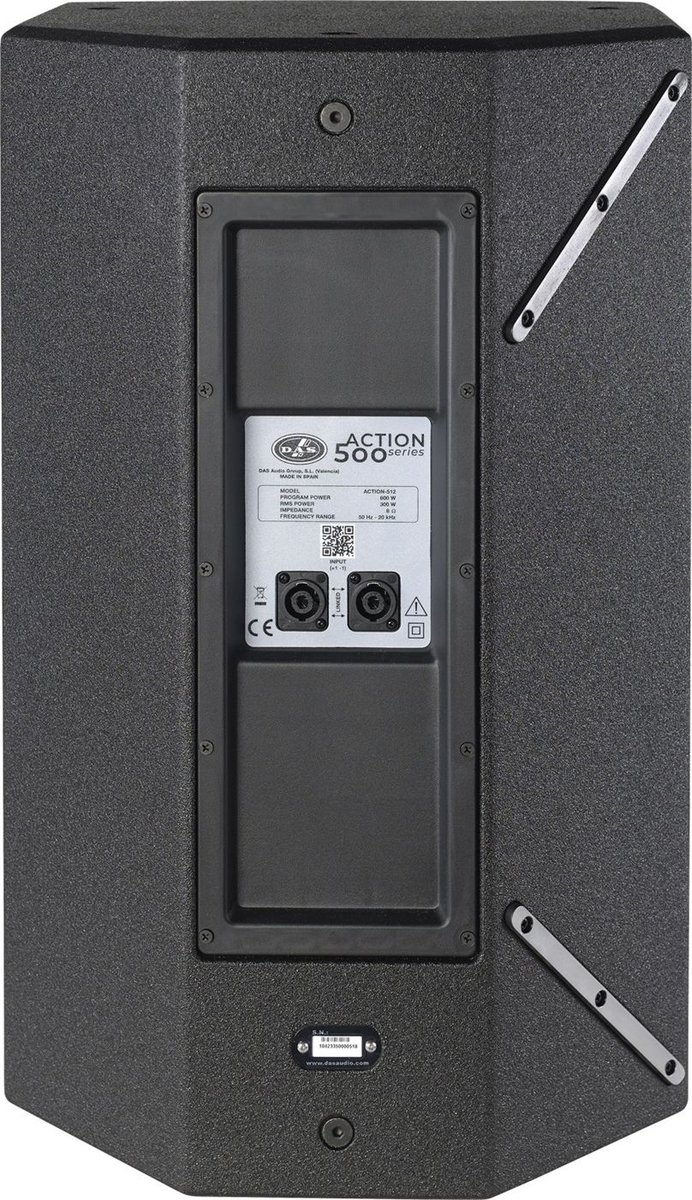

DAS Audio ACTION-512 Passive Loudspeaker

The DAS Audio ACTION-512 is a passive loudspeaker built around the 12MI low-frequency driver with the M-34 high-frequency driver on a BC-916 waveguide. It covers 50 Hz - 20 kHz, and it reaches 131 dB peak at one metre. Nominal coverage is 90 deg horizontal by 60 deg vertical.

It is a passive box, 8 ohms nominal, handling 300 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 19.0 kg (41.8 lb).

  • Inputs1 x speakON NL4
  • Frequency Range (-10 dB)50 Hz - 20 kHz
  • On-axis Sensitivity 1W/1 m96 dB SPL
  • RMS Power Handling300 W
  • Peak Power Handling1200 W
Frequency Range (-10 dB)50 Hz - 20 kHz
Horizontal Coverage (-6 dB)90 deg
Vertical Coverage60 deg
Nominal Impedance8 ohms
RMS Power Handling300 W
Peak Power Handling1200 W
On-axis Sensitivity 1W/1 m96 dB SPL
Maximum Peak SPL at 1 m131 dB
Dimensions620 x 385 x 380 mm 24,4 x 15,2 x 15,0 in
Weight19,0 kg ( 41,8 lb )
Inputs1 x speakON NL4
