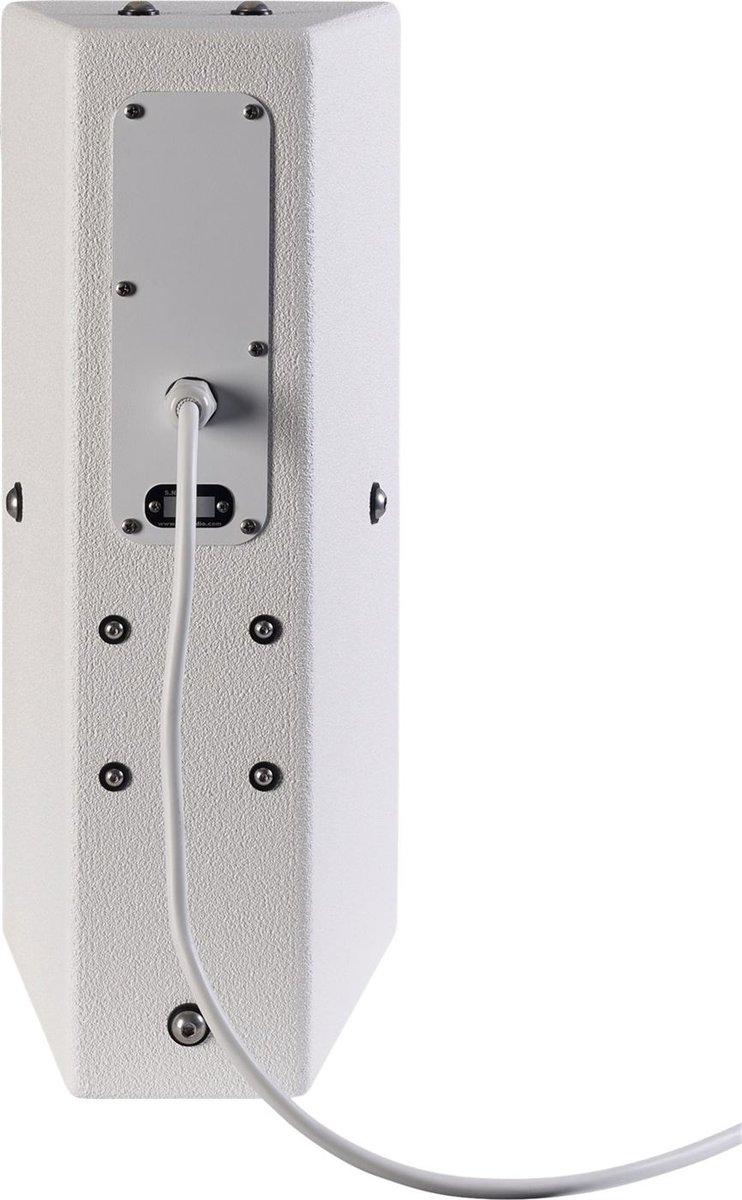

DAS Audio WR-8826-TDXW Weather-Resistant Passive Loudspeaker

The DAS Audio WR-8826-TDXW is a weather-resistant passive loudspeaker built around the 6B low-frequency driver with the M-1 compression driver on a BC-88 waveguide. It covers 76 Hz - 20 kHz, and it reaches 118 dB peak at one metre. Nominal coverage is 80 deg horizontal by 80 deg vertical.

It is a passive box, 133 ohms nominal, handling 75 W RMS, so plan amplifier and processing to suit. Signal comes in on Covered Barrier Strip Terminals. A line transformer is fitted for constant-voltage systems, tapped 70 V at 37 W and 100 V at 75 W. The enclosure is built in Birch Plywood, finished in Fiberglass. It carries an IP56 rating for outdoor and wash-down sites. Rigging provision: M10 Rigging Points. Net weight is 11.0 kg (24.5 lb).
