DAS Audio ACTION-508 Passive Loudspeaker

The DAS Audio ACTION-508 is a passive loudspeaker built around the 8GV low-frequency driver with the M-34 high-frequency driver on a BCT-96 waveguide. It covers 60 Hz - 20 kHz, and it reaches 124 dB peak at one metre. Nominal coverage is 90 deg horizontal by 60 deg vertical.

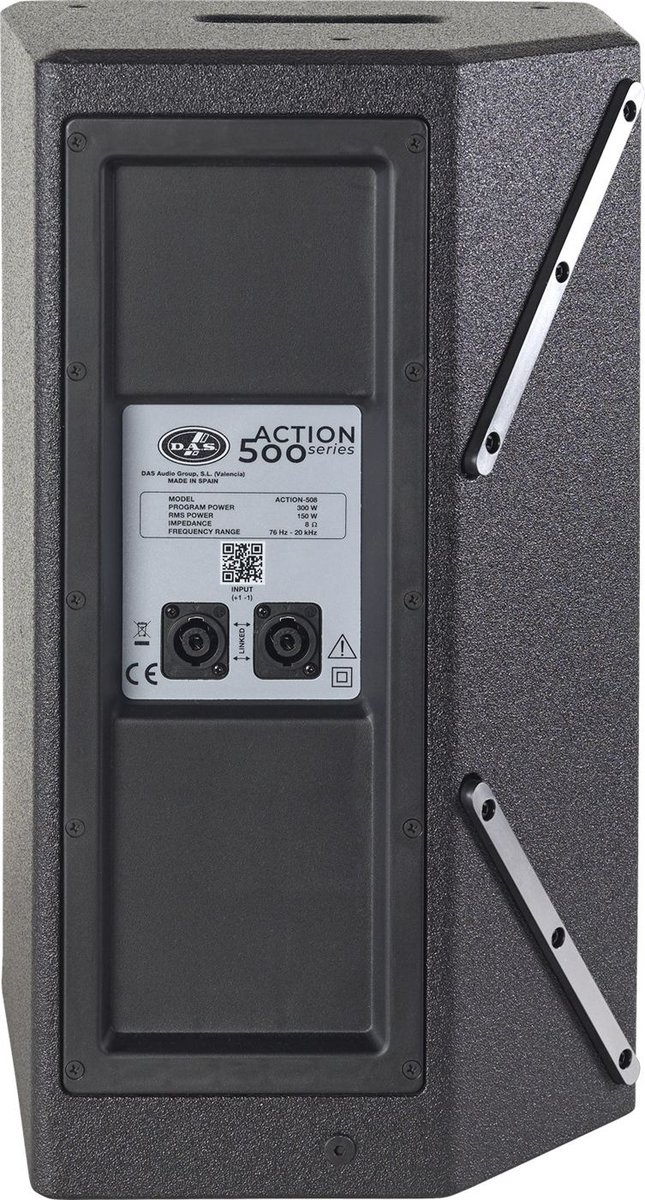

It is a passive box, 8 ohms nominal, handling 150 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M8 Rigging Points. Net weight is 10.5 kg (23.1 lb).

Frequency Range (-10 dB)	60 Hz - 20 kHz
Horizontal Coverage (-6 dB)	90 deg
Vertical Coverage	60 deg
Nominal Impedance	8 ohms
RMS Power Handling	150 W
Peak Power Handling	600 W
On-axis Sensitivity 1W/1 m	94 dB SPL
Maximum Peak SPL at 1 m	124 dB
