DAS Audio ACTION-515 Passive Loudspeaker

The DAS Audio ACTION-515 is a passive loudspeaker built around the 15MI low-frequency driver with the M-34 high-frequency driver on a BC-916 waveguide. It covers 47 Hz - 20 kHz, and it reaches 131 dB peak at one metre. Nominal coverage is 90 deg horizontal by 60 deg vertical.

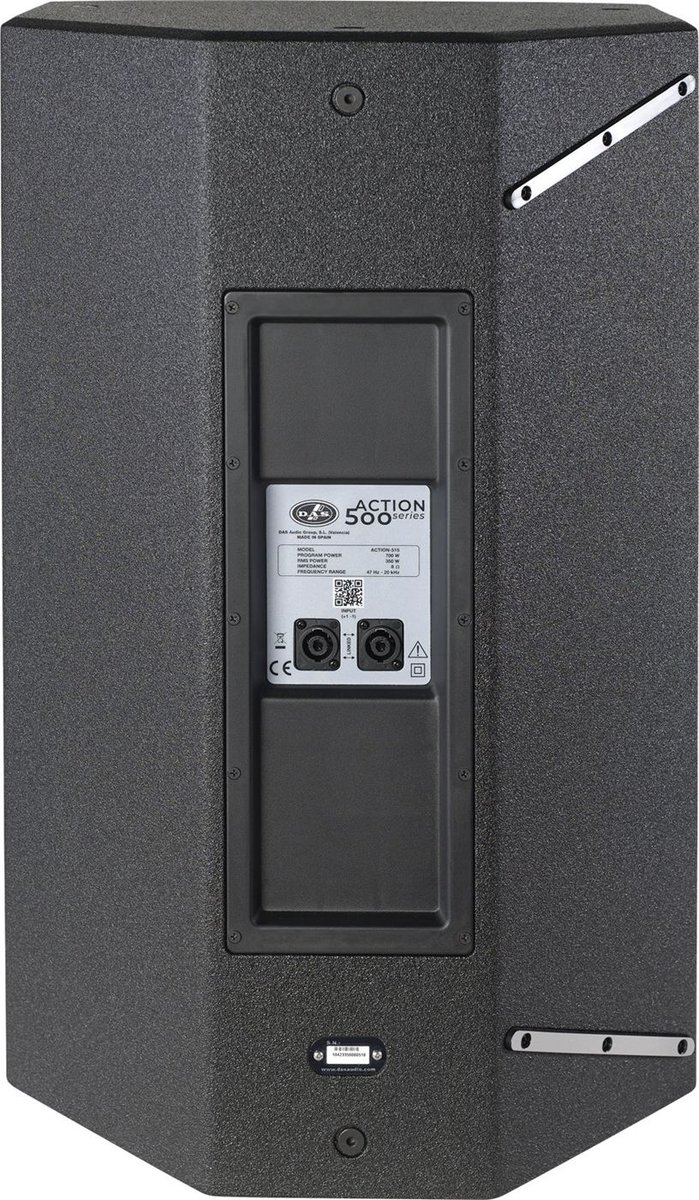

It is a passive box, 8 ohms nominal, handling 350 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 22.0 kg (50.2 lb).

Frequency Range (-10 dB)	47 Hz - 20 kHz
Horizontal Coverage (-6 dB)	90 deg
Vertical Coverage	60 deg
Nominal Impedance	8 ohms
RMS Power Handling	350 W
Peak Power Handling	1400 W
On-axis Sensitivity 1W/1 m	96 dB SPL
Maximum Peak SPL at 1 m	131 dB
