DAS Audio Integral A1002 2-Channel Install Amplifier

The Integral A1002 is a dual-channel, 2U Class D amplifier for permanent installation, stepping up from the A402 platform to 2 x 500 W into 4 ohms. A universal switching supply and auto-standby circuit hold power draw down when the room is quiet. Bridge mode combines the channels for a single 1000 W output into 70V or 100V distributed lines.

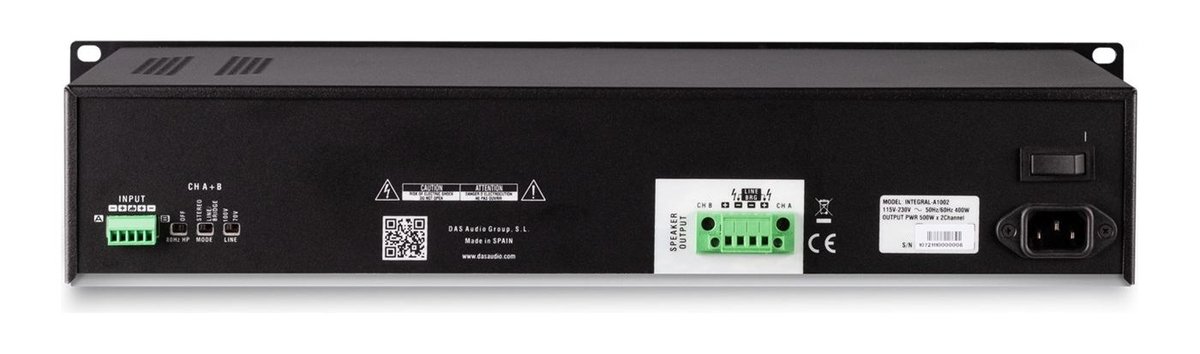

Audio and speaker connections use euro-block terminal blocks, with an IEC inlet for AC. The rear panel sets stereo/bridge mode and an optional 80 Hz, 12 dB/octave high-pass filter. Front LEDs report power, protect/standby state and signal/clip so a tech can read the amplifier's status without pulling it from the rack.

Power (4 ohms)	2 x 500 W
Power (100V/70V, bridged)	1 x 1000 W
Amplifier Channels	2
Output Circuitry	Class D
Frequency Response	20 Hz - 30 kHz (+0 / -0.5 dB)
Voltage Gain	30.4 dB
Dimensions (H x W x D)	88 x 483 x 208 mm (3.5 x 19.0 x 8.2 in)
Net Weight	3.5 kg (7.7 lb)
