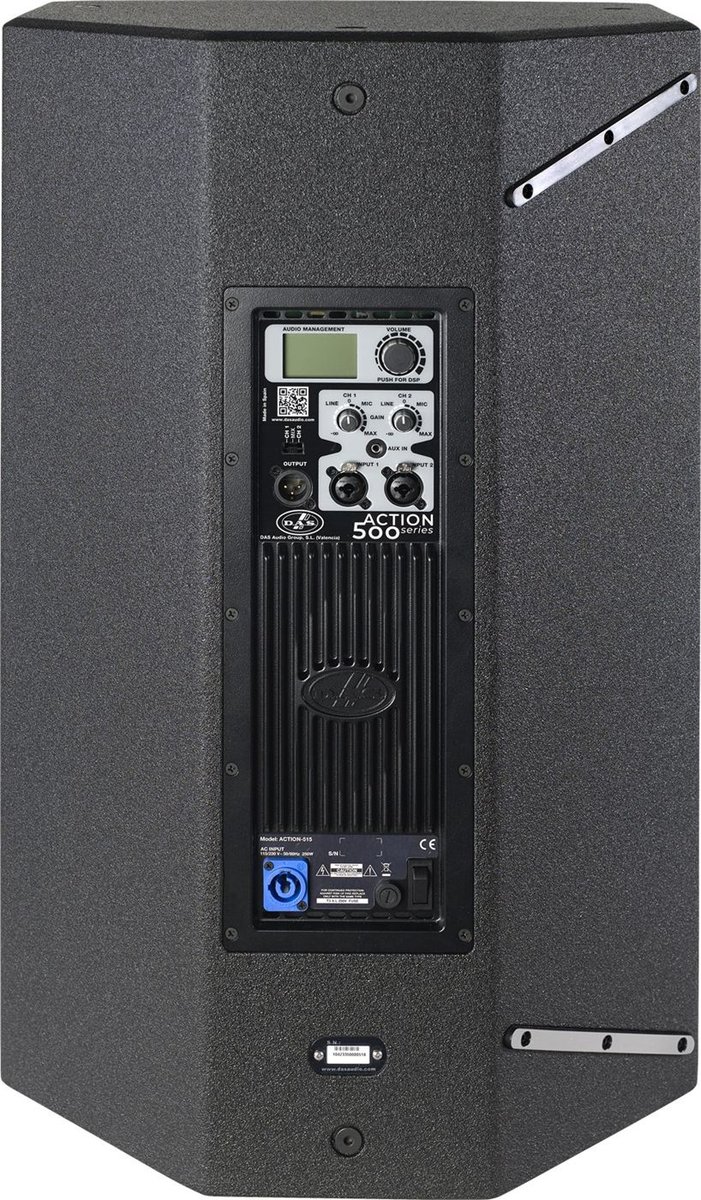

DAS Audio ACTION-515A Powered Loudspeaker

The DAS Audio ACTION-515A is a powered loudspeaker built around the 15MI4 low-frequency driver with the M-34 compression driver on a BC-916 waveguide. It covers 45 Hz - 20 kHz, and it reaches 131 dB peak at one metre. Nominal coverage is 90 deg horizontal by 60 deg vertical.

Amplification is on board, rated 500 W continuous and 1000 W peak. Signal comes in on 2 x Female XLR. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 23.5 kg (51.8 lb).
