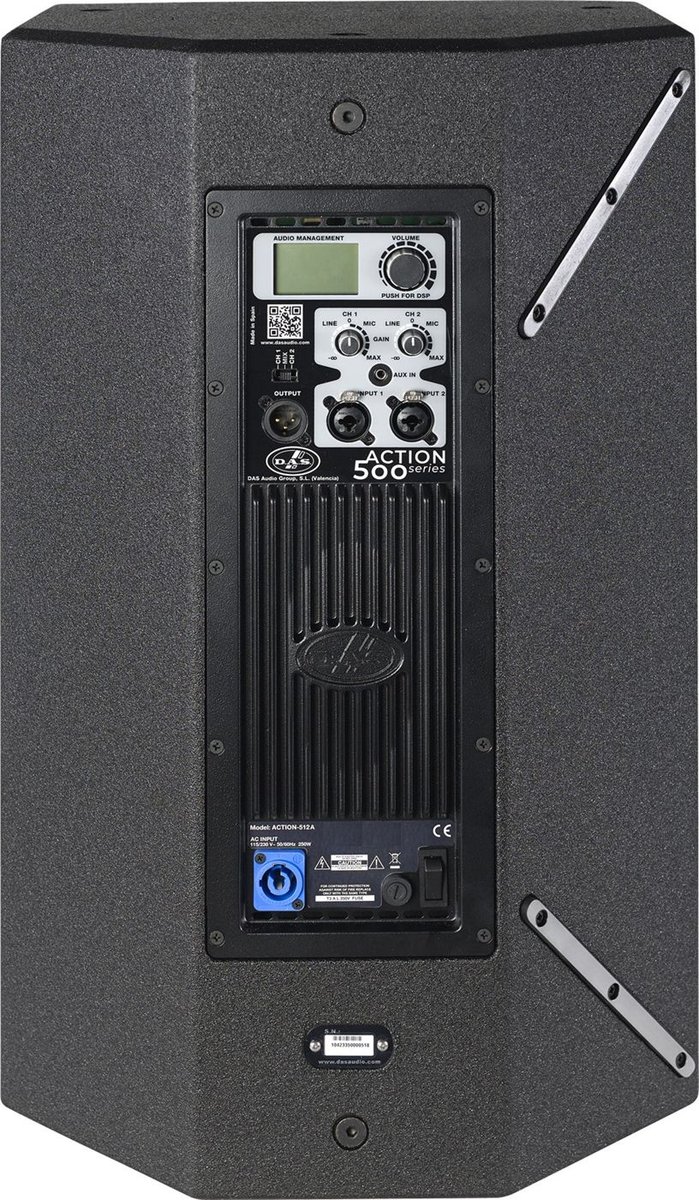

DAS Audio ACTION-512A Powered Loudspeaker
The DAS Audio ACTION-512A is a powered loudspeaker built around the 12MI4 low-frequency driver with the M-34 compression driver on a BC-916 waveguide. It covers 50 Hz - 20 kHz, and it reaches 131 dB peak at one metre. Nominal coverage is 90 deg horizontal by 60 deg vertical.
Amplification is on board, rated 500 W continuous and 1000 W peak. Signal comes in on 2 x Female XLR. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 20.0 kg (44.1 lb).
- Inputs2 x Female XLR
- Frequency Range (-10 dB)50 Hz - 20 kHz
- Nominal Amplifier Power (continuous)500 W
- Nominal Amplifier Power (peak)1000 W
- Weight20,0 kg ( 44,1 lb )
| Frequency Range (-10 dB) | 50 Hz - 20 kHz |
|---|---|
| Horizontal Coverage (-6 dB) | 90 deg |
| Vertical Coverage | 60 deg |
| Nominal Amplifier Power (continuous) | 500 W |
| Nominal Amplifier Power (peak) | 1000 W |
| Maximum Peak SPL at 1 m | 131 dB |
| LF Driver | 12MI4 |
| HF Driver | M-34 |
| Dimensions | 620 x 385 x 380 mm 24,4 x 15,2 x 15,0 in |
| Weight | 20,0 kg ( 44,1 lb ) |
| Inputs | 2 x Female |
XLRThe three-pin balanced audio connector used on professional microphones and mixers.
