Crestron Ultimate IC6-AW 6.5 in. 2-Way All Weather In-Ceiling Speaker
The Ultimate IC6-AW is a two-way in-ceiling speaker built around a 6.5 in. carbon fibre woofer and a 1 in. ceramic-coated aluminium tweeter that steers up to 30 degrees off axis, so the high end can be aimed at the listening position rather than at the floor. The crossover is steep at 30 dB per octave and set at 3.5 kHz, and the speaker runs 52 Hz to 30 kHz at 8 ohms nominal, 86 dB sensitivity, handling 150 W program and 300 W peak.

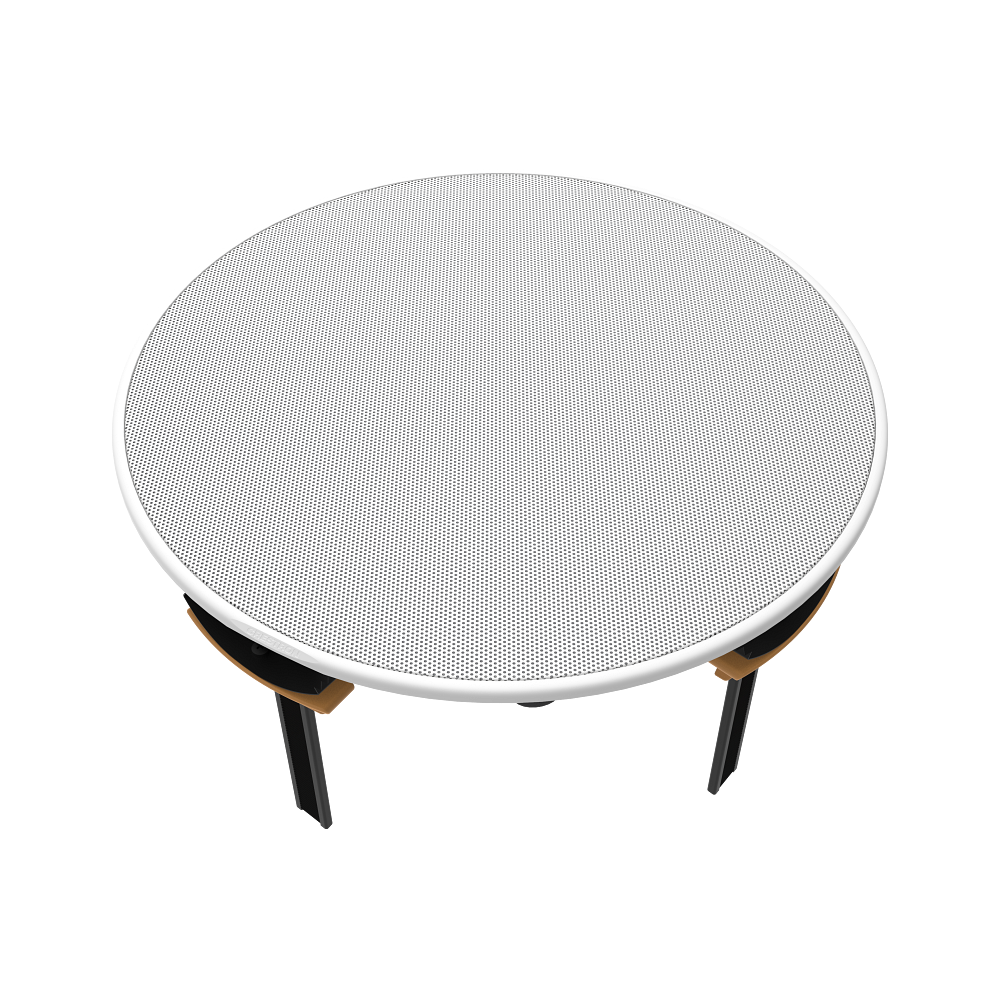

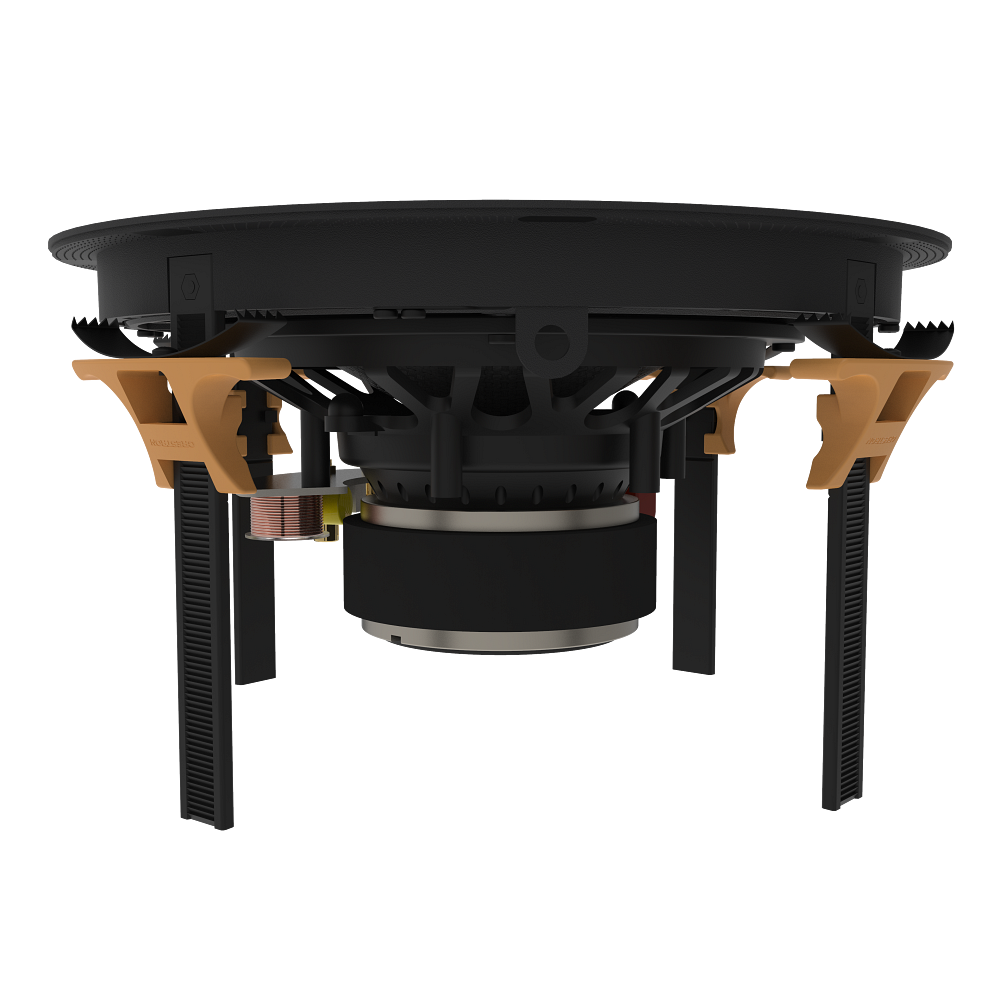

Installation is the part that saves labour. A toolless bayonet mounting system seats the speaker without a screwdriver, the magnetically held bezel grille is paintable electroplated and powder coated steel, and the input is a detachable 2-pin terminal block taking up to 12 AWG. Rated IP66 for particles and water, it belongs equally in a bathroom, a covered patio, or a listening room. Cut-out diameter is 8.75 in.
| Woofer | 6.5 in. (165 mm) carbon fiber |
|---|---|
| Tweeter | 1 in. (25 mm) ceramic-coated aluminum, steerable up to 30 degrees off-axis |
| Crossover | 30 dB/oct at 3.5 kHz |
| Frequency Response | 52 Hz to 30 kHz (+/- 3 dB), 45 Hz to 30 kHz (+/- 10 dB) |
| Power Handling | 150 W program, 300 W peak |
| Impedance and Sensitivity | 8 ohms nominal, 86 dB at 1 W/1 m |
| Ingress Protection | IP66 rated for particles and water |
| Mounting | Toolless bayonet mounting system, recommended cutout 8.75 in. (222 mm) |
| Dimensions | 9.61 in. diameter without grille, 4.13 in. deep, 10.20 in. round grille, 4.8 lb (2.17 kg) |
