Crestron Ultimate IWLCR62 Dual 6.5 in. 2-Way In-Wall LCR Speaker

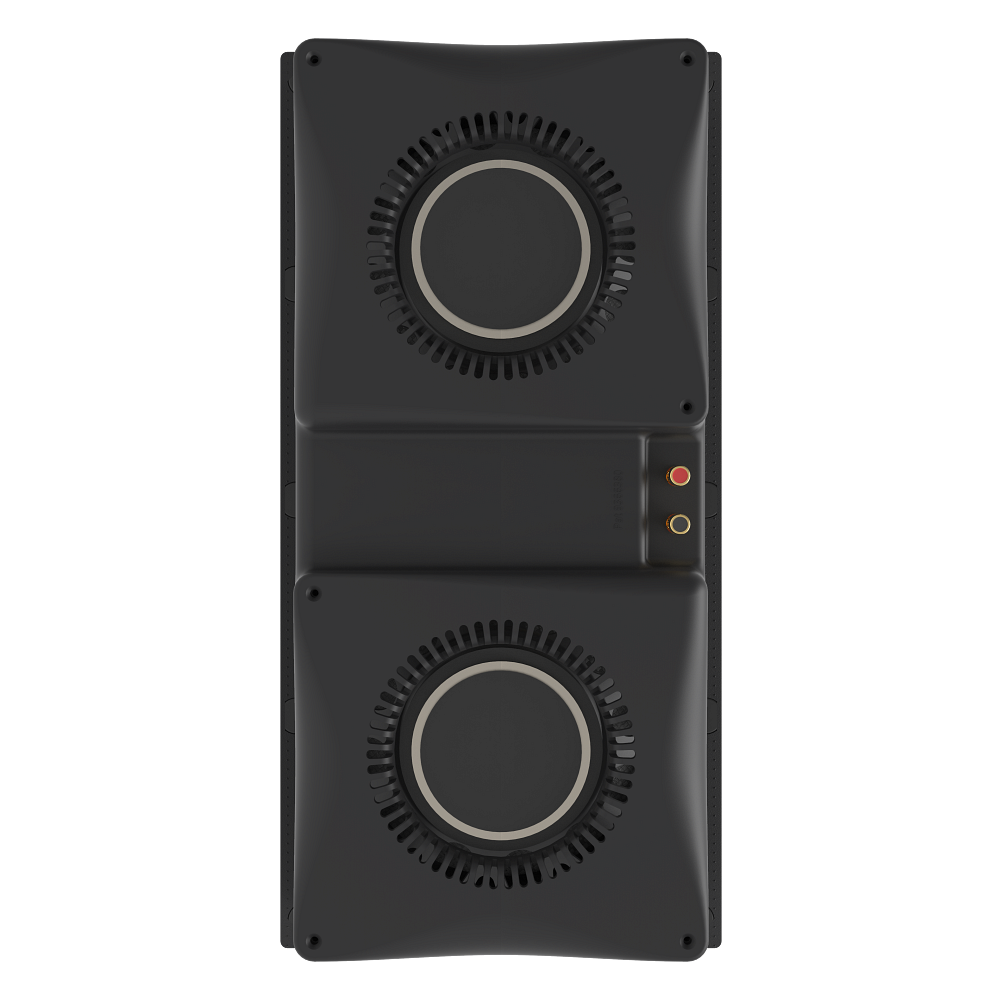

The IWLCR62 is the left, centre, or right channel of an in-wall theatre: dual 6.5 in. carbon fibre woofers flanking a 1 in. ceramic-coated aluminium tweeter in a 15.19 in. by 7.48 in. baffle only 3.74 in. deep, which fits a standard stud bay behind or beside a flat panel display. Response is 39 Hz to 30 kHz at 3 dB with a 30 dB per octave crossover at 3.5 kHz, 8 ohms nominal, 86 dB sensitive, handling 150 W program and 300 W peak.

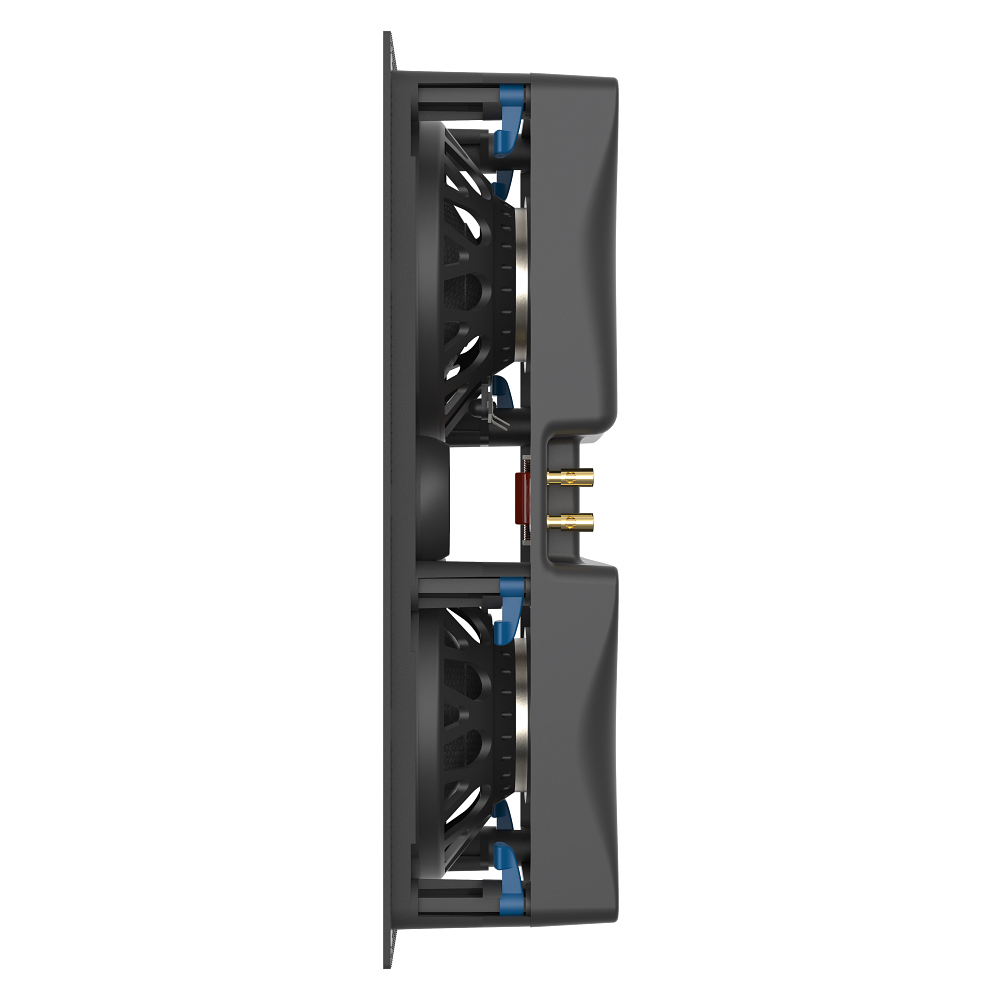

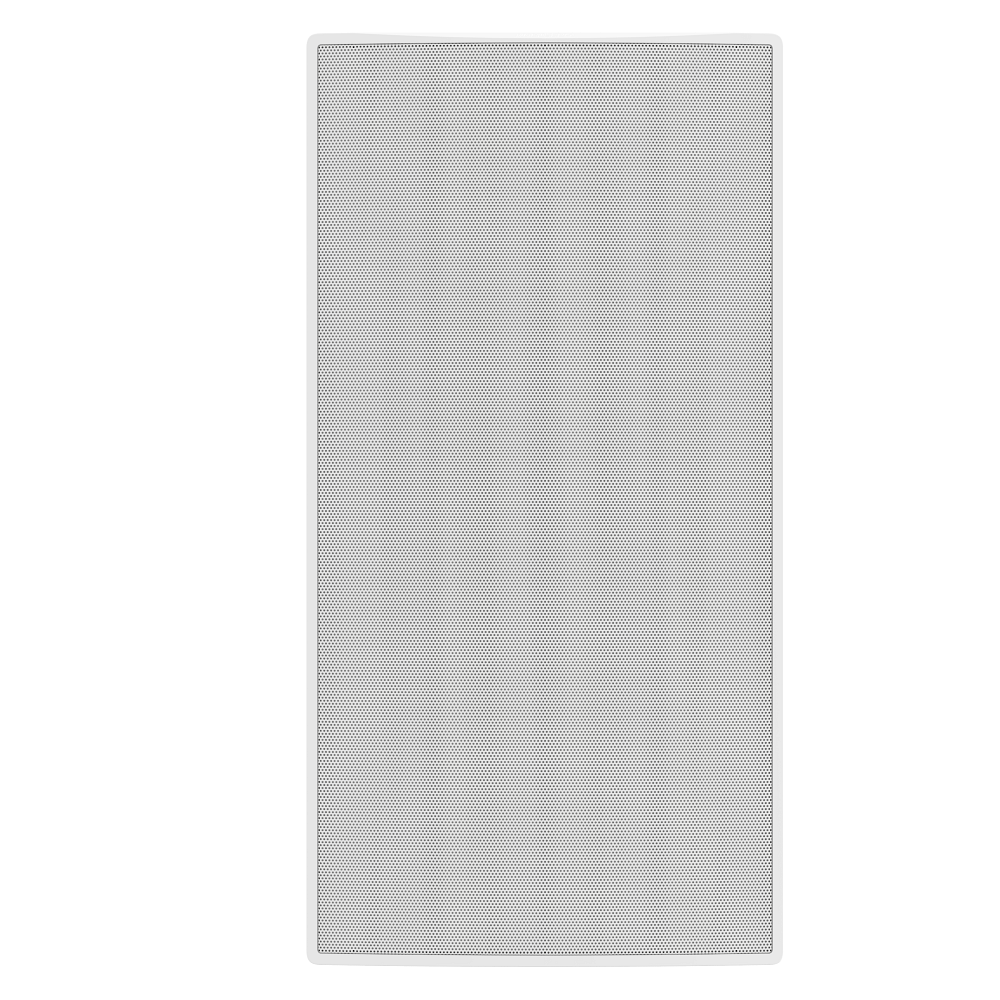

Mounting uses a spring lock system into a 14.33 in. by 6.61 in. cutout, and the grille is a paintable magnetically held electroplated and powder coated steel bezel that finishes flush with the wall. Inputs are two sets of gold-plated spring terminals taking up to 10 AWG.
