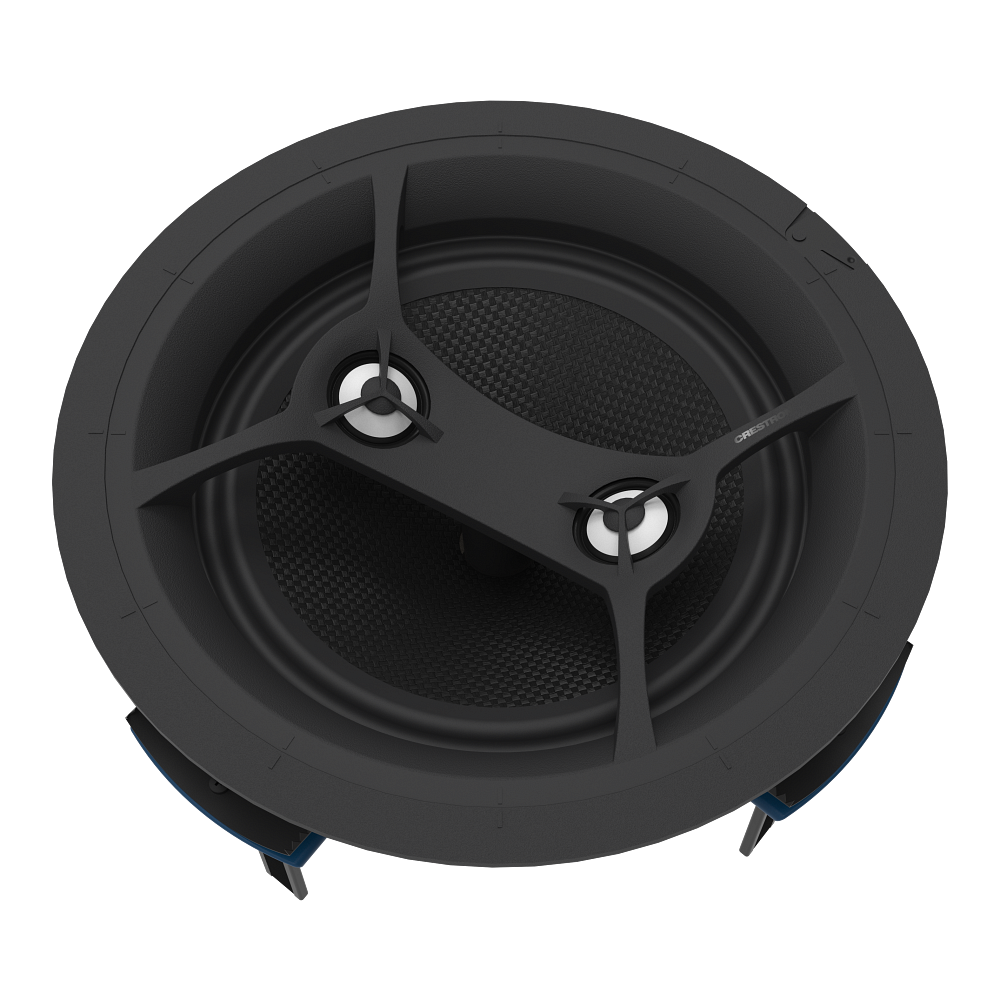

Crestron Ultimate IC8-DT-AW 8 in. Stereo Dual Tweeter All Weather In-Ceiling Speaker
A dual tweeter speaker exists for rooms that only have one place to put a speaker: a hallway, a small bathroom, a walk-in closet. The IC8-DT-AW takes both channels on two separate 2-pin inputs, drives a 1 in. ceramic-coated aluminium dome tweeter from each, and sums them into a shared 8 in. carbon fibre woofer, giving a stereo image from a single 8.66 in. cutout.
The crossover is 30 dB per octave at 3.5 kHz, response runs 38 Hz to 20 kHz at 3 dB, and it handles 150 W program and 300 W peak at 8 ohms nominal and 86 dB sensitivity. Fitting is the same toolless bayonet system used across the range, with a paintable magnetic steel bezel grille and IP66 protection.
| Woofer | 8 in. (203 mm) carbon fiber cone |
|---|---|
| Tweeters | Dual 1 in. (25 mm) ceramic coated aluminum dome |
| Crossover | 30 dB/oct at 3.5 kHz |
| Frequency Response | 38 Hz to 20 kHz (+/- 3 dB), 35 Hz to 30 kHz (+/- 10 dB) |
| Power Handling | 150 W program, 300 W peak |
| Inputs | (2) 2-pin pluggable screw terminals, 12 AWG maximum |
| Impedance and Sensitivity | 8 ohms nominal, 86 dB at 1 W/1 m |
| Ingress Protection | IP66 rated for particles and water |
| Dimensions | 9.61 in. diameter without grille, 4.29 in. deep, 8.66 in. cutout, 5.29 lb (2.39 kg) |
