Crestron Ultimate IGS12T 12 in. In-Ground Subwoofer

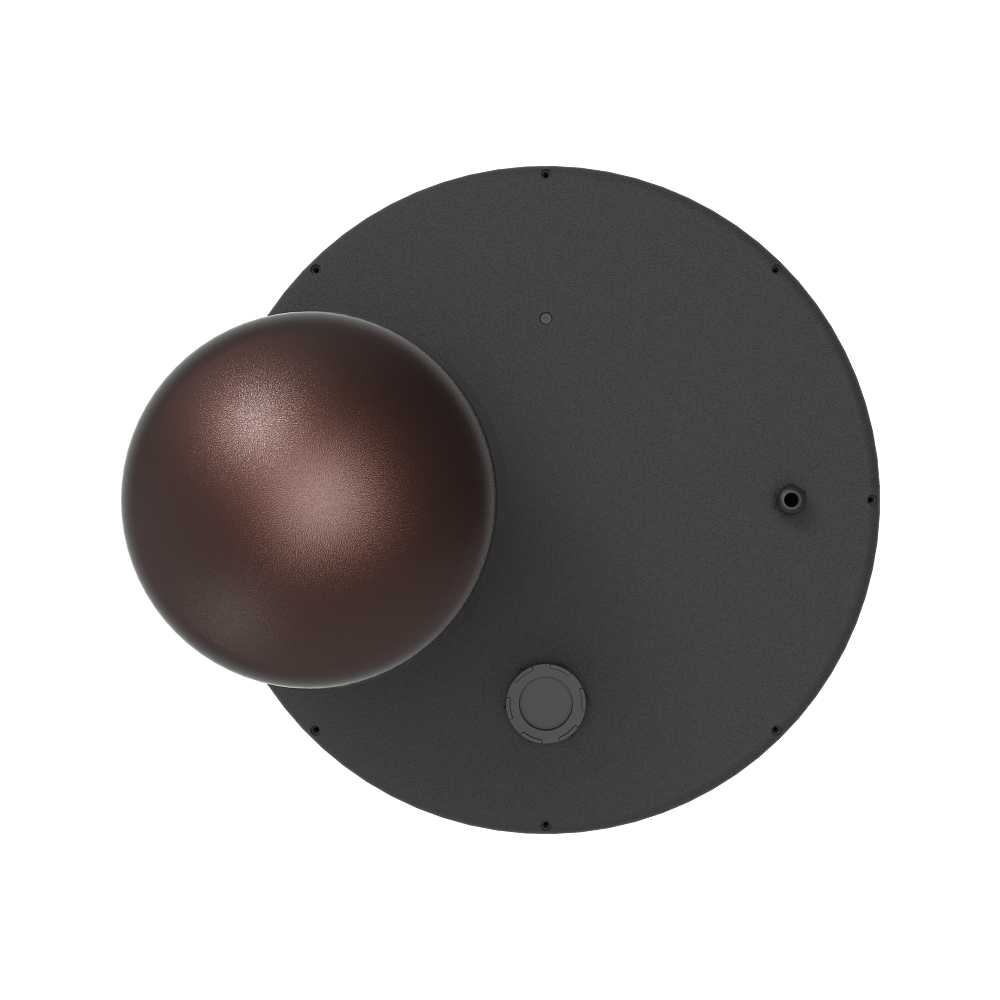

Outdoor audio usually gives up on bass. The IGS12T does not: a 12 in. polypropylene woofer in a rugged poly composite PVC enclosure is buried in the garden bed, with only a dome-shaped port cap showing above ground. Response reaches 23 Hz at 3 dB, and the crossover point sits at 150 Hz so it fills in under satellite speakers on the same run.
It can be driven low impedance at 8 ohms nominal or on a constant voltage line, with transformer taps at 150 W on 70 V and 300 W on 100 V. Power handling is 200 W program and 400 W peak at 86 dB sensitivity. Connection is a 44 in. attached direct-burial speaker wire with a pair of silicone-filled waterproof wire nuts included, and the whole unit is IPX6 waterproof. It weighs 78.15 lb, so plan the hole and the drainage before the delivery arrives.
| Woofer | 12 in. (305 mm) polypropylene |
|---|---|
| Frequency Response | 23 Hz to 100 Hz (+/- 3 dB), crossover point 150 Hz |
| Power Handling | 200 W program, 400 W peak |
| Transformer Taps | 150 W at 70 V, 300 W at 100 V, 8 ohms nominal low impedance |
| Sensitivity | 86 dB at 1 W/1 m |
| Input | (1) 44 in. (1118 mm) attached direct-burial speaker wire with silicone filled waterproof wire nuts |
| Enclosure | Rugged poly composite PVC, direct-burial in soil with good drainage, IPX6 waterproof |

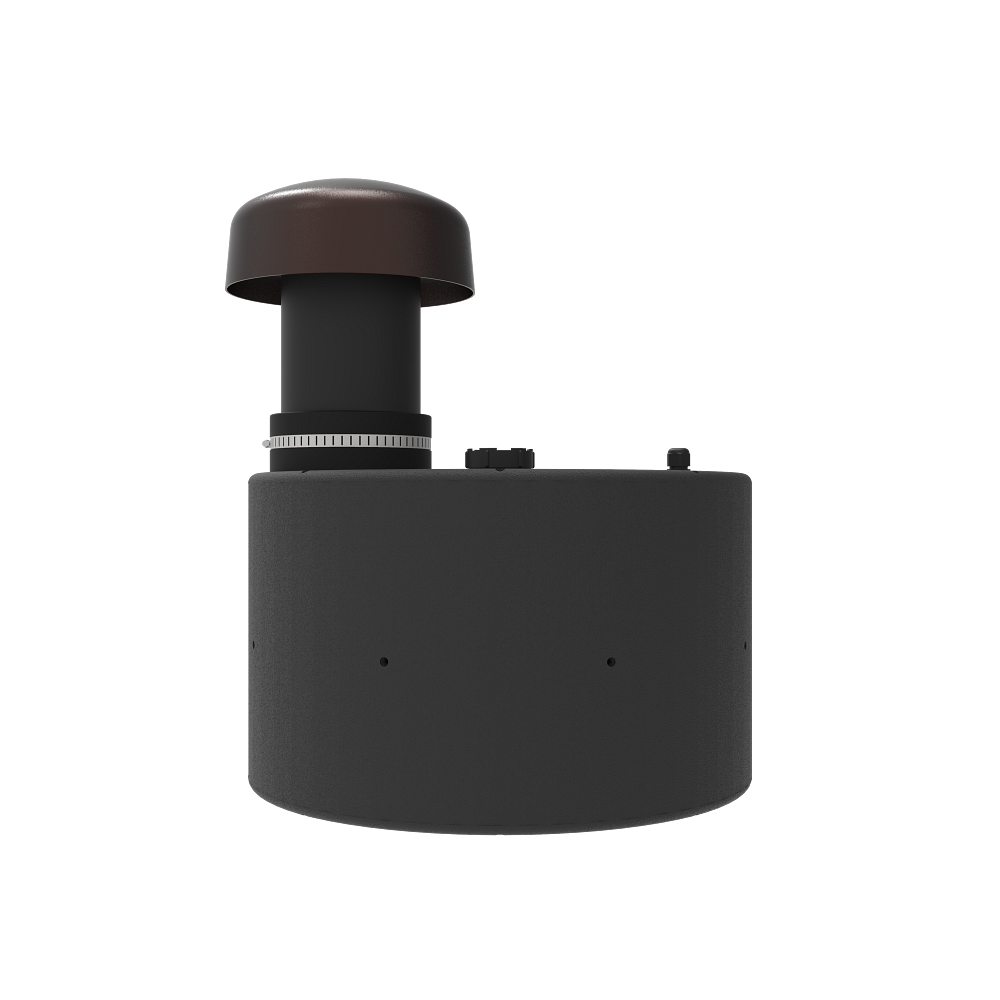

| Dimensions | 23.57 in. H with port tube and cap (12.05 in. without) x 19.69 in. W, 78.15 lb (35.44 kg) |
