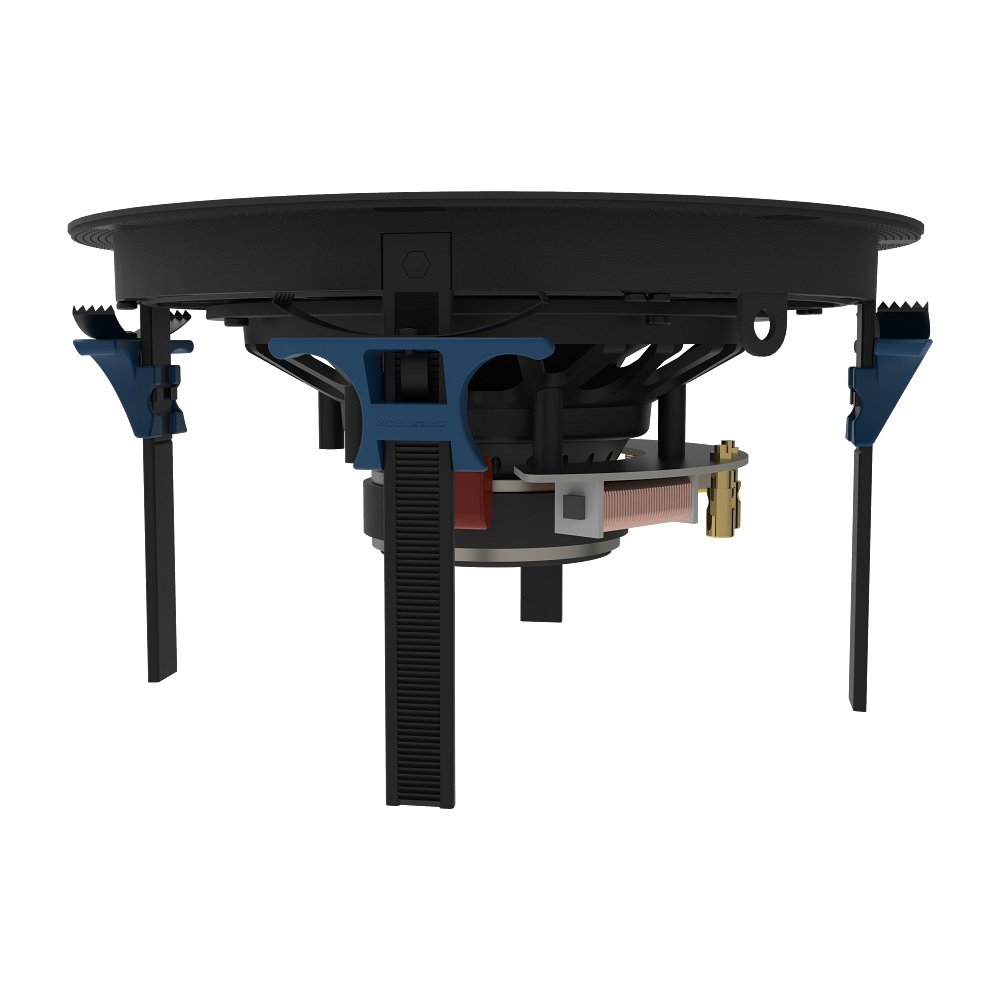

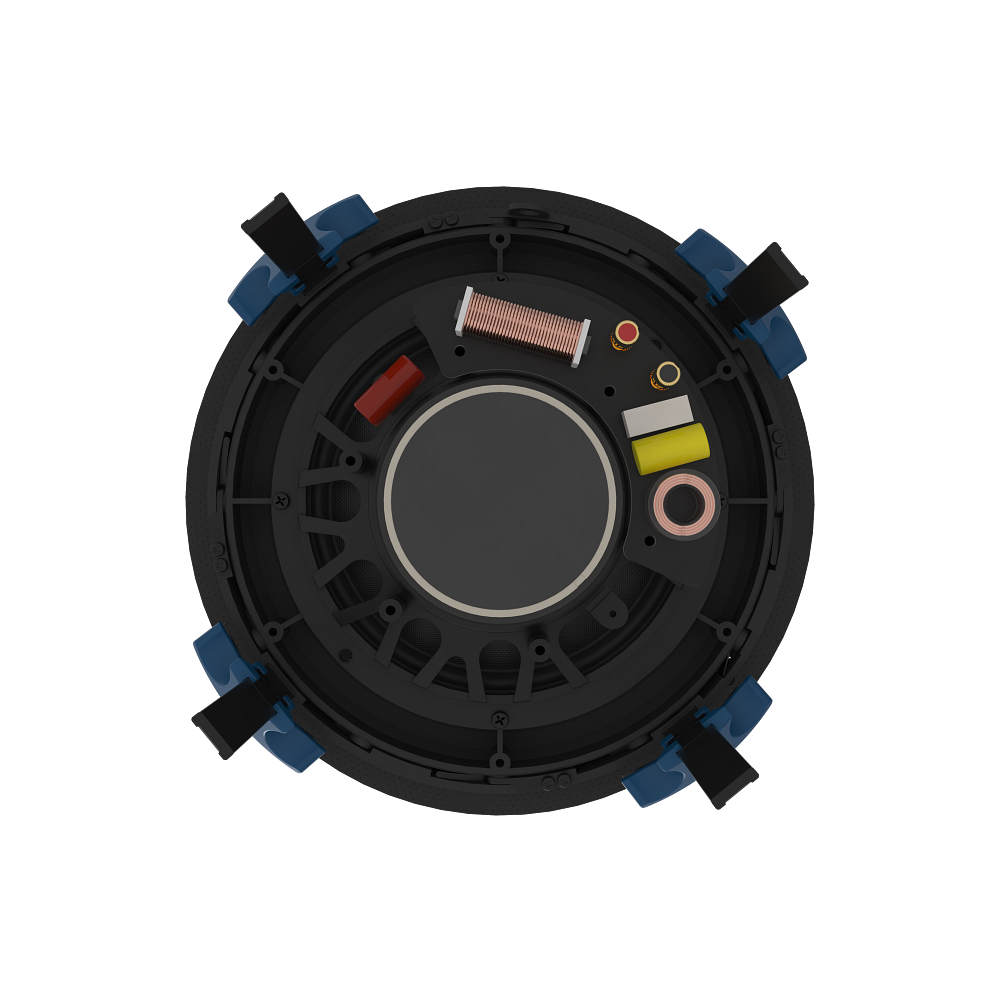

Crestron Reference IC6 6.5 in. 2-Way In-Ceiling Speaker, White Textured
The Reference IC6 is the 6.5 in. two-way in the line Origin Acoustics builds for Crestron, aimed at rooms where the ceiling has to disappear and the sound cannot. A woven glass fiber woofer crosses at 3 kHz to a 1 in. silk dome that pivots up to 30 degrees off axis, so a speaker placed by the joists can still be aimed at the seating. Nominal impedance is 8 ohms and it takes 100 W program, 200 W peak.

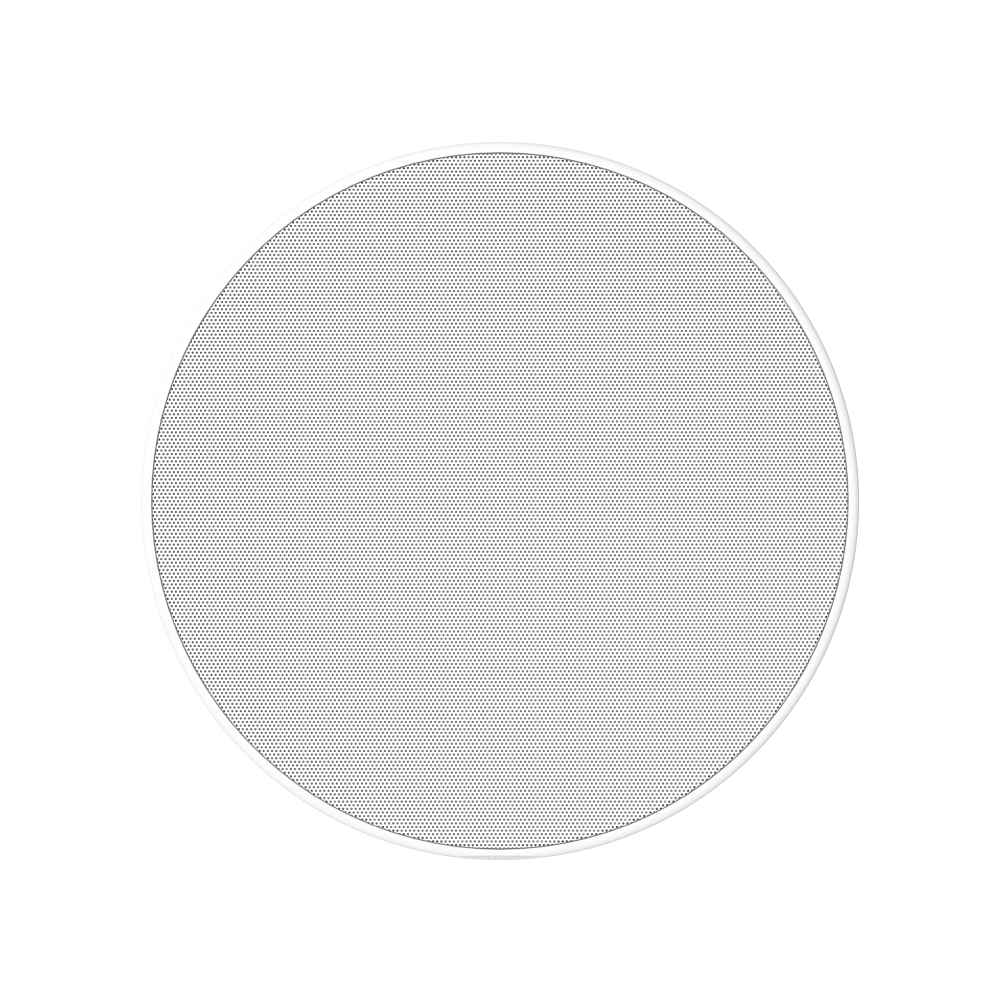

It ships with a round grille on a white plastic bezel; square and aluminum grilles are separate SPKA-GRILLE parts. Input is a pair of gold-plated spring terminals taking up to 10 AWG. Sold as a single speaker, not a pair.
| Features & Performance - Woofer | 6.5 in. (165 mm) woven glass fiber |
|---|---|
| Features & Performance - Tweeter | 1 in. (25 mm) Silk DPSD; Steerable up to 30 off-axis |
| Features & Performance - Crossover Point | 3 kHz |
| Features & Performance - Impedance | 8 Ohms nominal |
| Features & Performance - Frequency Response | 60 Hz to 20 kHz (+/-3 dB) |
| Features & Performance - Power Handling | Program: 100 W; Peak: 200 W |
| Features & Performance - Sensitivity | 87 dB @ 1 W/1 M |
| Connections - Input | (2) Gold-plated spring terminals |
