Crestron MPB4-201-B 4-Series Media Presentation Button Panel 201

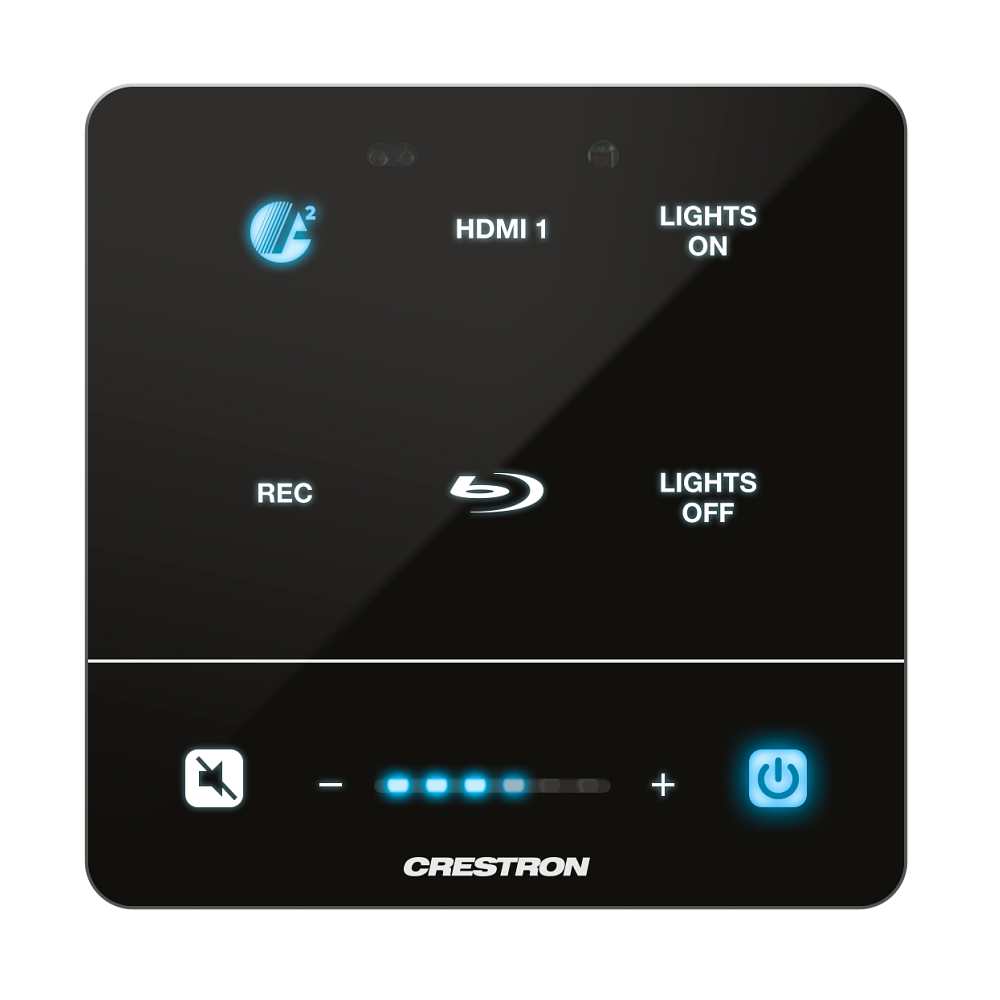

The MPB4-201-B is the button panel version of the MPC4-201: the same room-control surface, without the on-board control processor, driven instead by a separate 4-Series system. Six projected capacitive buttons carry any of 25 prelabeled icon chips or five blackout chips, all included, with custom laser-etched chips available separately. A mute button, plus and minus volume buttons, a blue multisegment volume bargraph and a power button complete the layout, and every capacitive button is programmable.

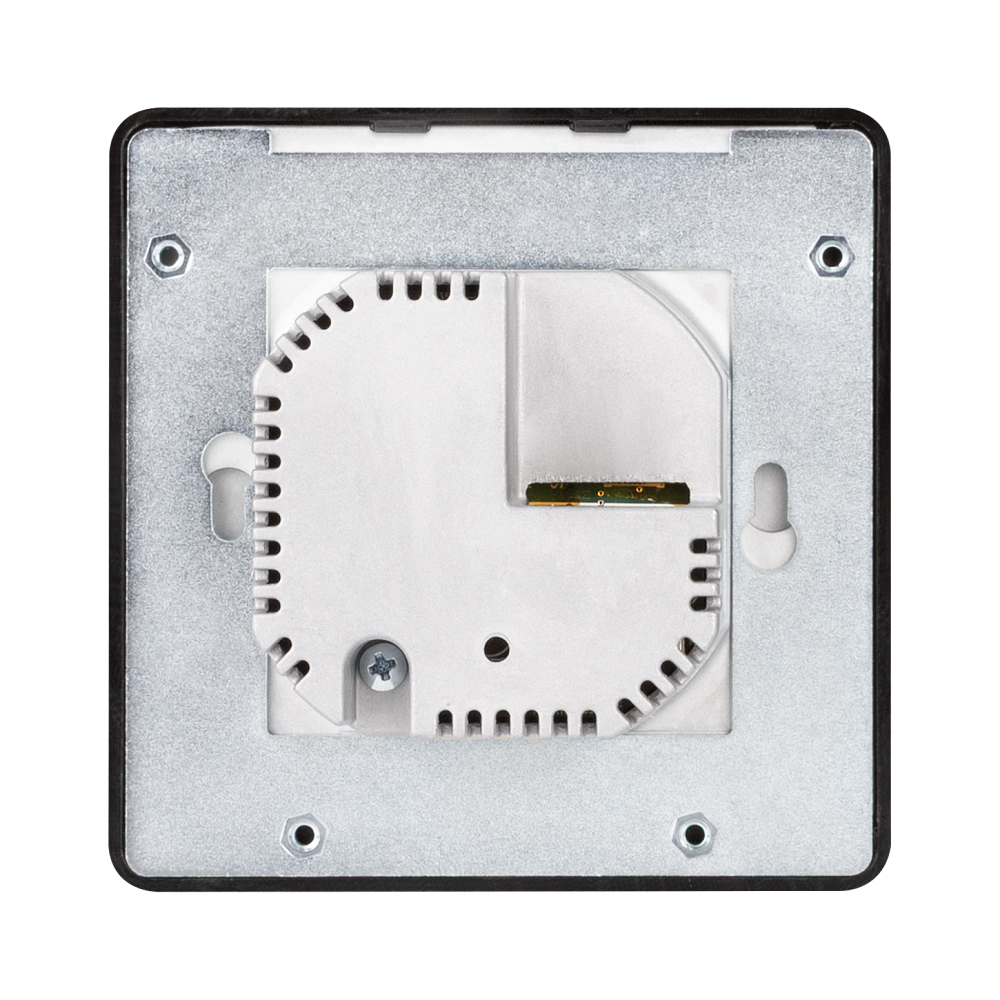

A 940 nm laser ranging proximity sensor adjustable from 8 to 35 in wakes the panel as somebody approaches, and a photosensor drives three levels of automatic backlight brightness; buttons light white when inactive and blue when active. Power and data both come over one gigabit PoE connection. The panel flush mounts in a 1-gang European DIN 49073 box, in a 2-gang U.S. box with the MPC3-101/102/201-RMB retrofit bracket, or in a 2-1/16 in square lectern cutout with the bracket provided. A security screw is included, and the MPC3/MPB3-TTK-SQR-B tabletop kit makes it freestanding.
| Buttons | (6) projected capacitive assignable buttons; 25 prelabeled icon chips and 5 blackout chips included |
|---|---|
| Additional Controls | Mute, volume up and down, power; blue LED multisegment volume bargraph |
| Proximity Sensor | Eye-safe 940 nm laser ranging sensor, adjustable 8 to 35 in (20 to 90 cm) |
| Illumination | Individually backlit white when inactive, blue when active; photosensor autobrightness in three levels |

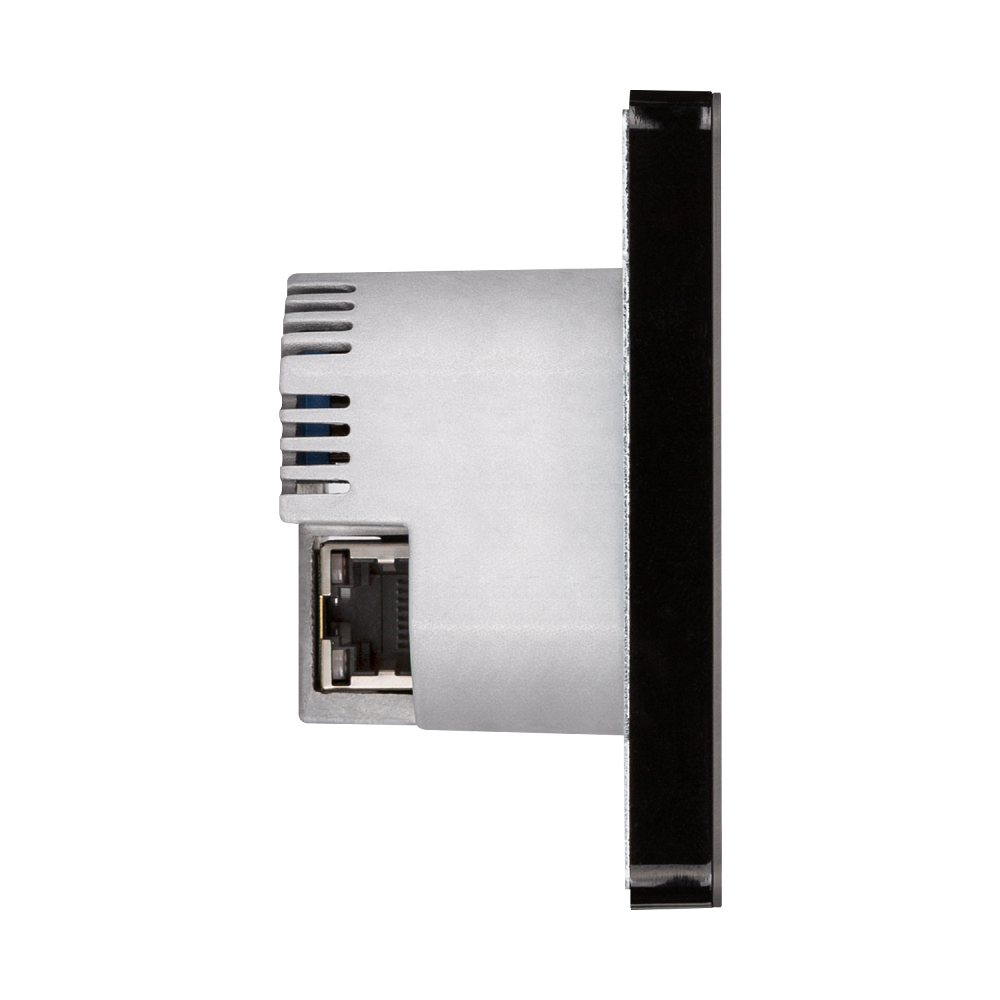

| Ethernet | (1) 1000BASE-TX RJ-45, PoE and PoE+ powered device; 802.1X, SNMP, BACnet/IP, XiO Cloud client |
| Power | IEEE 802.3at Type 1 (802.3af compatible) Class 0 PoE; 3 W typical |
| Mounting | 1-gang European DIN 49073 box; 2-gang U.S. box with MPC3-101/102/201-RMB; lectern cutout 2-1/16 in square |
| Dimensions | 3.42 in H x 3.42 in W x 1.87 in D (87 x 87 x 48 mm); 7.3 oz (208 g) |
