Crestron CLWI-SWEX In-Wall Switch, 230 VAC
Where a circuit does not need dimming, the CLWI-SWEX puts it on the Crestron network anyway. It switches up to 2 Amps of incandescent, tungsten-halogen, magnetic and electronic low-voltage, CFL, fluorescent, and LED load on 230 Volts, and reports state back through infiNET EX so a scene, a schedule, or an away mode can act on it. Screw-clamp connectors and a slim body that fits a 35 mm square or round box keep the install short.

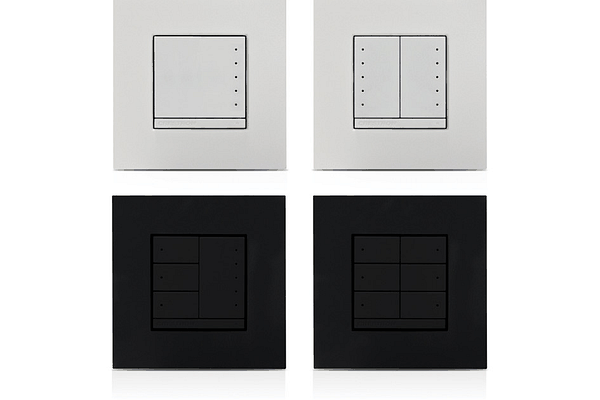

Buttons are field-replaceable and engravable, so what the station does can change long after it was installed. Snap-on fittings need no tools, and the face configures as one large rocker, up to two adjacent half-size rockers, or a triple button pad, up to six positions in all. Each unit ships with a full assortment of blank buttons. Because it sits on the Crestron network it also works as a keypad, sending scene and audio commands rather than only driving its own load. A faceplate is not included; the FP-INTENSE and FP-PURE ranges cover it in 18 colors and finishes up to five gang.
| Type | In-wall switch, 230 Volt, infiNET EX wireless |
|---|---|
| Load Types | Incandescent, tungsten-halogen, magnetic low-voltage, CFL, fluorescent, electronic low-voltage, LED |
| Load Rating | 2 Amps/AX maximum |
| Power Requirements | 220-240 Volts AC, 50/60 Hz, line power |
| Wireless | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26 (2400 to 2483.5 MHz), IEEE 802.15.4 compliant; requires an infiNET EX gateway |
| Buttons | Configurable for one rocker, or any combination of up to two small rockers and two three-button pads; six button positions maximum; each press programmable for three discrete functions via click, double click, and hold |
| Feedback | Up to 10 white LEDs, depending on button configuration |
| Connections | Hot, Neutral, Load, and Ground screw terminals, 14-12 AWG |
| Mounting | 1-gang, 35 mm deep square or round electrical box; gangable horizontally and vertically |
| Faceplate | Not included; requires an FP-INTENSE or FP-PURE faceplate, sold separately |
| Environmental | 32 to 104 degrees F (0 to 40 degrees C), 10% to 90% RH non-condensing |
