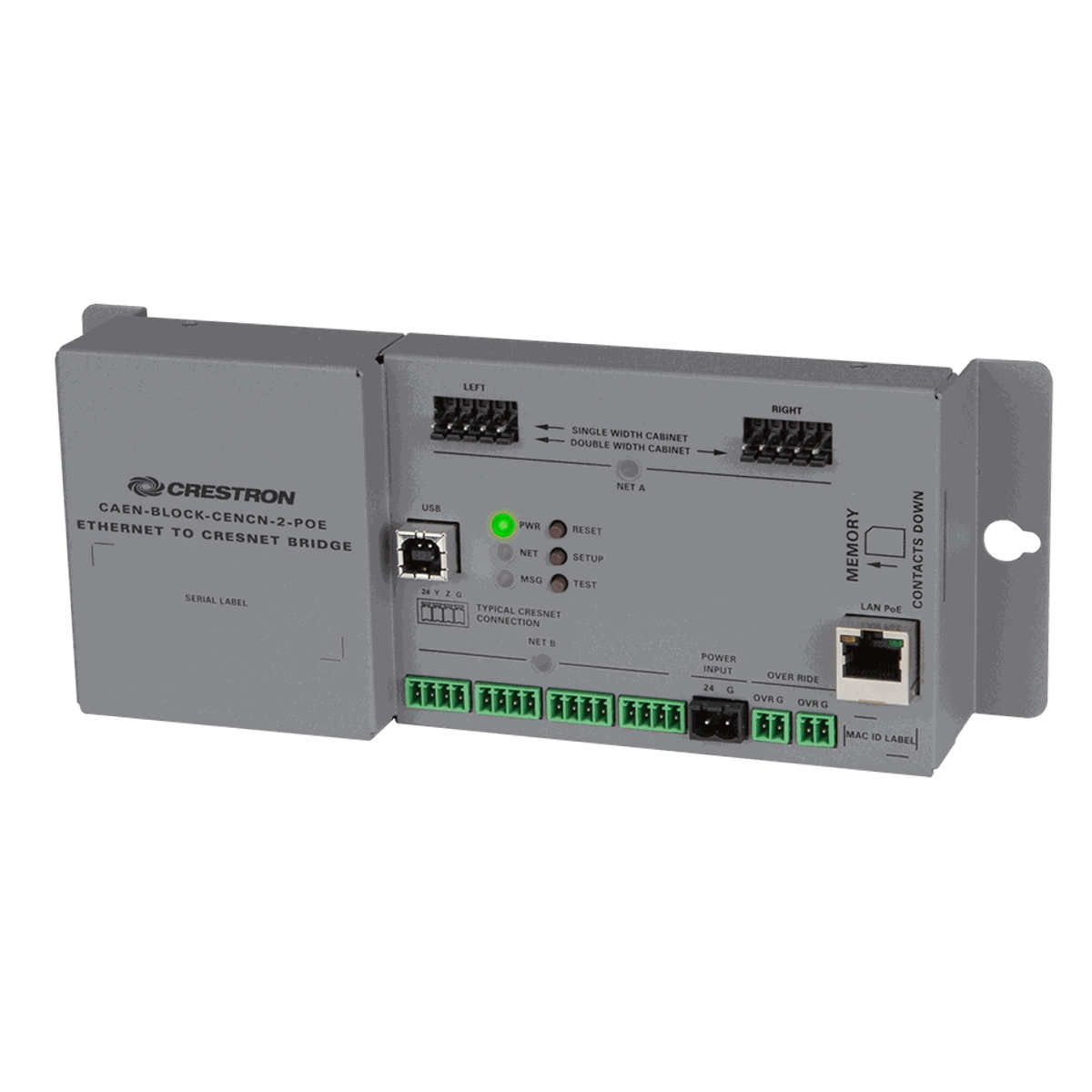

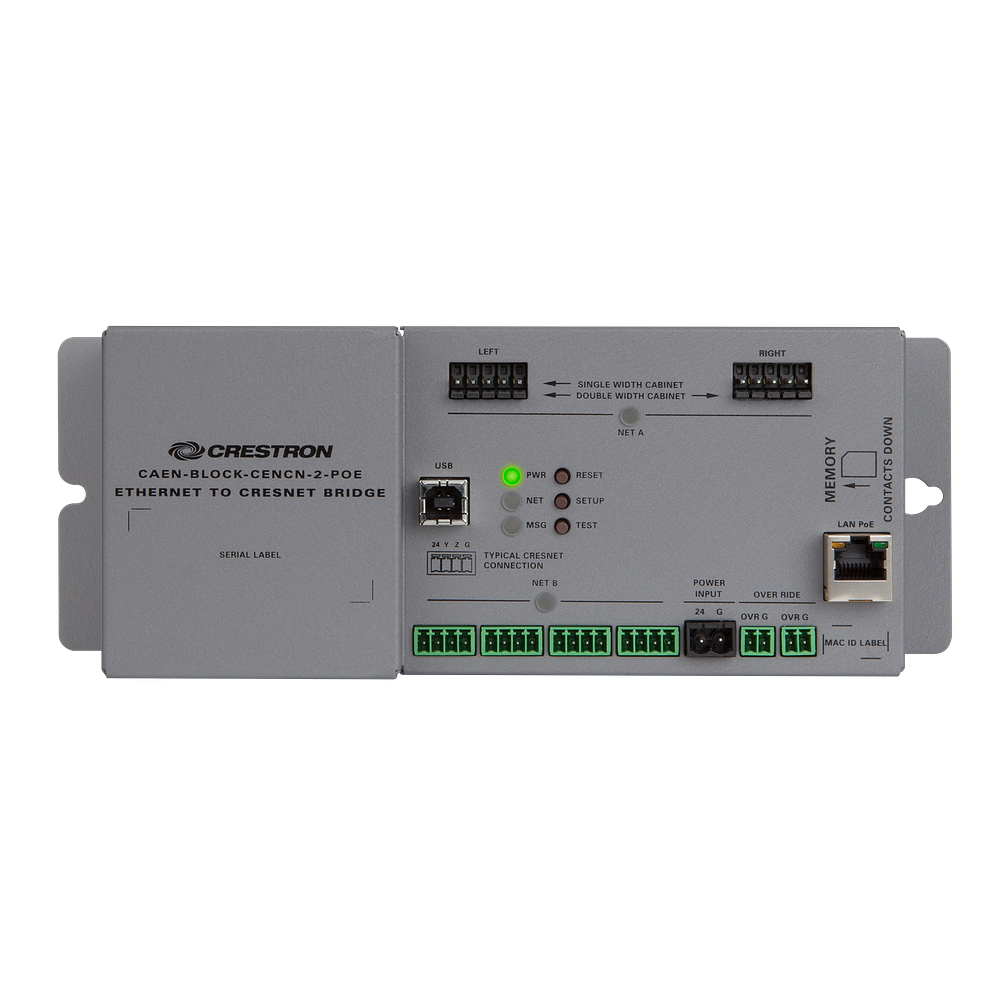

Crestron CAEN-BLOCK-CENCN-2-POE Ethernet to Cresnet Bridge
The CAEN-BLOCK-CENCN-2-POE replaces the plain termination block when the lighting enclosure needs to be on the network rather than on a Cresnet home run. One 802.3at PoE+ port carries both the data and the power, and the bridge presents two separate Cresnet subnets in server mode so a large panel can be split without adding hardware.
A front-panel USB 2.0 device port handles console setup, and an SD or SDHC card slot stores log files locally, which is worth having when a lighting fault has to be reconstructed after the fact. Two 5-pin headers connect the CLX Series modules on either side; interconnect cables are included.
| Ethernet | 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP, web server, IEEE 802.3at compliant |
|---|---|
| Cresnet | Cresnet server mode with two separate subnets |
| LAN PoE | (1) 8-pin RJ45 female, 100BASE-TX, PoE+ PD port |
| USB | (1) USB Type-B female, USB 2.0 computer console port, for setup only |
| Memory Card | (1) SD memory card slot, accepts one SD or SDHC card for log file storage |
| NET A LEFT / RIGHT | (2) 5-pin 0.156 in. headers, Cresnet/Override interconnect ports for CLX-series modules; interconnect cables included |
