Crestron CLX-4HSW4 4-Channel High-Inrush Switch Module, 4 Feeds, 120V
Non-dimmable loads are hard on relays, and the CLX-4HSW4 is the CLX module built for them. Each of its four channels has its own 120 Volt feed and switches 16 Amps or half a horsepower, taking the inrush of LED drivers, fluorescent and HID ballasts, low-voltage transformers, neon and cold cathode, and motors. Four separate feeds give a 64 Amp module total and let one module serve four unrelated circuits.

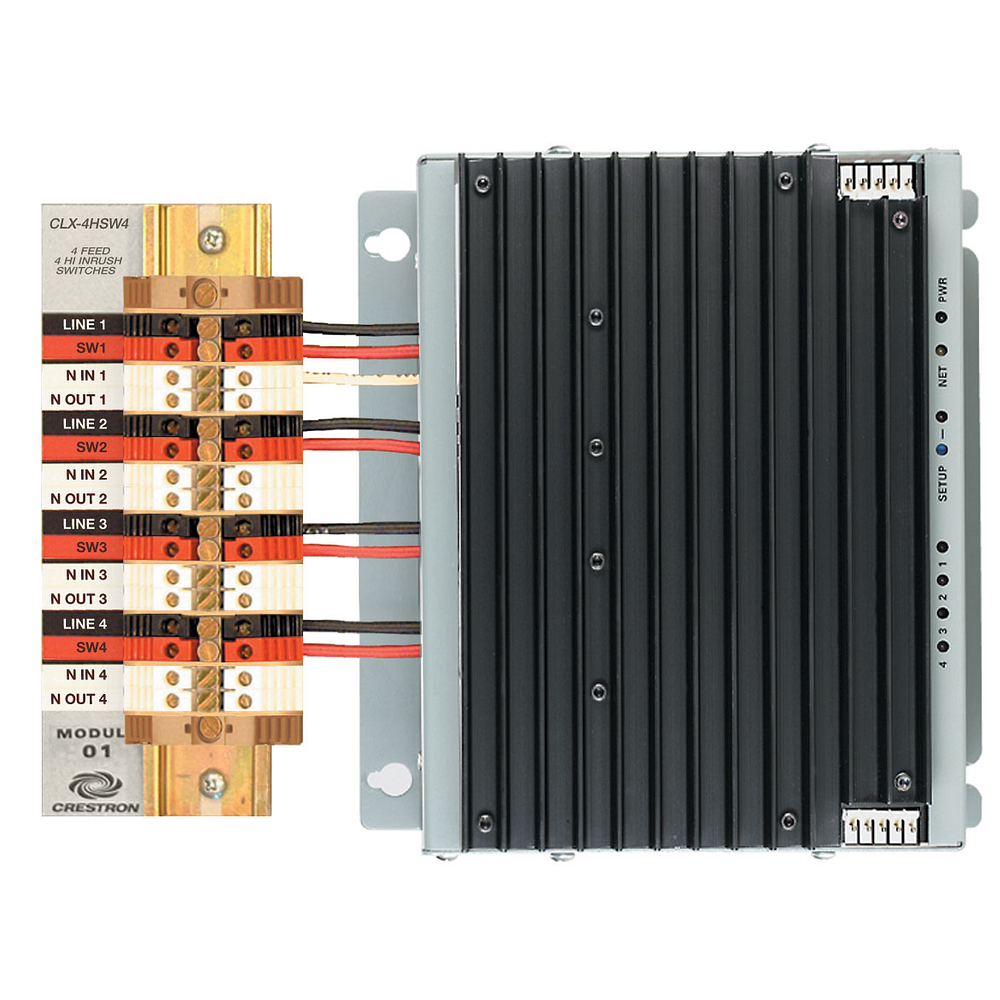

CLX modules mount in a Crestron CAEN or CAEN-MLO wall enclosure and bus their low-voltage control between one another on a five-wire link, terminating at a CAEN-BLOCK at the bottom of the cabinet, which is what keeps a large centralized system to one Cresnet drop. High-voltage wiring lands on a separate CLT terminal block, sold separately, so the electrician can terminate the feeders before the module is ever fitted.
| Type | 4-channel high-inrush switching module, four feeds |
|---|---|
| Switched Load Types | LED, incandescent, fluorescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, high-intensity discharge (HID), motor |
| Load Rating | 16 Amps, 1/2 HP per channel; 64 Amps per module |
| Line/Load Voltage | 120 Volts AC, 60 Hz; up to four single-phase feeds |
| Connections | Via a CLT terminal block, sold separately; each terminal accepts one 14-10 AWG wire |
| Module Interconnect | (2) 5-pin 0.156 inch headers, Cresnet and override ports; interconnect jumpers included |
| Communications | Cresnet, via the module interconnect and a CAEN-BLOCK, sold separately |
| Enclosure | Occupies one module space in a CAEN or CAEN-MLO wall mount automation enclosure |
| Environmental | 32 to 104 degrees F (0 to 40 degrees C), 10% to 90% RH non-condensing |
