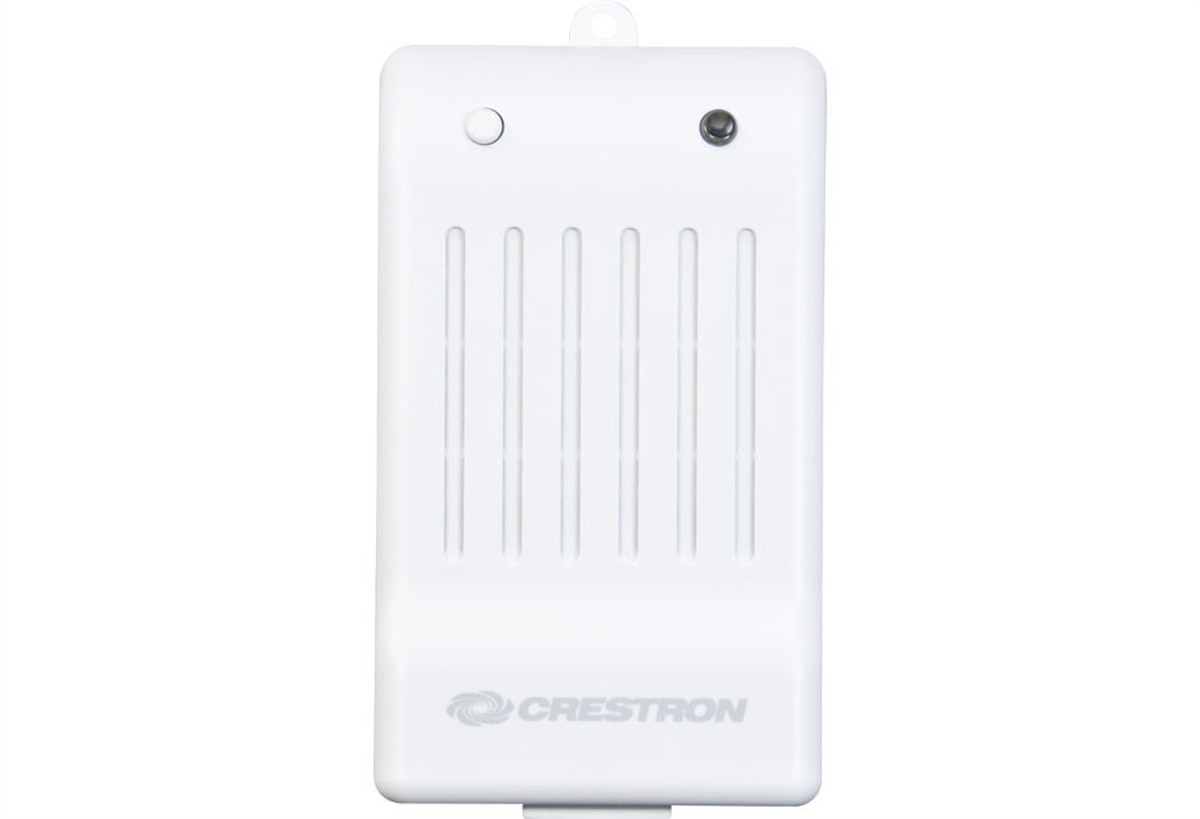

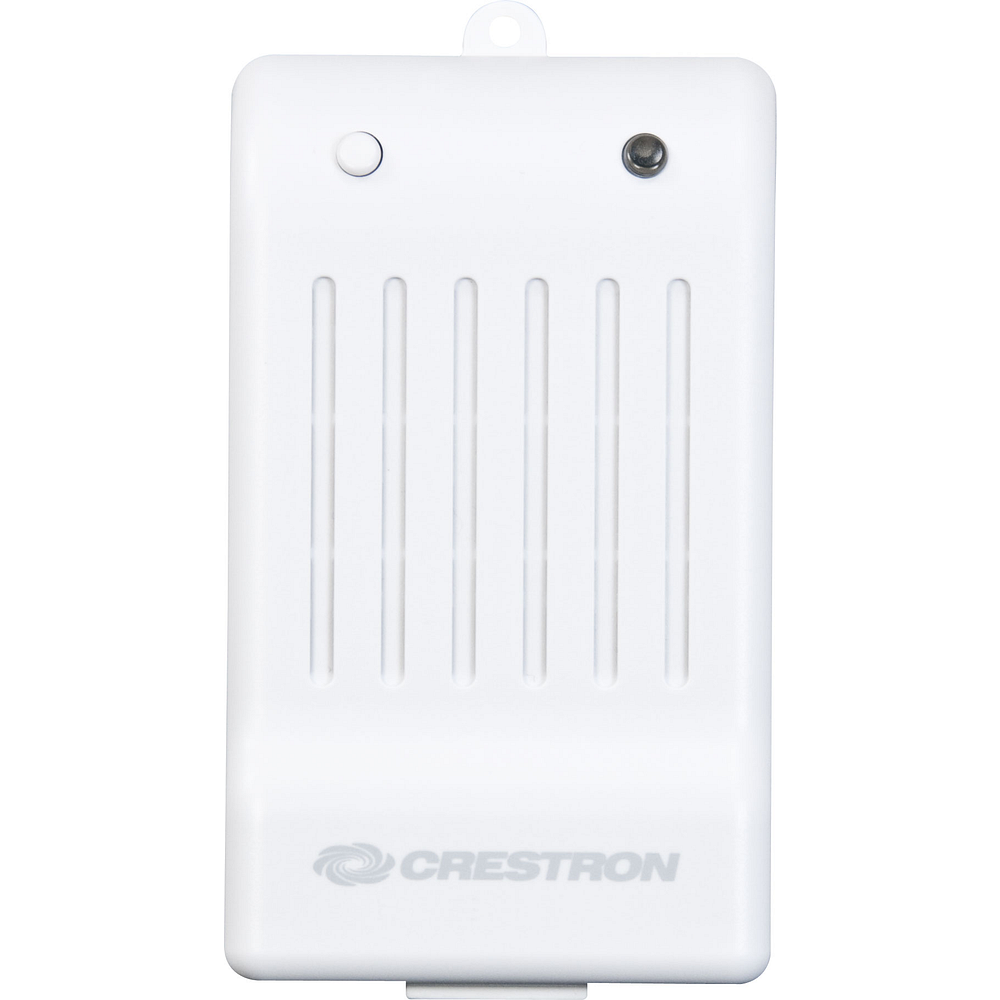

Crestron CLW-LSWEX-2GD-W-T Dual-Channel Wireless Lamp Switch
The CLW-LSWEX-2GD-W-T switches two lamps on and off from a Crestron system without any control wiring: it plugs into a standard 120V outlet and joins the infiNET EX network. Use it where the load must not be dimmed, or where a lamp is on a circuit no wall switch reaches. Each channel carries a pushbutton with a green LED for local on, off, and setup. This is the ground-pin-down, white textured version.
infiNET EX is a 2.4 GHz mesh: every mains-powered device on it repeats for every other, so each unit added extends the network rather than loading it, and Dynamic Frequency Allocation keeps moving the network off channels that cordless phones, microwaves, and neighbouring Wi-Fi are sitting on. Up to 100 infiNET EX devices share one network, and a gateway is required and sold separately. Each channel handles 600 watts of incandescent or tungsten-halogen load, or 600 VA / 450 watts magnetic low voltage.
| Type | Plug-in two-channel lamp switch |
|---|---|
| Load Rating | 600 W total incandescent / tungsten-halogen; 600 VA / 450 W magnetic low voltage |
| Wireless | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26, IEEE 802.15.4 compliant |
| Range | 150 ft (46 m) indoor, 250 ft (76 m) outdoor to nearest mesh network device |
| Controls | (1) pushbutton per channel with green LED for load on/off and setup |
| Connector | (1) grounded AC plug, ground pin down |
| Power | 120 Volts AC, 60 Hz |
| Dimensions | 5.38 in H x 3.13 in W x 1.75 in D (137 x 80 x 45 mm) |
| Weight | 7.8 oz (220 g) |
