Crestron CLWI-1SW2EX In-Wall 2-Channel Switch, 230VAC
The CLWI-1SW2EX switches two independent 230V loads from one gang and joins a Crestron system over infiNET EX, so it drops into new build or retrofit without a control run back to the rack. The bathroom light and its extractor fan on one plate is the case it was designed for. Screw-clamp terminals take 14-12 AWG on hot, neutral, both loads, and ground, and the body is slim enough for a 35 mm deep square box.

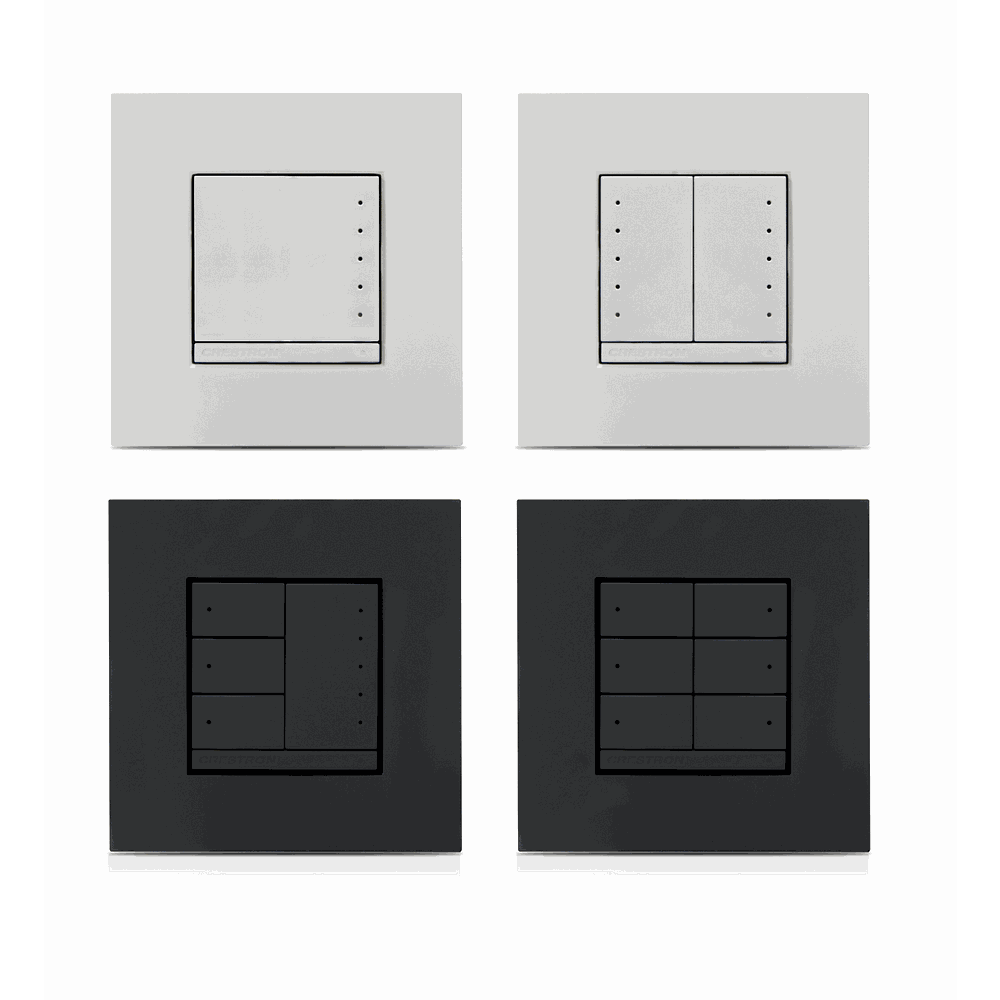

Because it sits on the Crestron network it also works as a keypad: up to six buttons, each configurable for three discrete actions on single click, double click, and hold, driving whole-room scenes or audio rather than just its own loads. Buttons snap on and off by hand with no tools, in one large rocker or any mix of up to two small rockers and a three-button pad, and a full set of blanks is in the box. A faceplate is required and not included. Stocked in white and anthracite.
| Type | In-wall 2-channel switch and keypad, 230V |
|---|---|
| Load Types | Incandescent, tungsten-halogen, magnetic low voltage, CFL, fluorescent, electronic low voltage, LED |
| Maximum Load | 2 Amps/AX per channel |
| Buttons | Up to 6; one large rocker, or up to two small rockers and/or a three-button pad |
| Feedback | Up to (10) white LEDs, depending on button configuration |
| Wireless | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26, IEEE 802.15.4 compliant |
| Connections | (1) hot, (1) neutral, (2) load, 14-12 AWG screw terminals; (1) ground screw post |
| Power | 220-240 Volts AC, 50/60 Hz, line power |
| Enclosure | 1-gang, 35 mm deep square or round box; gangable; faceplate not included |
| Dimensions | 2.80 in H x 2.89 in W x 1.24 in D (72 x 74 x 32 mm) |
