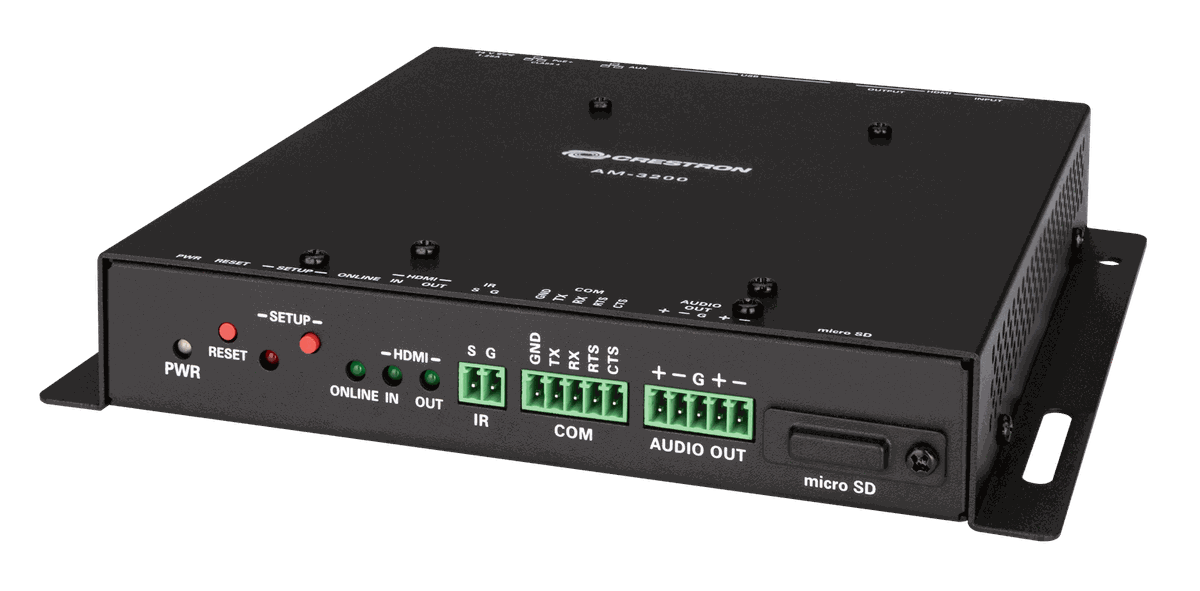

Crestron AM-3200 AirMedia Presentation System

The AirMedia Receiver 3200 (AM-3200) is the Series 3 room system that combines wireless presentation with wired sources and built-in display control. Like the AM-3100-WF it mounts behind or beside a wall display and drives it over HDMI at up to 4K, and its USB ports feed a room camera, speakerphone, or touch panel back to a connected laptop for BYOD video conferencing. Where it goes further is a full set of integration interfaces for a self-contained meeting room.

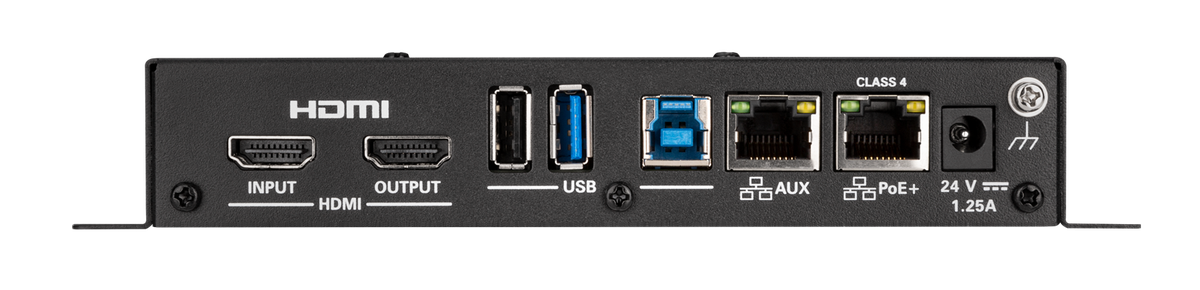

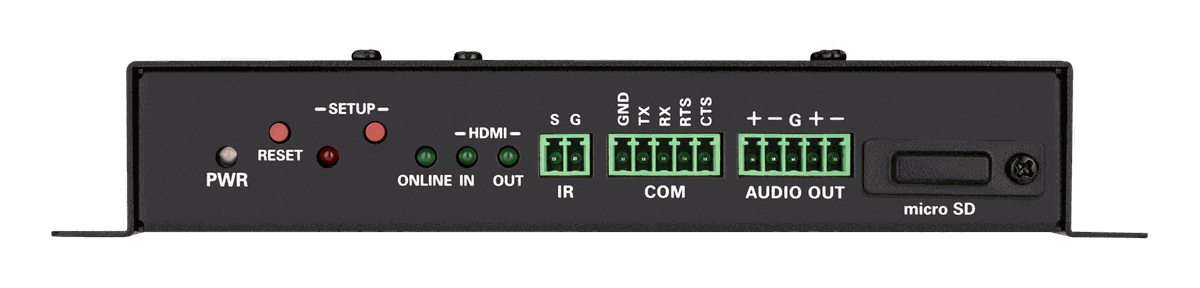

The AM-3200 adds an HDMI input for a wired local source, a balanced/unbalanced audio output for interfacing to room audio, dual LAN ports for separating corporate and guest traffic, and RS-232 and IR ports for automated display power and input control. The base AM-3200 relies on an external Wi-Fi access point for wireless connectivity; the AM-3200-WF variant integrates its own dual-band radio. It is powered by PoE+ or an optional 24V power pack.

Video Output	Up to 3840x2160@60Hz (4K60)
HDMI	(1) HDMI Type A input and output; input up to 1920x1080@60Hz
USB	(2) USB Type A host (USB 2.0 + USB 3.0); (1) USB Type B device (USB 3.0)
Audio Output	5-pin 3.5 mm detachable terminal block, balanced/unbalanced stereo line-level
Network	(2) RJ-45 LAN (dual LAN, one PoE+); external Wi-Fi access point required
Display Control	RS-232 up to 115.2k baud; IR output
Power	PoE+ (IEEE 802.3at Class 4) or optional 24VDC power pack; 14 W typical

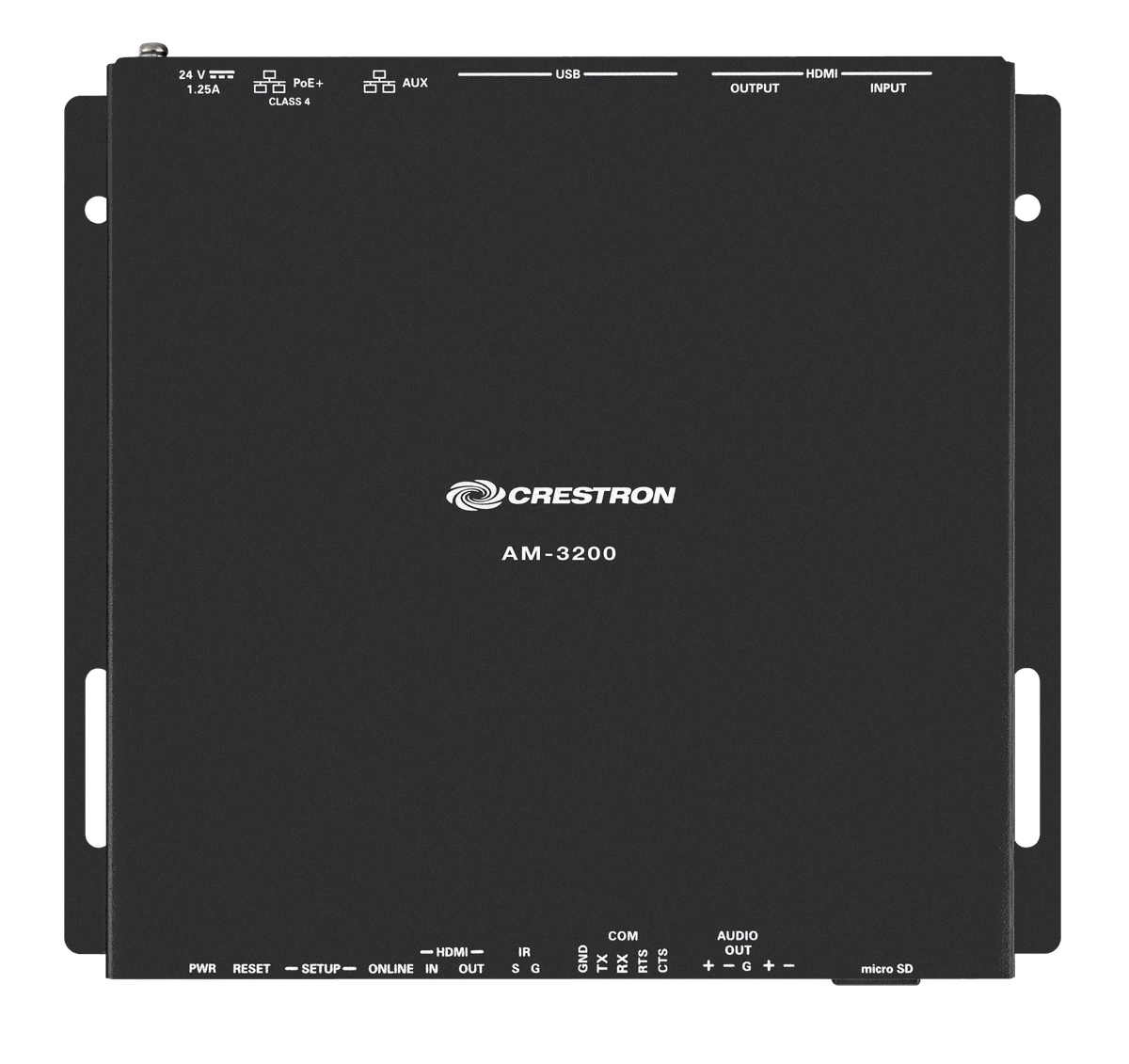

Dimensions	1.26 in. H x 7.40 in. W x 6.93 in. D
Weight	1.9 lb
