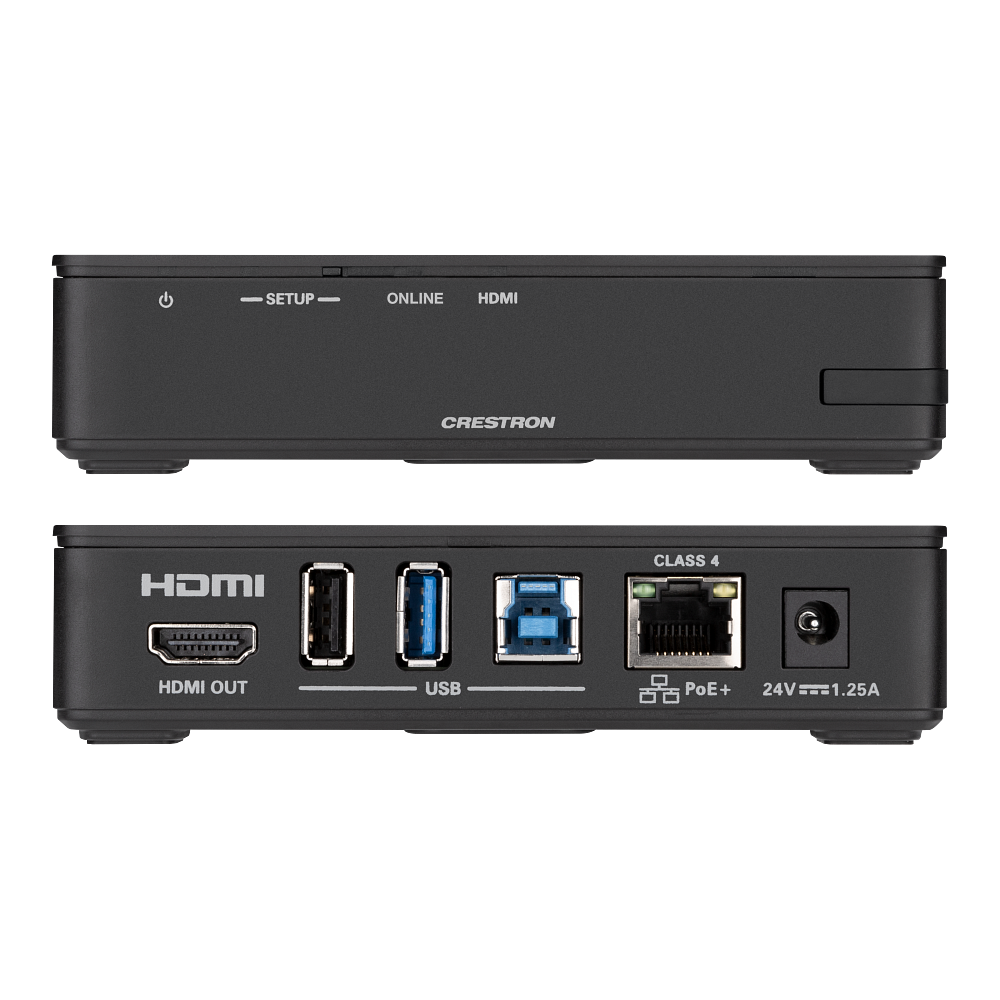

Crestron AM-3000-WF AirMedia Receiver 3000
The AirMedia Receiver 3000 turns a display into a shared room resource. It hides behind or beside the screen, and people present from a laptop, phone, tablet, or an AirMedia Connect adaptor without a cable at the table. Built-in dual-band Wi-Fi lets it link directly with Connect adaptors, while gigabit Ethernet ties it to the managed network for provisioning through the XiO Cloud service.
AirMedia Canvas shows up to four sources at once from the AirMedia applications, Apple Screen Mirroring, or the Chrome extension, and up to three when presenting over Miracast or with Connect devices. The single HDMI output scales everything to one chosen resolution up to 3840x2160 at 60 Hz. The AM-3000-WF-I is the same receiver in its international version.
| Wireless | IEEE 802.11 b/g/n/ac/ax, 2.4 GHz or 5 GHz |
|---|---|
| Ethernet | 100/1000 Mbps, 802.3at compliant, TLS, SSH, IEEE 802.1x, Active Directory authentication |
| Bluetooth | Version 5.0 |
| Output Signal Type | HDMI (DVI compatible), HDCP 2.2, EDID, CEC |
| HDMI Output Resolutions | Up to 3840x2160@60Hz (2160p60) |
| Maximum Input Resolution | 1920x1080@30Hz AirMedia presentation; 3840x2160@30Hz from an AirMedia Connect adaptor |
| Multi-Source Display | Up to four sources with AirMedia Canvas; up to three via Miracast or Connect devices |
| Audio Format | 2 channel LPCM over HDMI |
