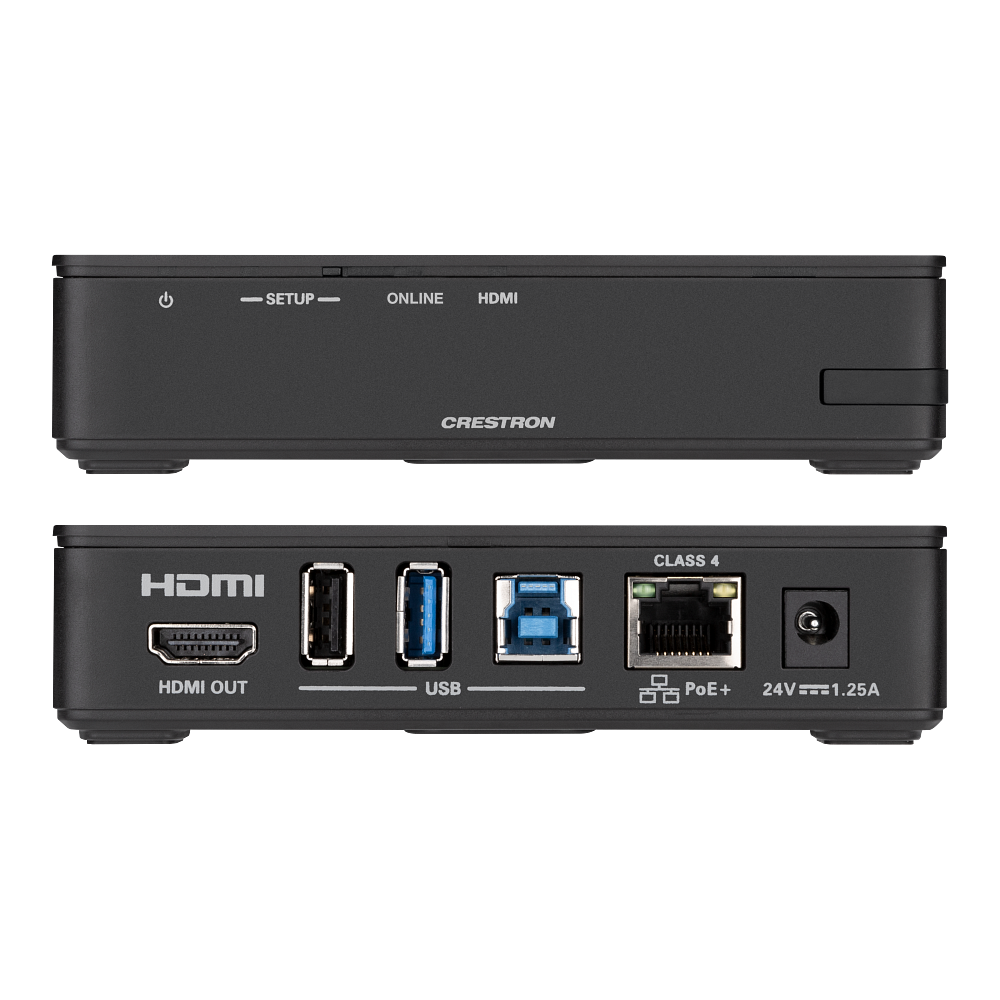

Crestron AM-3100-WF-I AirMedia Receiver 3100, International
The AM-3100-WF-I is the international version of the AirMedia Receiver 3100, a Series 3 wireless presentation endpoint that turns a display into a shared room resource. It mounts beneath, beside, or invisibly behind the screen and lets people present from a laptop, phone, tablet, or an AirMedia Connect adapter with no cable at the table. Crestron describes it as a fully featured TAA-compliant solution suitable for government deployments.
Presentation comes in over AirMedia, either through the building network or through a wireless access point, and goes out over a single HDMI connection to the display. AirMedia Canvas puts up to four sources on the screen at once from the AirMedia applications, Apple Screen Mirroring, or the Chrome extension, and up to three over Miracast or from AM-TX3-100 and AM-TX3-200 Connect devices. Order this part number where the domestic AM-3100-WF is not the right regional variant.
| Line | AirMedia Series 3 receiver, international version, TAA compliant |
|---|---|
| Wi-Fi | Via wireless access point: IEEE 802.11 b/g/n/ac/ax, 2.4 GHz or 5 GHz |
| Ethernet | 100/1000 Mbps, IEEE 802.1x, Active Directory authentication, XiO Cloud service, 802.3at compliant |
| Output Signal Types | HDMI (DVI compatible) |
| HDMI Output Resolutions | Up to 3840x2160@60Hz (2160p60) |
| Maximum Input Resolutions | AirMedia presentation 1920x1080@30Hz; AirMedia Connect adapter 3840x2160@30Hz |
| USB Host | USB 2.0 and USB 3.0 for connecting a USB conferencing peripheral |
| USB Device | USB 3.0 for computer console, installer setup and firmware update |
