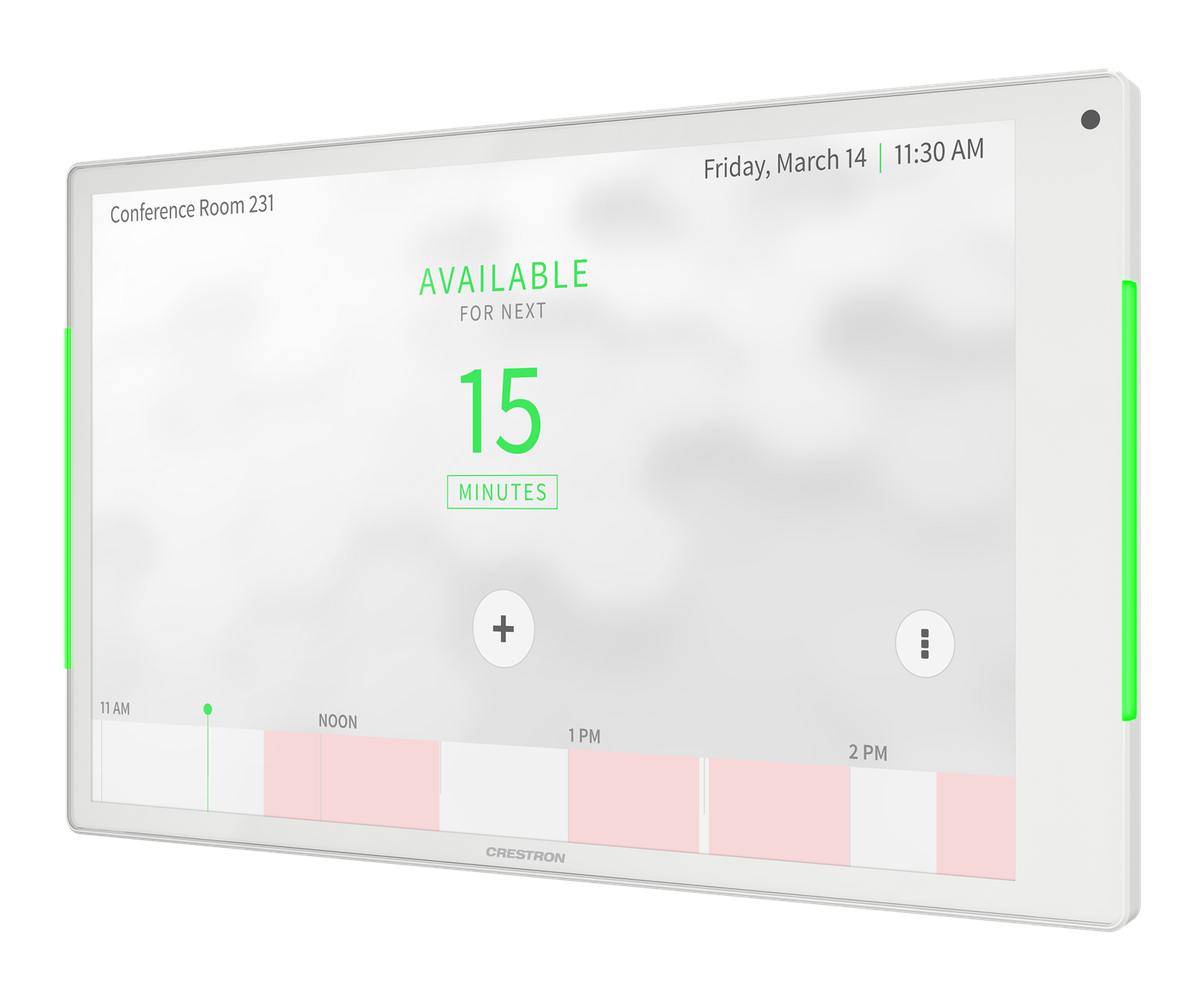

Crestron TSS-1080 10.1 in. Room Scheduling Touch Screen

The TSS-1080 is the 10.1 in. scheduling panel in the 80 Series. Its 1920 x 1200 display carries a full agenda at a readable size outside a larger room, and the die-cast housing is only 1.18 in. deep, so it sits close to the wall. Networking is gigabit Ethernet with PoE+ plus Wi-Fi 6E 2x2 MIMO on 2.4, 5, and 6 GHz.

The panel is dedicated to scheduling: built-in speakers cover touch feedback and alerts, with no microphone and no intercom. A streaming decoder handles H.265, H.264, and MJPEG where a camera feed is wanted on the door panel. It surface mounts over a 2 or 3 gang US box, a 2 gang European DIN 49073 box, or a 2 gang UK BS 4662 box. The government version, TSS-1080-GV-B, is listed here as a variant.

Display	10.1 in. (257 mm) TFT active matrix color LCD
Resolution	1920 x 1200 pixels, 16:10
Brightness	350 to 400 nits (cd/m2), 1000:1 contrast
Network	1000 Mbps Ethernet with PoE+, Wi-Fi 6E 802.11a/b/g/n/ac/ax 2x2 MIMO
Video	H.265, H.264 (MPEG-4 part 10 AVC), MJPEG
Audio	Built-in speakers
Housing	Die-cast, smooth black or white finish, glass with matching surround
Mounting	Surface mount over 2 or 3 gang US, 2 gang DIN 49073, or 2 gang BS 4662 box
Dimensions	5.96 in. H x 9.68 in. W x 1.18 in. D (151 x 246 x 30 mm)
