Crestron UC-AUDIO-1-B-DR1 KIT

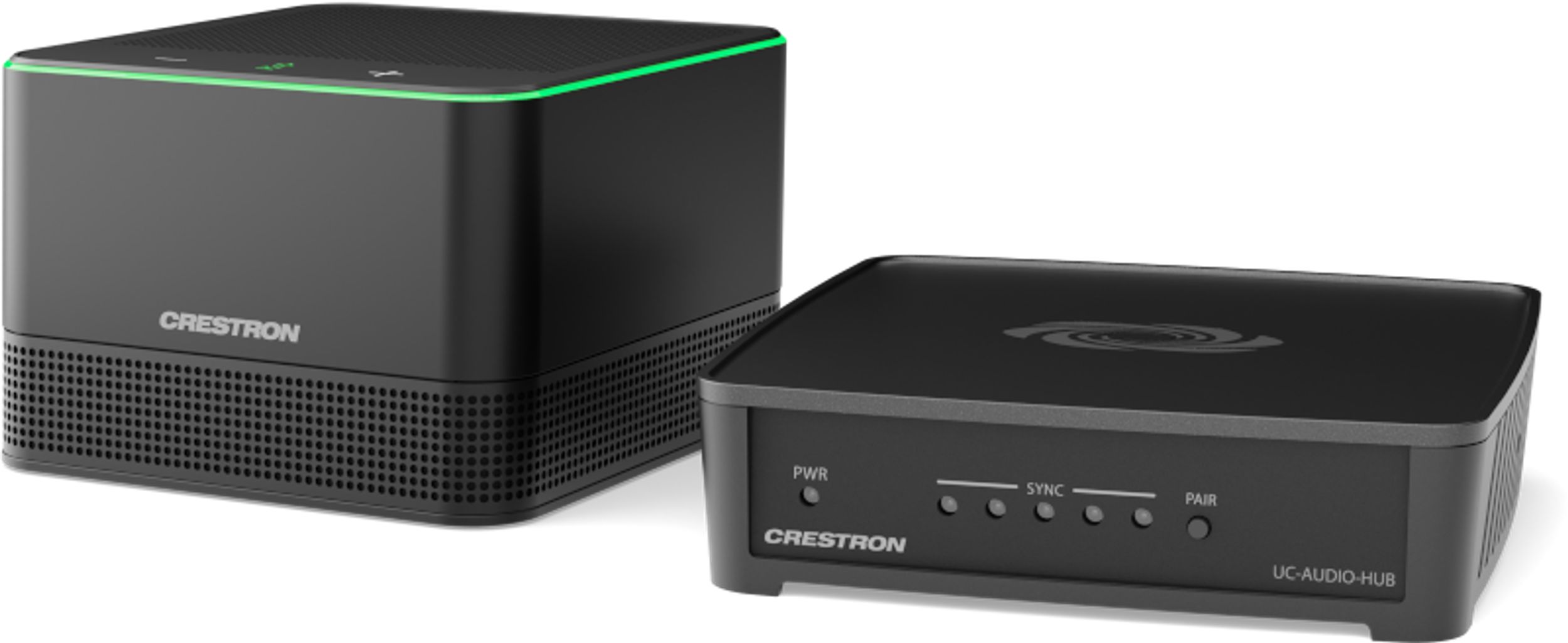

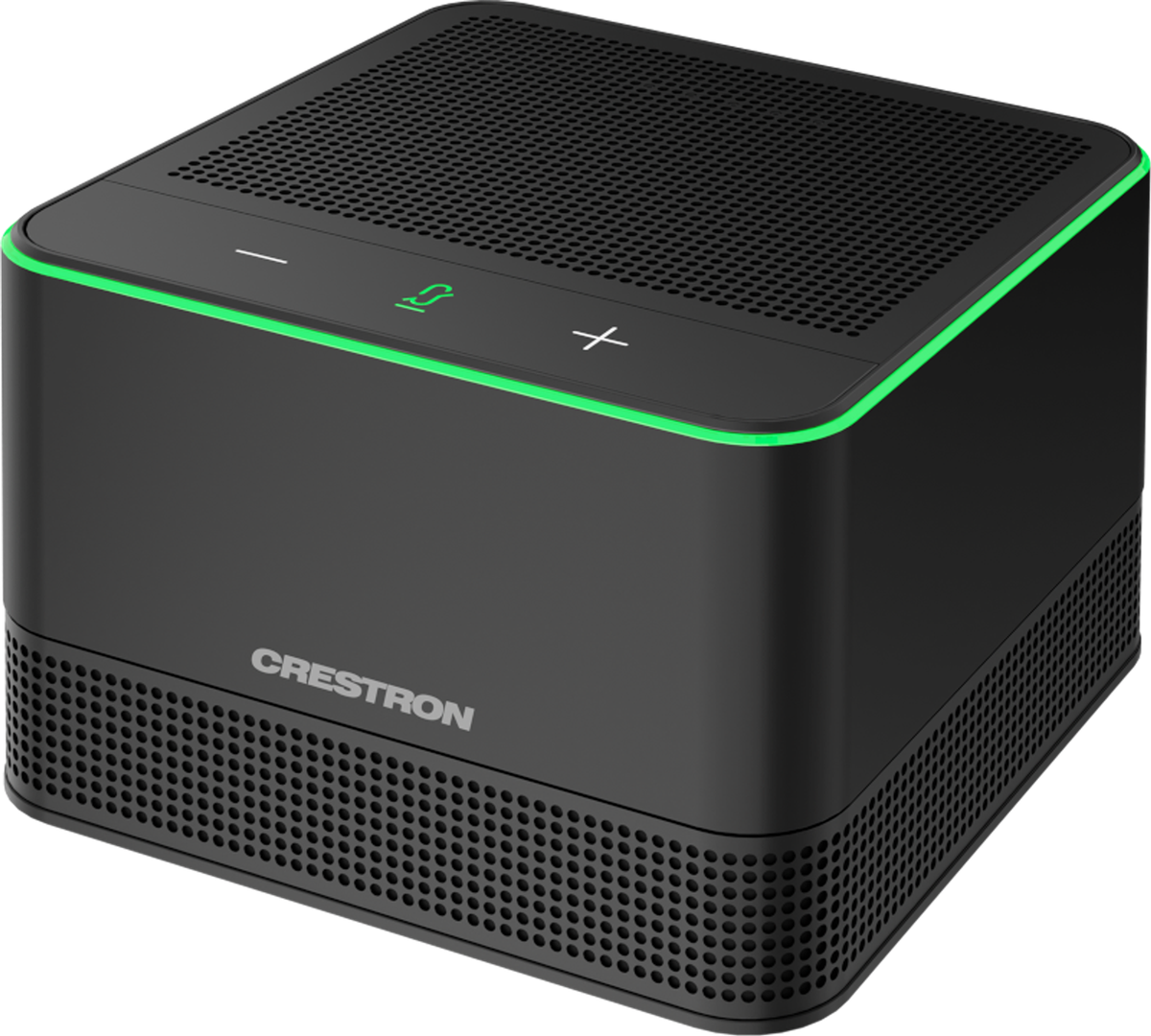

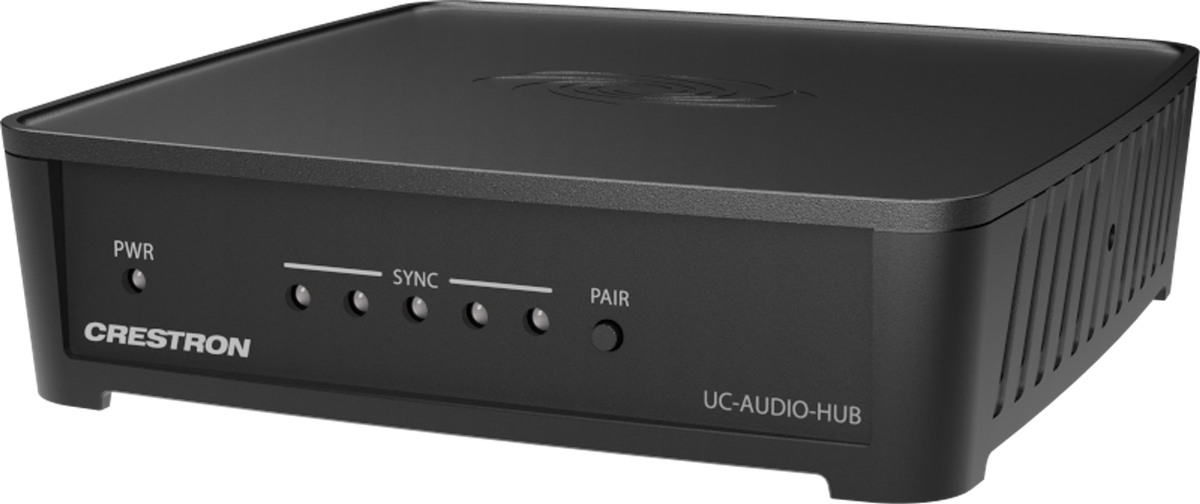

The UC-AUDIO-1-B-DR1 kit is the starting point for Crestron Flex Pod wireless conferencing audio. It pairs one UC-AUDIO-HUB with one UC-AUDIO-POD: the tabletop pod picks up the room with a 360 degree quad microphone array and plays far-end audio through a full-range speaker, while the hub receives the pod microphones, auto-mixes them, and passes the audio to a UC Engine over USB-C. The pod links to the hub wirelessly over DECT, so there is no cable to run across the table.
Because the pod is wireless, a room can be covered without floor boxes or under-table trenching. Up to four pods connect to a single hub, so this one-pod kit scales out to larger tables and multi-purpose rooms by adding UC-AUDIO-POD units as seating grows. This is the DECT Region 1 version in black.
| Kit Contents | One UC-AUDIO-HUB and one UC-AUDIO-POD |
|---|---|
| Microphone | 360 degree quad mic array, approx. 10 ft (3 m) pickup |
| Speaker | 2 in. full-range, 100 Hz to 7 kHz, 74 dB SPL at 1 m |
| Audio Processing | Acoustic echo cancellation, automatic gain control, noise suppression |
| Wireless | DECT ULE, up to 50 ft (15 m) indoors |
| Host Connection | Hub to UC Engine via USB-C, auto-mixed |
| Expansion | Up to 4 pods per hub |
| DECT Region | Region 1 |
