Crestron UC-AUDIO-HUB-DR1

The UC-AUDIO-HUB-DR1 is a wireless transceiver and auto mixer for the Crestron Flex audio system. It pairs with up to four Crestron Flex UC-AUDIO pods over DECT, receives the microphone audio from each pod, auto-mixes it into a single balanced signal, and passes that signal to a UC Engine. Audio returning from the UC Engine is distributed back out to every paired pod, so a room can be covered without running microphone cable to the table.

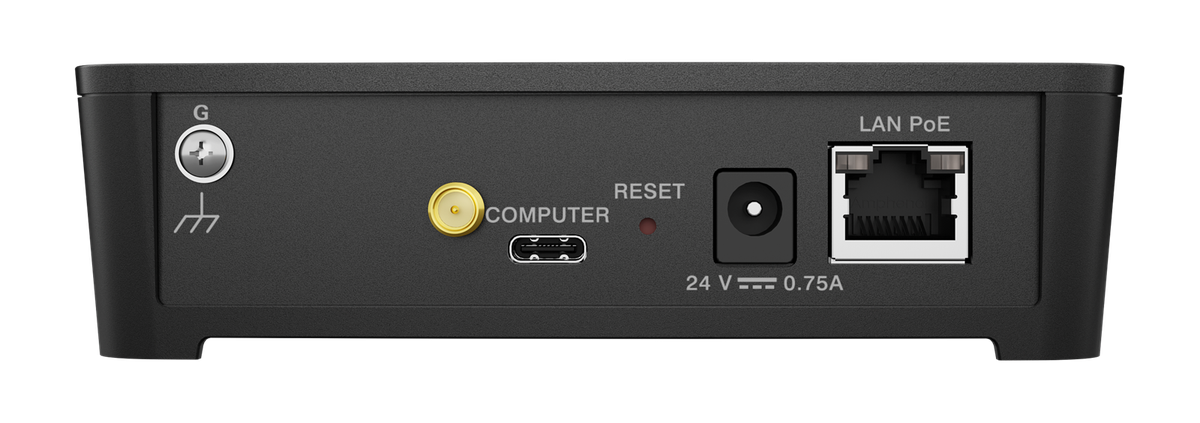

DECT keeps the wireless link stable and secure, operating on 1920 to 1930 MHz across five channels for the US and Canada with a range of up to 50 ft indoors. The hub connects to the UC Engine over USB-C and offers RJ-45 Gigabit Ethernet, and it can run from its AC adapter or from Power over Ethernet. It can sit freestanding on a surface, stack, or mount to a wall or ceiling with the supplied bracket.
