BZBGear BG-UHD-MVS21A 2x1 4K Seamless Switcher and Multiviewer
The BG-UHD-MVS21A takes two HDMI sources at up to 4K60 4:4:4 and puts them on a single display. It switches between them with no black frame, or shows both at once as picture-in-picture with one inset over the other, or picture-by-picture side by side, with the window positions adjustable.

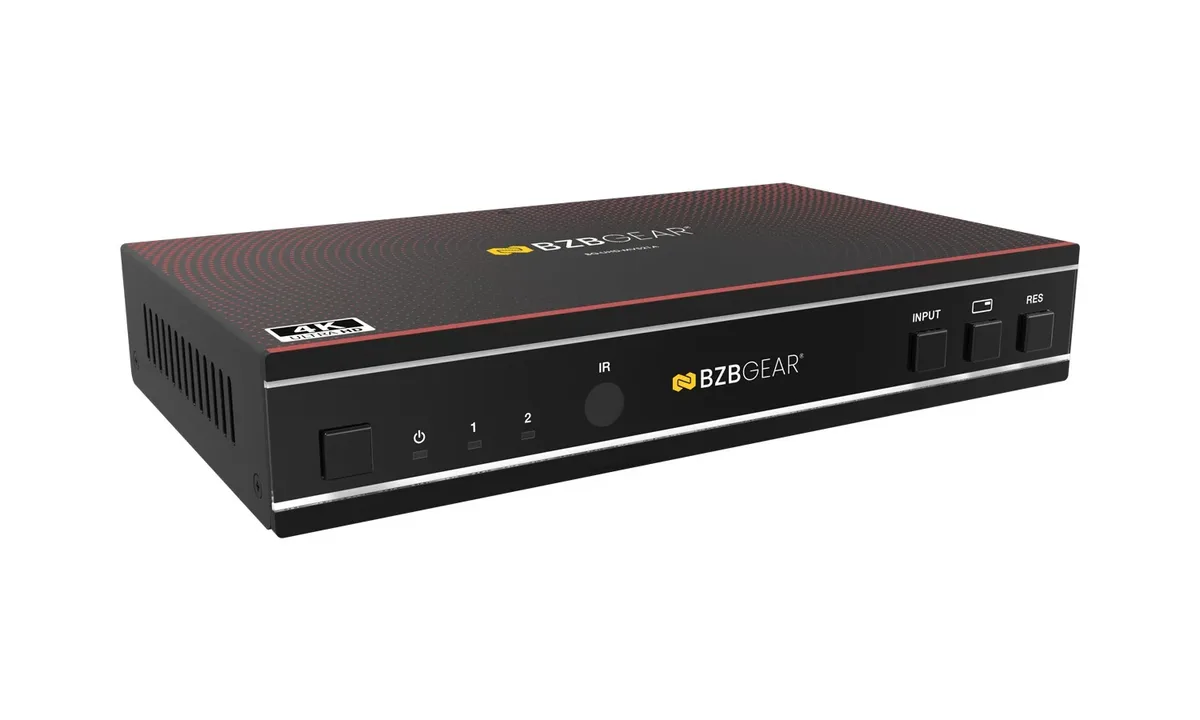

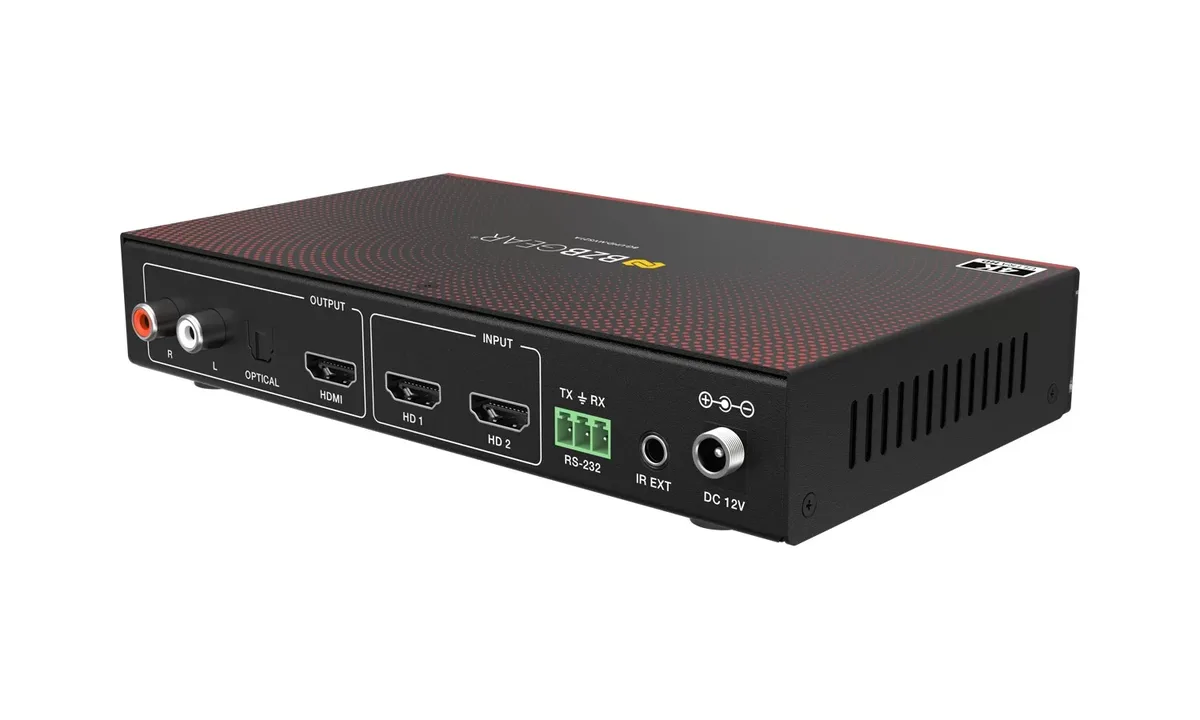

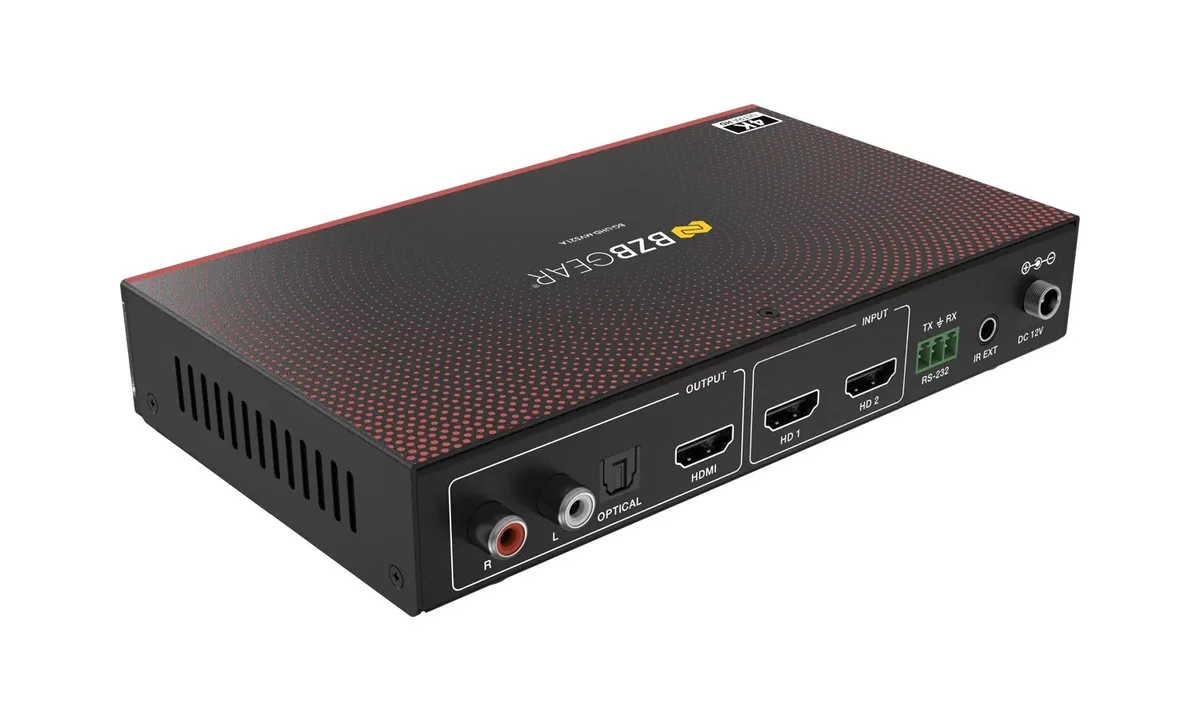

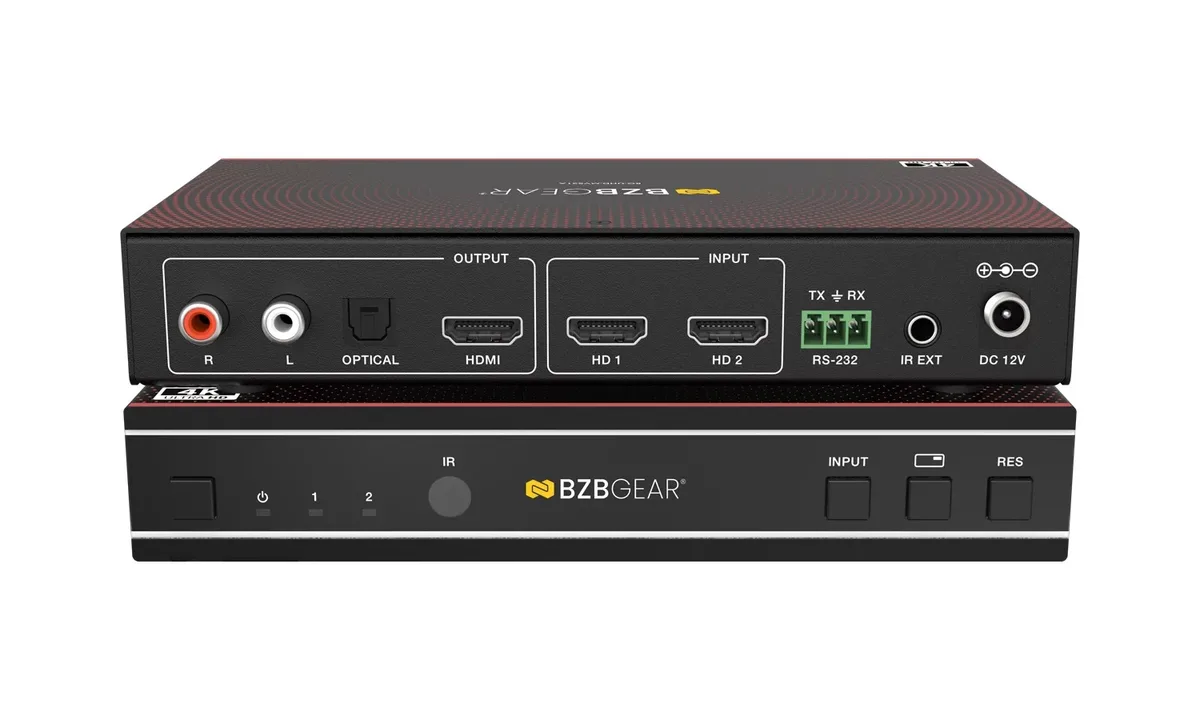

Video is HDMI 2.0b at 18 Gbps with HDCP 2.2 and 1.x. Audio is de-embedded on RCA and optical outputs, and control is by front panel, IR at 38 kHz or RS-232 on a phoenix connector. The case is metal.
- Dimensions6.9”(W) x 3.9"(D) x 1.2”(H) [175mm(W) x 100mm(D) x 30mm(H)]
- Input ports2 x HDMI IN [Type A, 19-pin female]
- Output ports1 x HDMI OUT [Type A
- Video ResolutionsUp to 4K2K@60 4:4:4
- Power4.56W (Max)
| HDMI Compliance | 2.0b |
|---|---|
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | 18Gbps |
| Video Resolutions | Up to 4K2K@60 4:4:4 |
| Input Ports | 2 x HDMI IN [Type A, 19-pin female] |
| Output Ports | 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA] 1 x OPTICAL OUTPUT [S/PDIF] |
| Audio Formats | HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0 SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0 Note: It does not support HBR audio. |
| Color Depth | 8-bit |
| Dimensions | 6.9”(W) x 3.9"(D) x 1.2”(H) [175mm(W) x 100mm(D) x 30mm(H)] |
| Weight | 1.1lbs [497g] |
| Power | 4.56W (Max) |
