BZBGear BG-UHD-VW2X2A 2x2 Video Wall Controller with USB-C Input

The BG-UHD-VW2X2A is the USB-C version of BZBGear's 2x2 wall controller. A laptop connects on one cable and a fixed source on HDMI, both accepted at up to 4K60 4:4:4 on an 18 Gbps link with HDCP 2.2 and DP 1.2a Alt Mode.

Four HDMI outputs drive the wall in several modes, scaled to 720p60, 1080p60 or 4K30 as the displays require, with no measurable added audio or video latency. Optical and analog L/R outputs de-embed the audio. Control is by front panel buttons, IR at 38 kHz or RS-232.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Input: up to 4K@60Hz 4:4:4 Output: 720P60Hz, 1080P60Hz, 4K30Hz, 1024x768P60Hz
Input ports	1 x HDMI INPUT [Type A, 19-pin female] 1 x USB-C INPUT [Type C, 24-pin female]

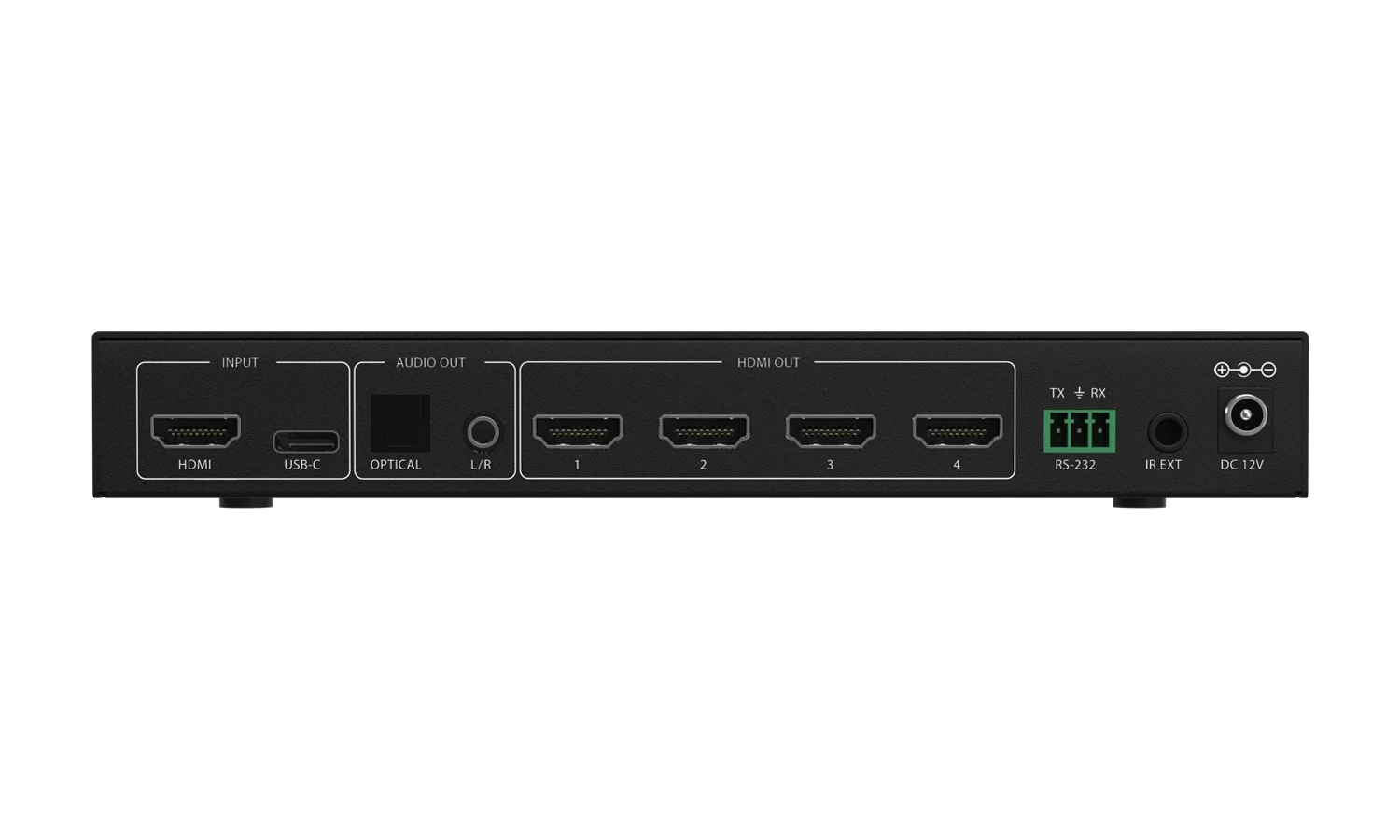

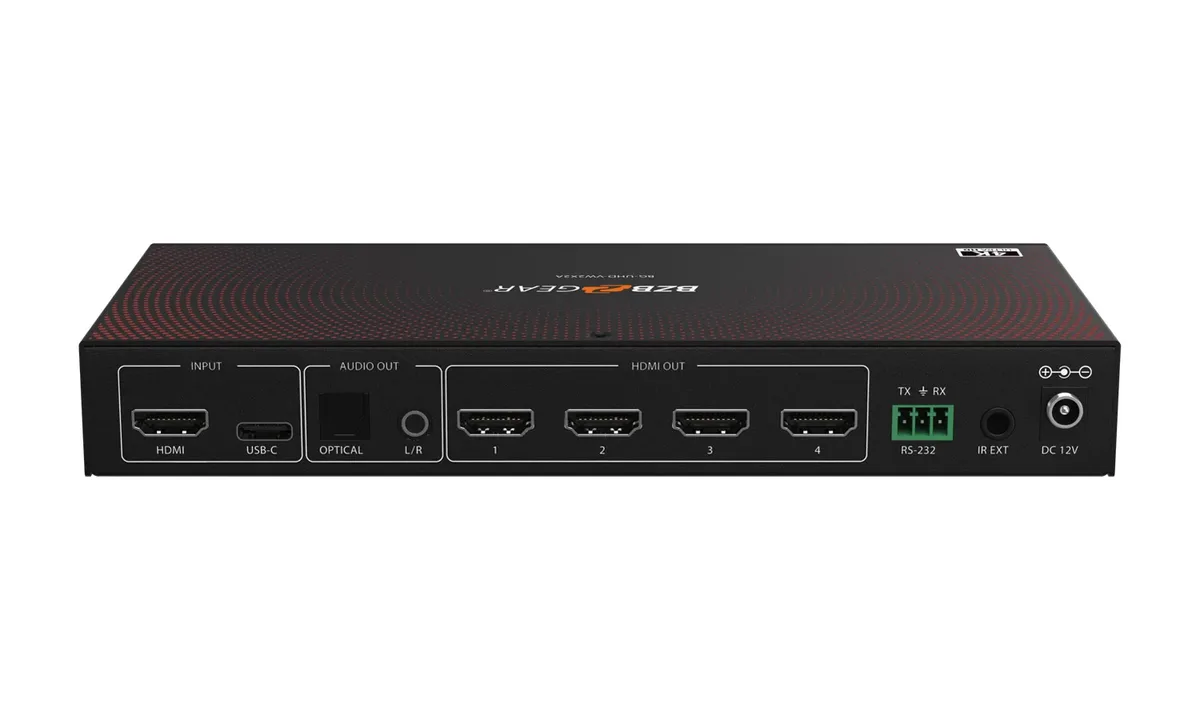

Output ports	4 x HDMI OUTPUT [Type A, 19-pin female] 1 x OPTICAL AUDIO OUT [S/PDIF] 1 x L/R AUDIO OUT [RCA]
Audio Formats	HDMI IN/OUT: LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24 L/R OUT: PCM 2.0 SPDIF(OPTICAL): Dolby Digital/plus, DTS 5.1, PCM 2.0
Color Depth	8/10/12 bit
