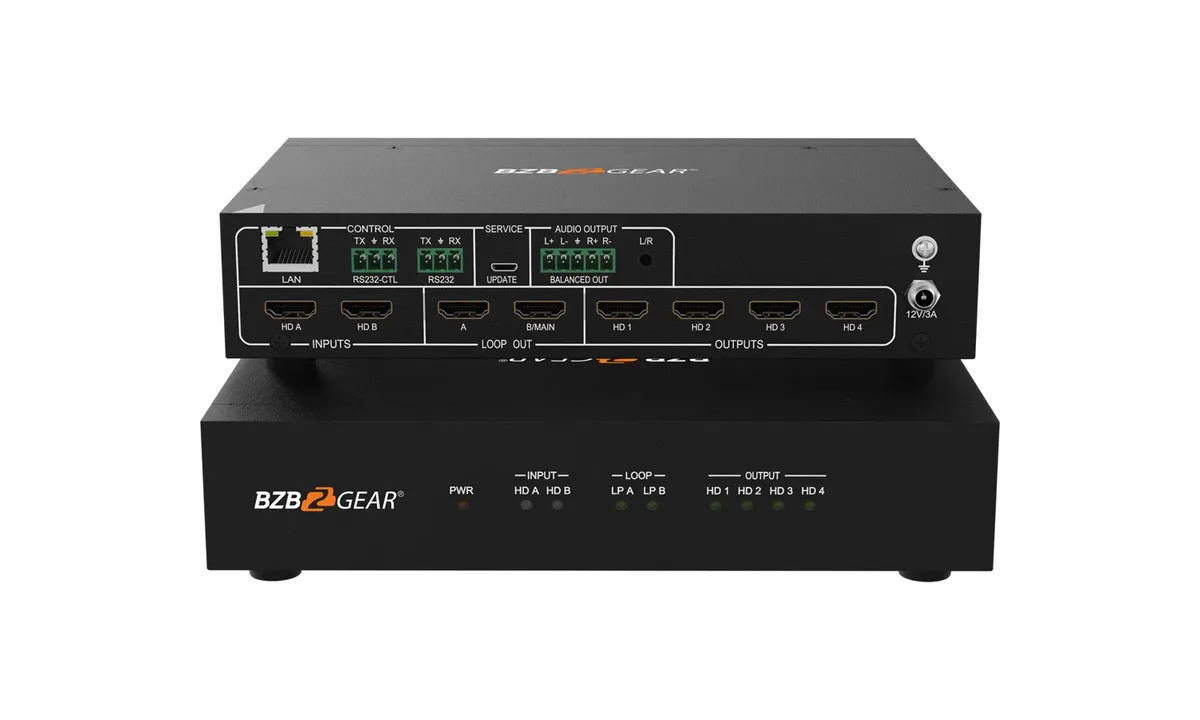

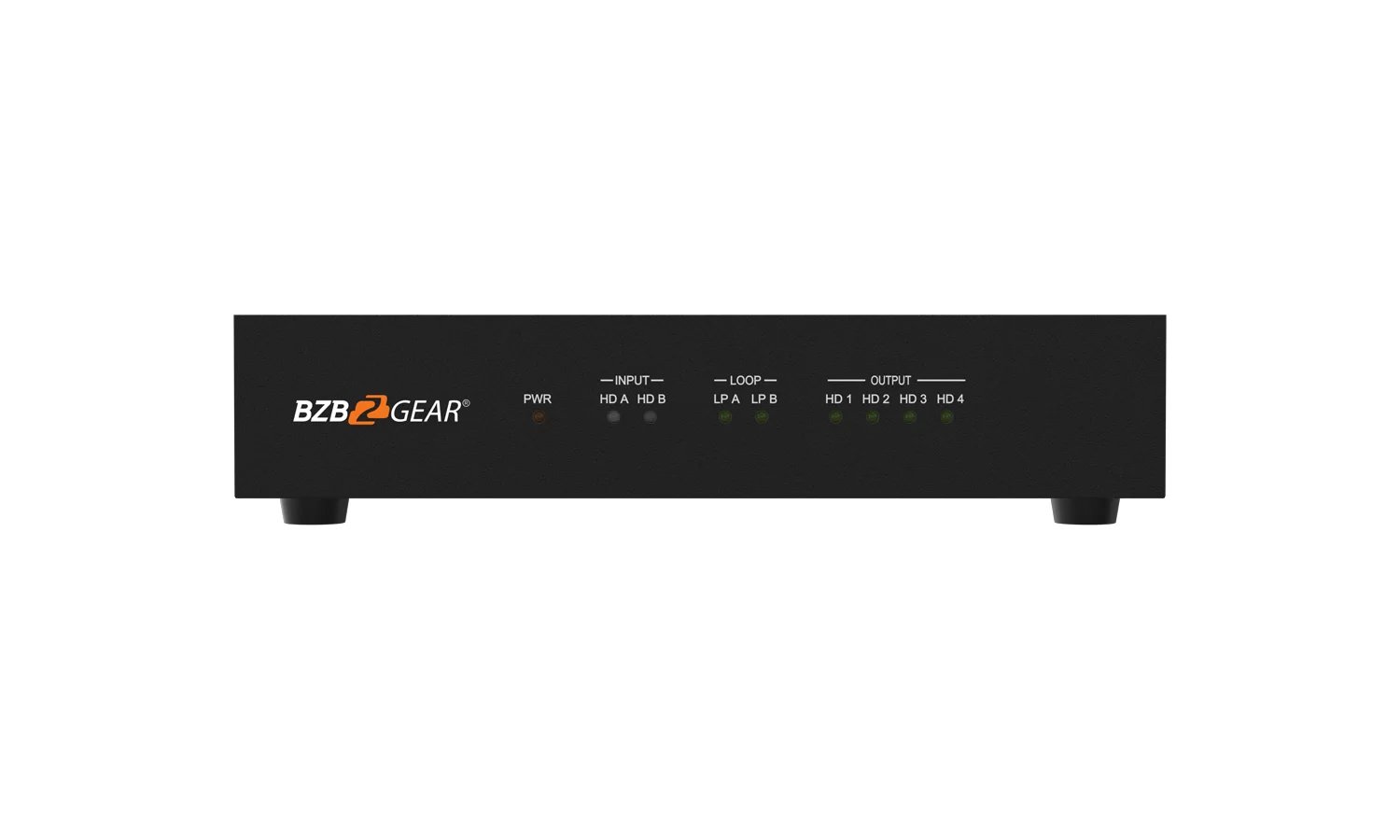

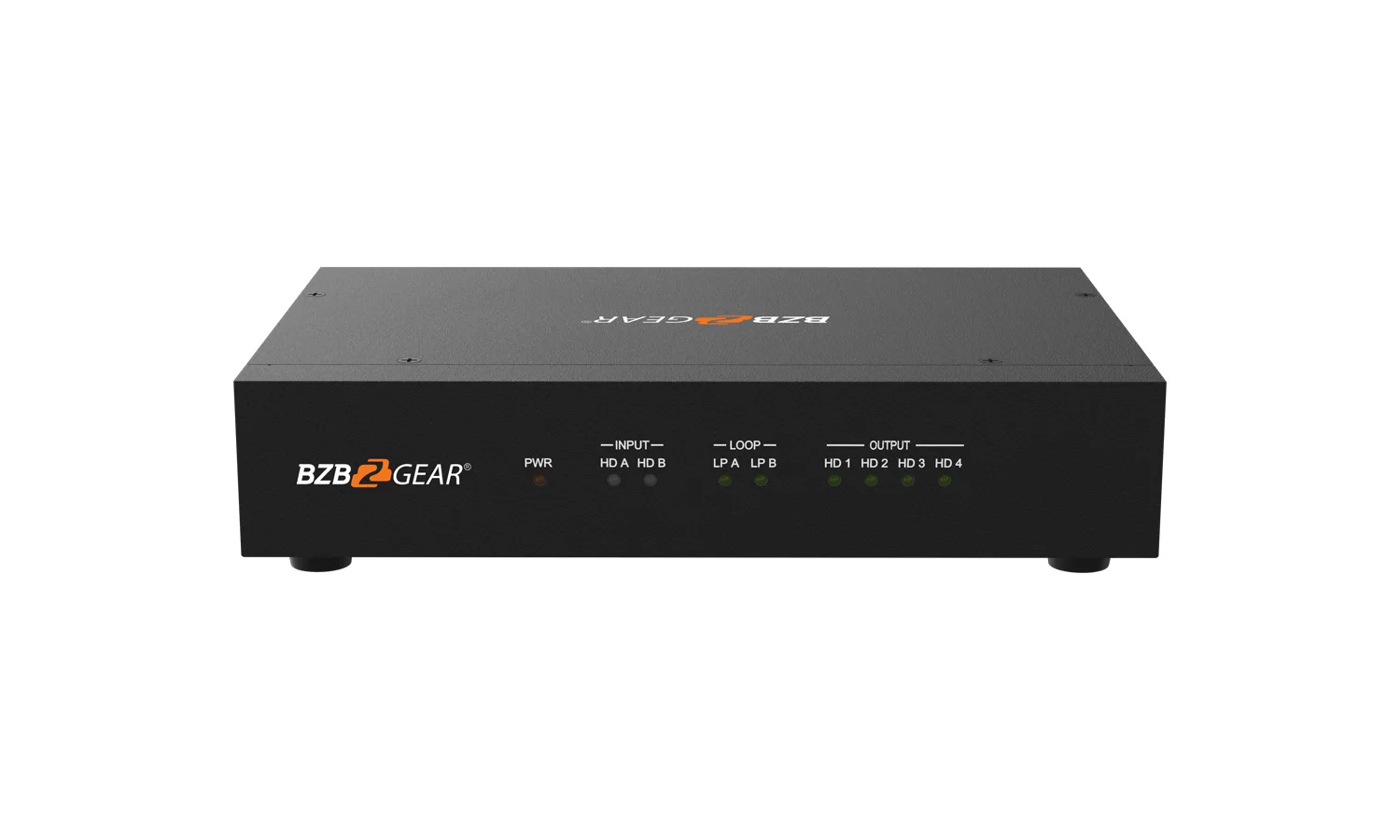

BZBGear BG-UHD-VW24 4K Video Wall Processor for Four Displays

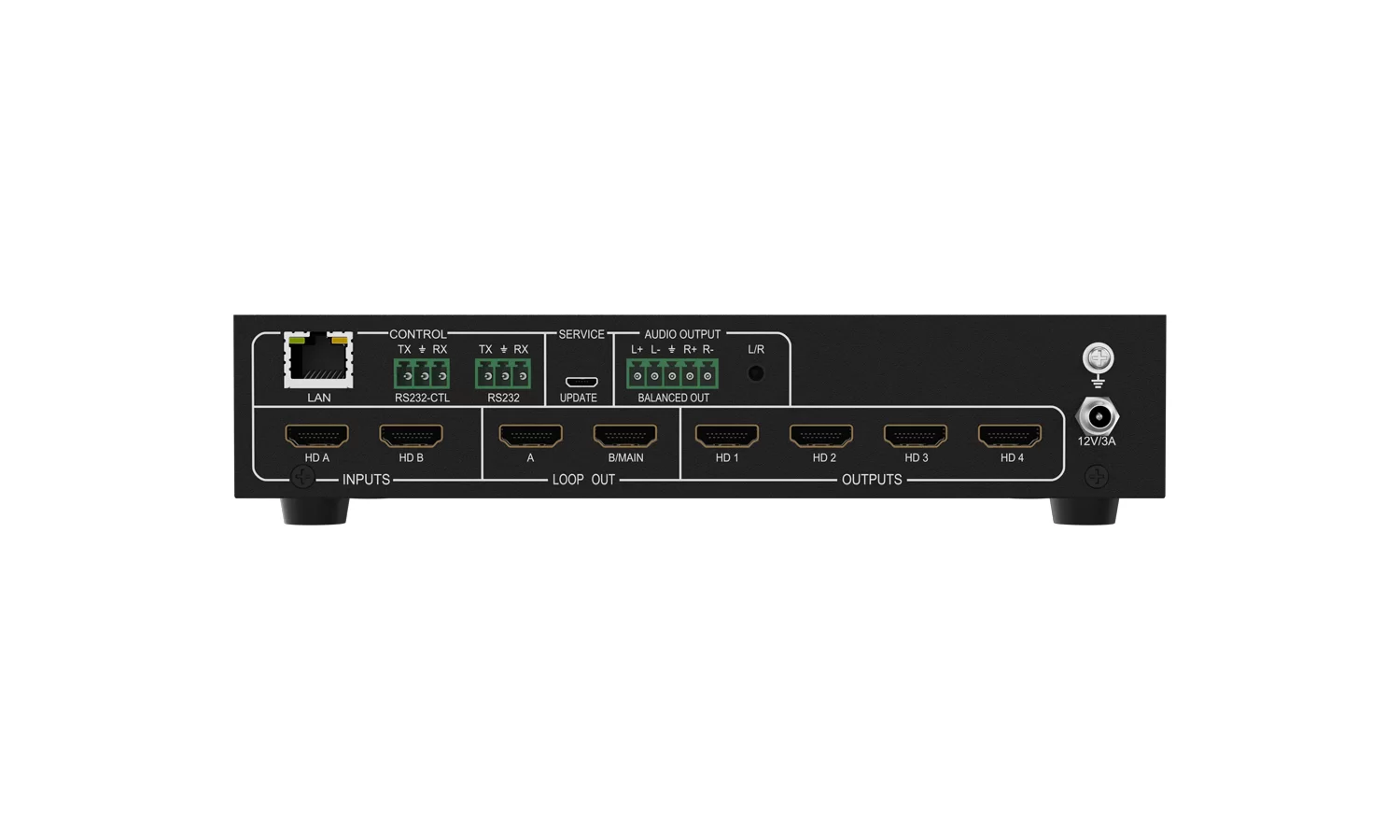

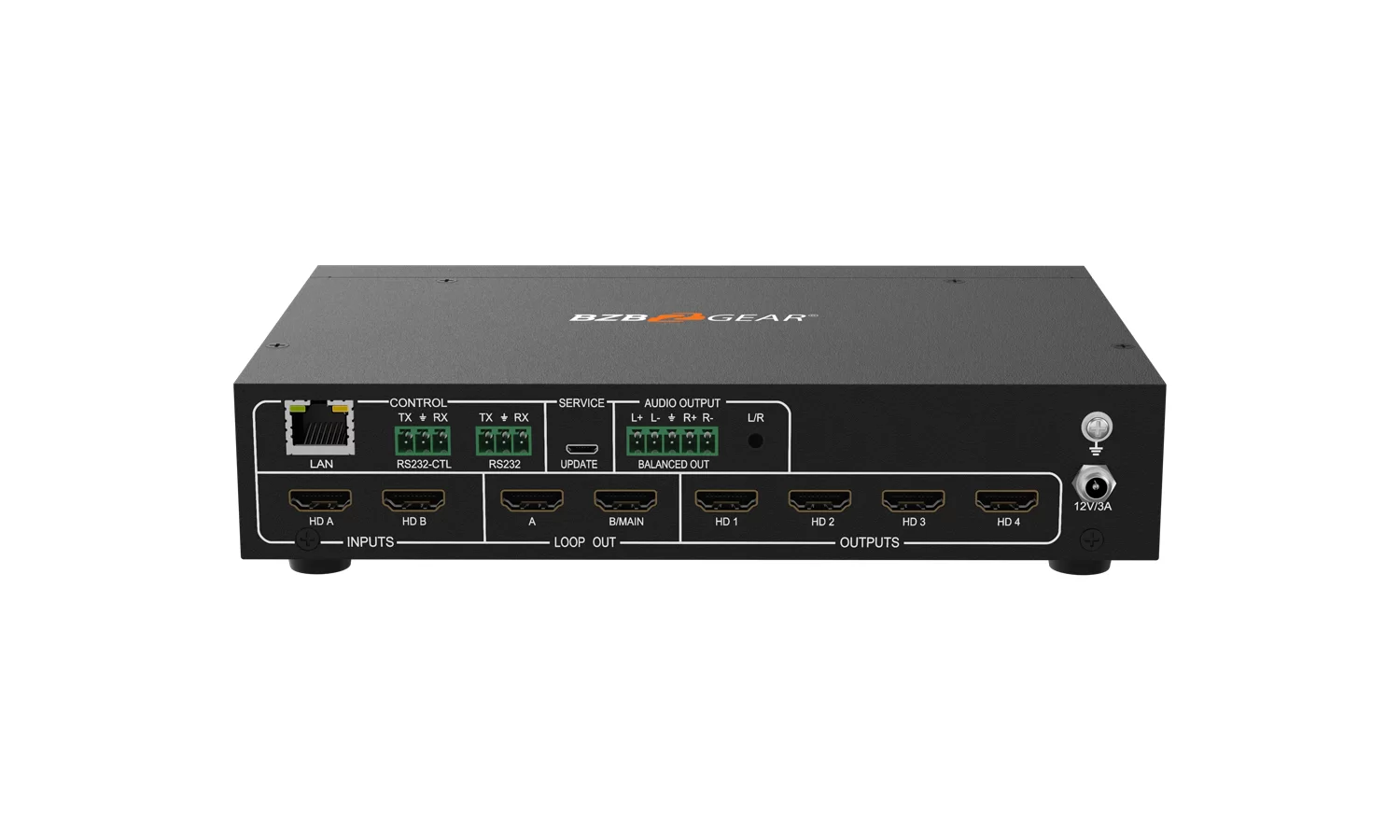

The BG-UHD-VW24 drives a four-screen wall from two HDMI inputs, with two HDMI loop outs and four scaling outputs. It handles input up to 3840x2160 at 60 Hz on HDMI 2.0 with HDCP 2.2 and 1.4.

Bezel compensation works in two modes so the image lines up across the frames rather than jumping, and each output's resolution, brightness and contrast can be set individually to even out a wall of panels that are not all the same age. Control is over IP or RS-232 at 57600 baud. The unit is 218 x 146 x 43 mm, weighs 2 kg and draws 25W at most.

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2/1.4
Input Video Formats	4096x2160p 24/25/30/50/60Hz 3840x2160p 24/25/30/50/60Hz 1080p 24/25/30/50/60Hz 1080i 50/60Hz 1920x1200 60Hz 1680x1050 60Hz 1600x1200 60Hz 1440x900 60Hz
Audio Format	2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS
RS-232	Baud rate: 57600, data bit: 8, Stop bit: 1, no parity
Power Consumption	25W (Max)
Dimensions	8.6in(W) x 5.7in(D) x 1.7in(H) [218mm(W) x 146mm(D) x 43mm(H)]
Weight	4.4 lbs [2kg]
