BZBGear BG-UHD-MVS41A 4x1 Seamless Switcher and Multiviewer

The UHD-MVS41A takes four HDMI sources and gives one output that can show any one of them, switched seamlessly, or all four at once in a quad split. That combination is what a small production or a signage head-end usually needs, and it saves buying a switcher and a multiviewer separately.

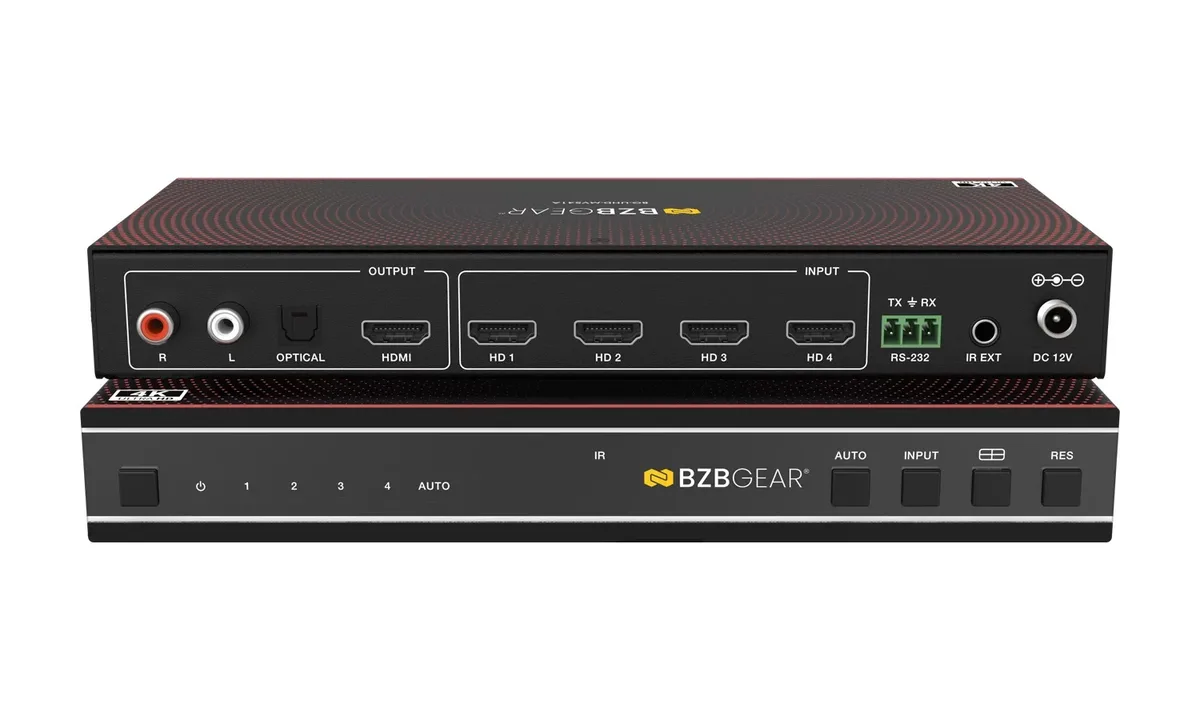

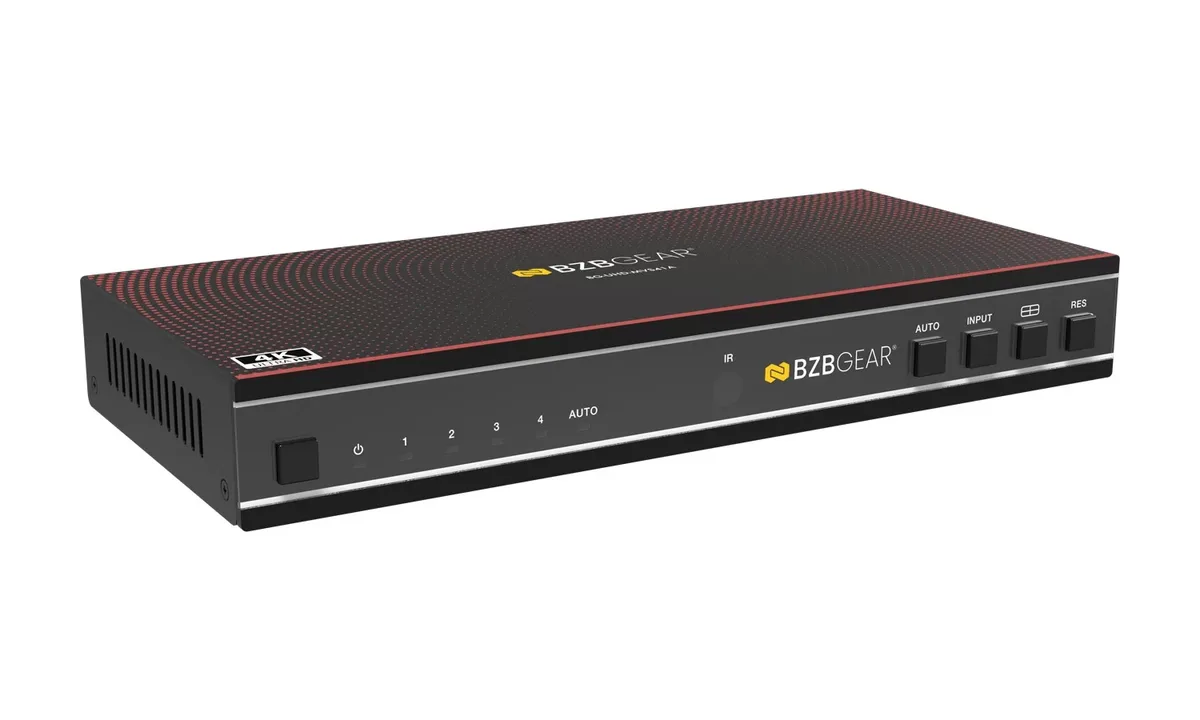

Video runs to 4K60 on an 18 Gbps path with HDCP 2.2. Audio breaks out to an RCA pair and an optical S/PDIF port. Control is by front panel, RS-232 on a Phoenix connector or IR. The box is 220 mm wide and draws 10 watts.

HDMI compliance	HDMI 2.0b
HDCP compliance	HDCP 2.2 / 1.x
Video bandwidth	18Gbps
Video resolutions	Up to 4K@60Hz
Colour space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio formats	HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0 SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0 Note: It does not support HBR audio.
Input ports	4 x HDMI IN [Type A, 19-pin female]

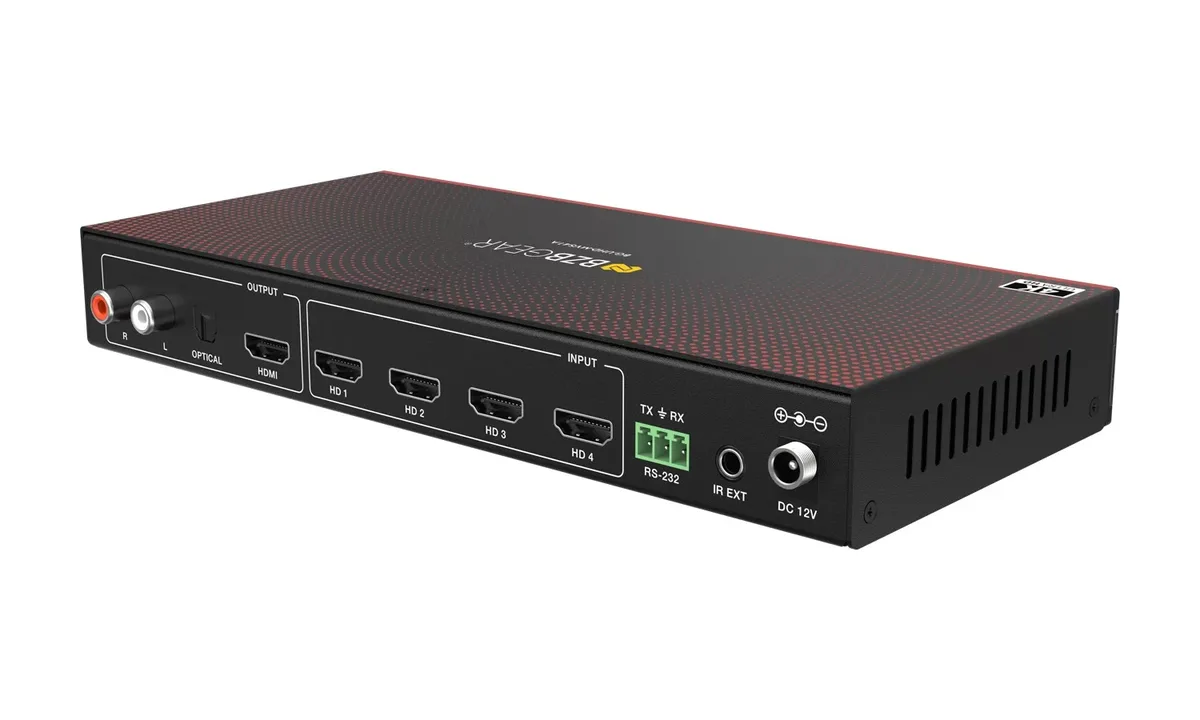

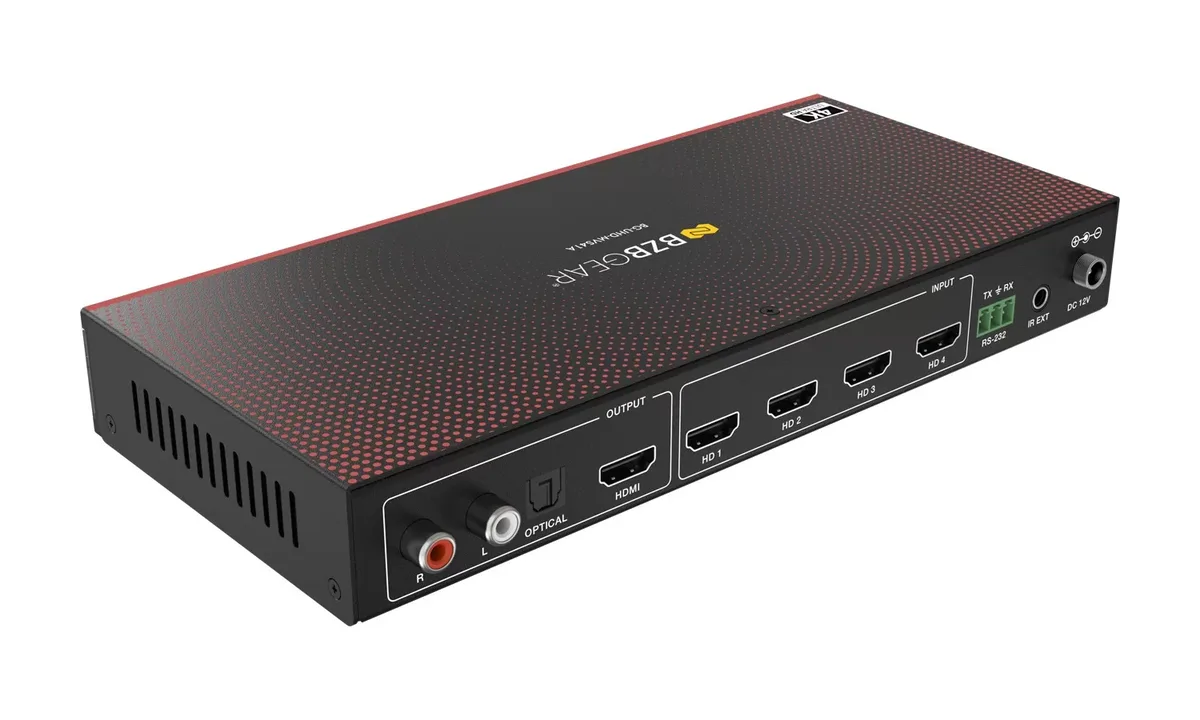

Output ports	1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA] 1 x OPTICAL OUTPUT [S/PDIF]
Control ports	1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack]
Dimensions	8.7"(W) x 3.9"(D) x 1.2"(H) [220mm(W) x 100mm(D) x 30mm(H)]
Weight	1.4lbs [620g]
