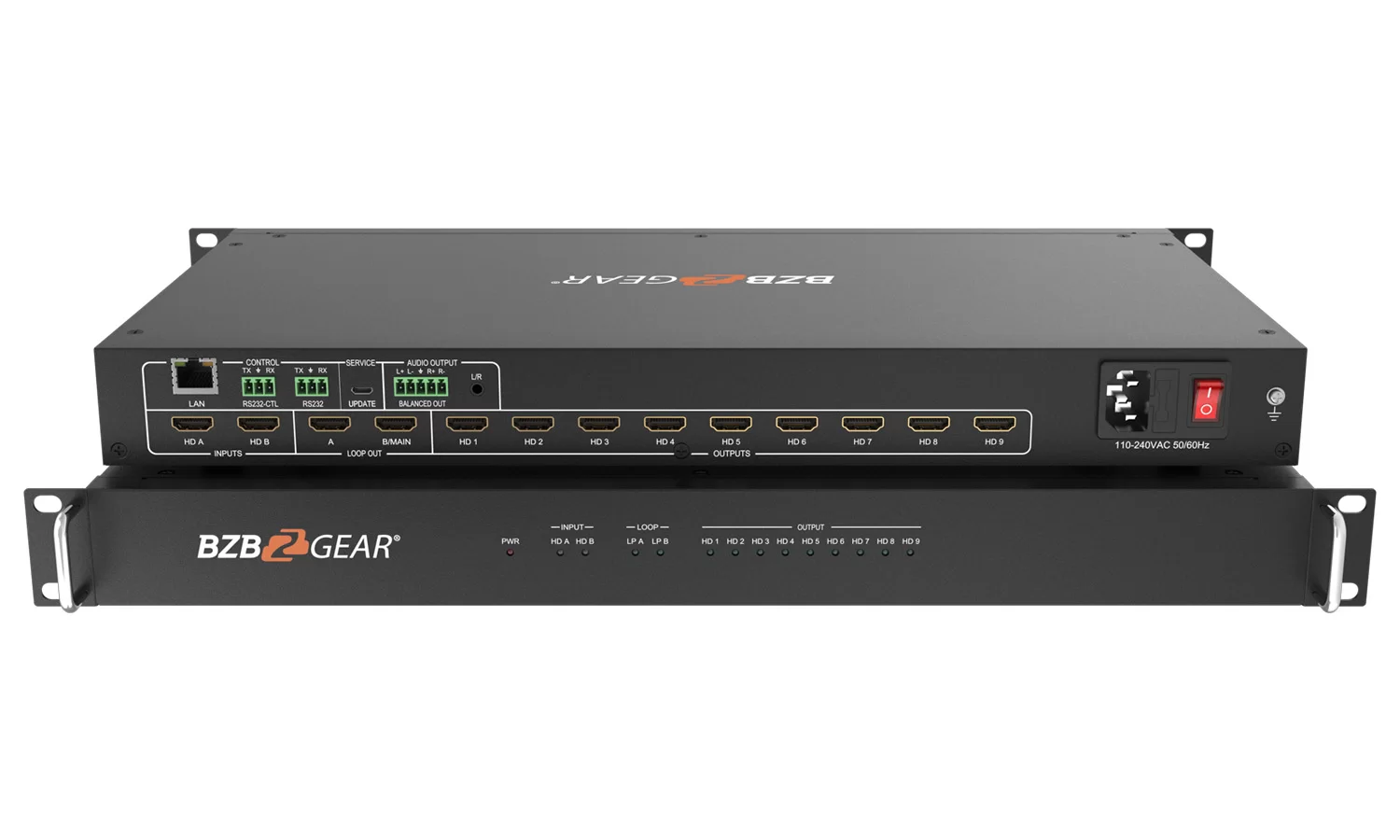

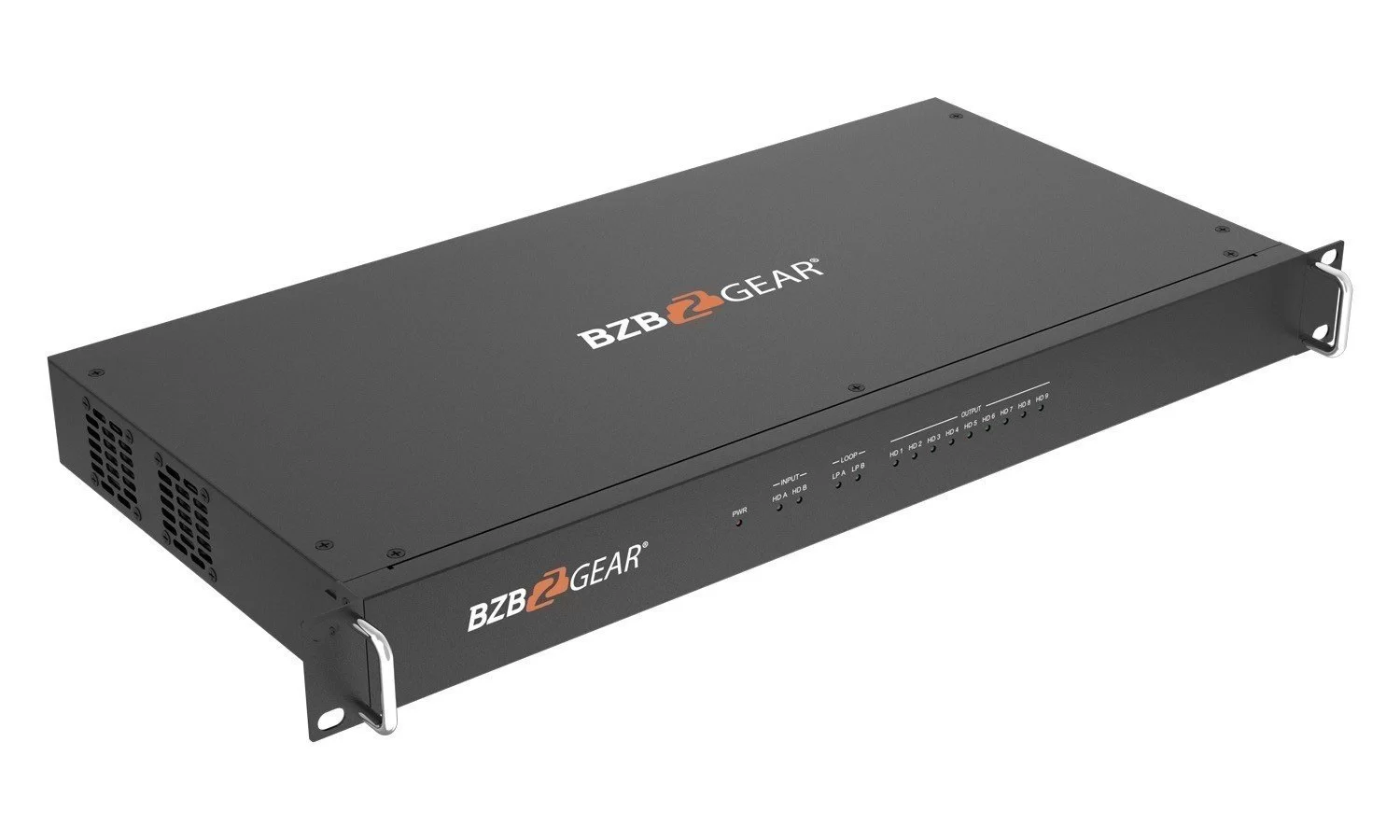

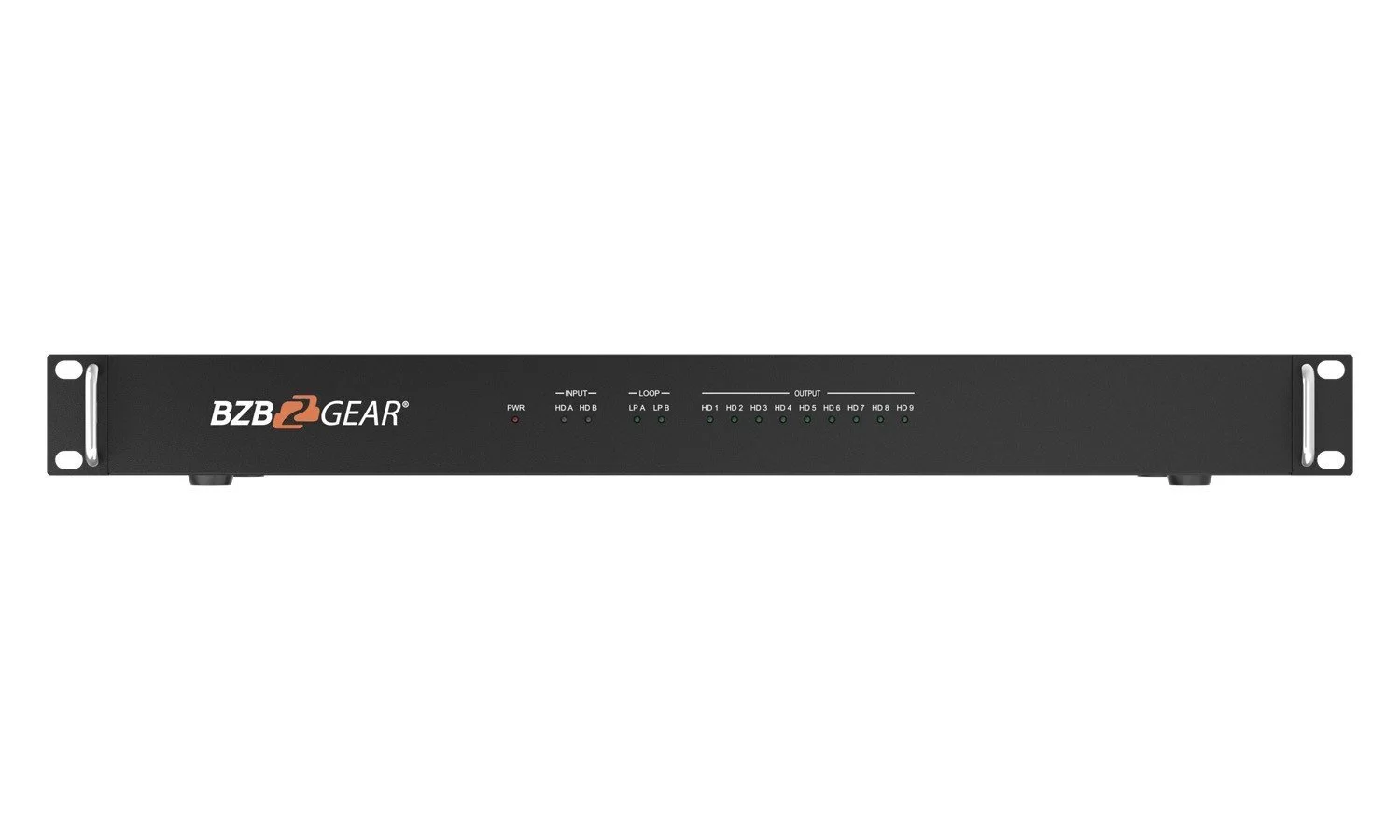

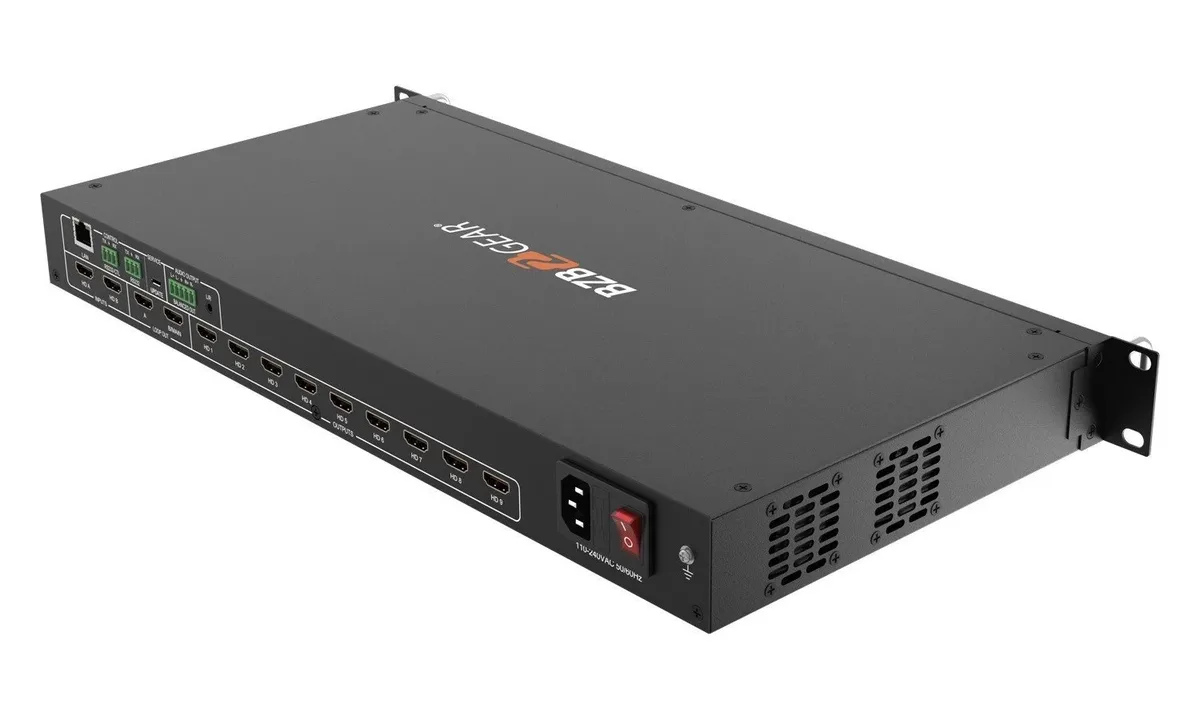

BZBGear BG-UHD-VW29 4K Video Wall Processor for Nine Displays

The BG-UHD-VW29 builds a wall of up to nine screens, typically a 3x3, from two HDMI inputs. It provides two HDMI loop outs and nine scaling outputs, running HDMI 2.0 at 18 Gbps with HDCP 2.2 and 1.4.

Bezel compensation has two modes so content stays aligned across the frames, and output resolution, brightness and contrast are adjustable per display. Control is over IP or RS-232 at 57600 baud, 8 data bits, 1 stop bit, no parity. The chassis is 430 x 220 x 44 mm, weighs 5 kg and draws up to 70W from mains.

HDMI version	HDMI 2.0, 18Gbps
HDCP compliance	HDCP 2.2 and HDCP 1.4

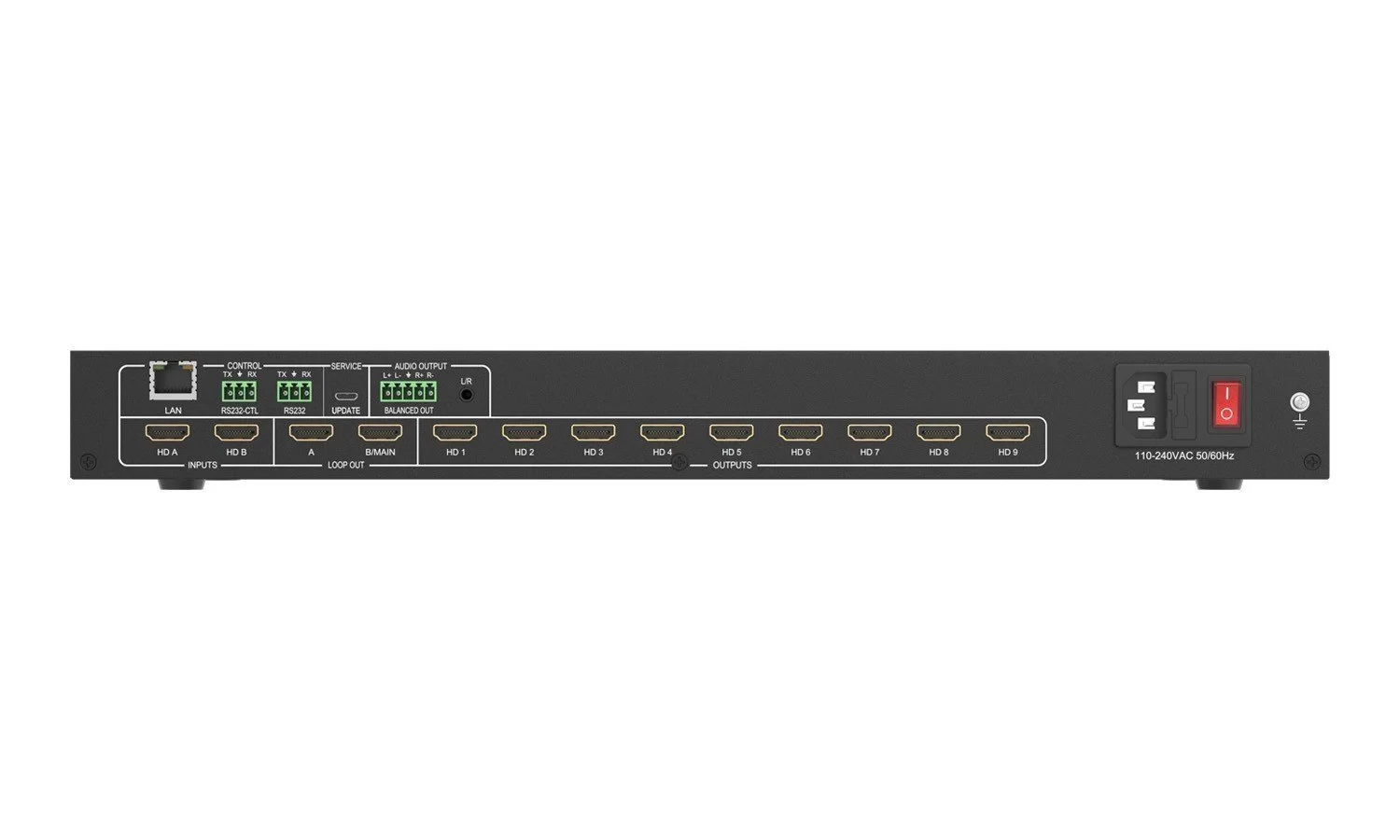

Outputs	9 x HDMI scaling outputs, 2 x HDMI loop out
Inputs	2 x HDMI
Audio format supported	2.0 channel, 5.1 channel
Control	RS232 (57600 baud, 8 data bits, 1 stop bit, no parity), IP
Power	110-220 VAC, 70W max
Dimensions	17.0in x 8.7in x 1.7in [430 x 220 x 44 mm], 11lbs [5kg]
