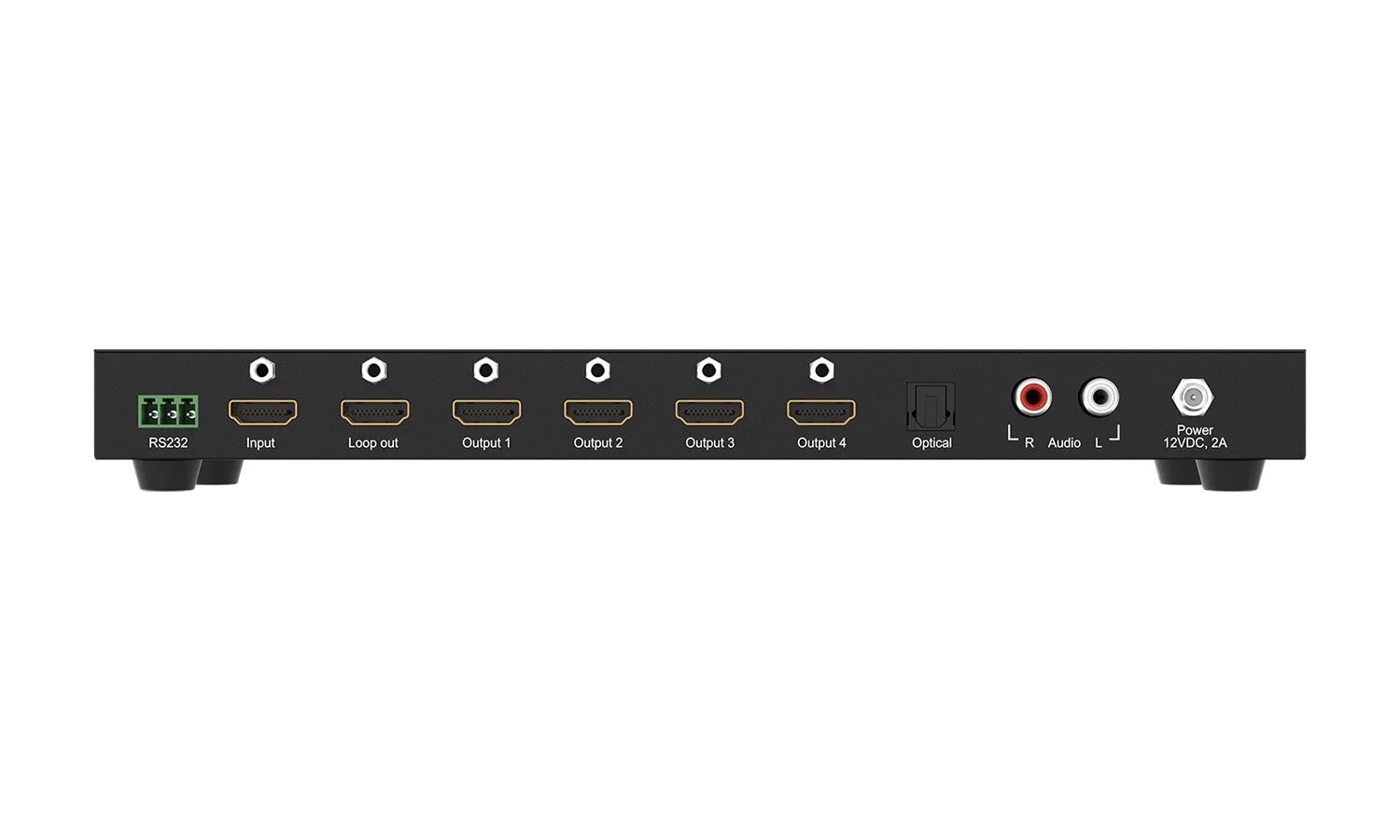

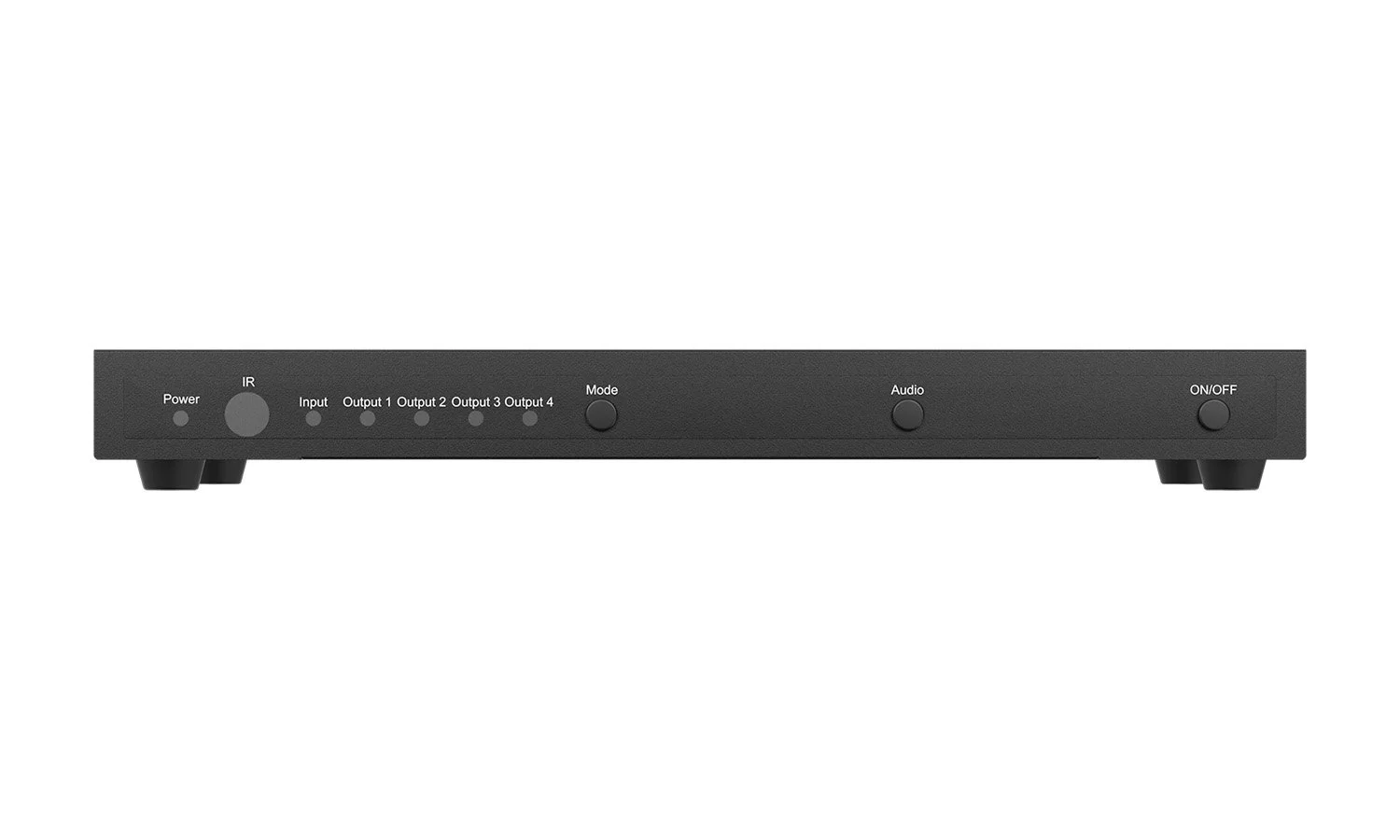

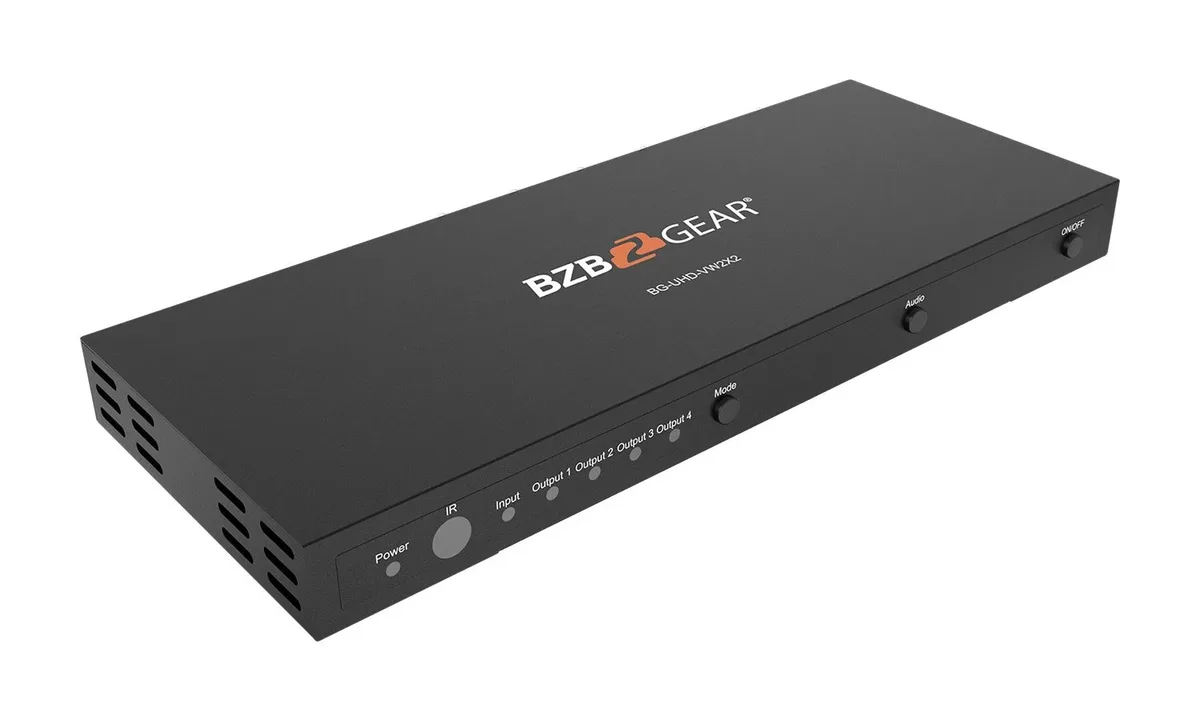

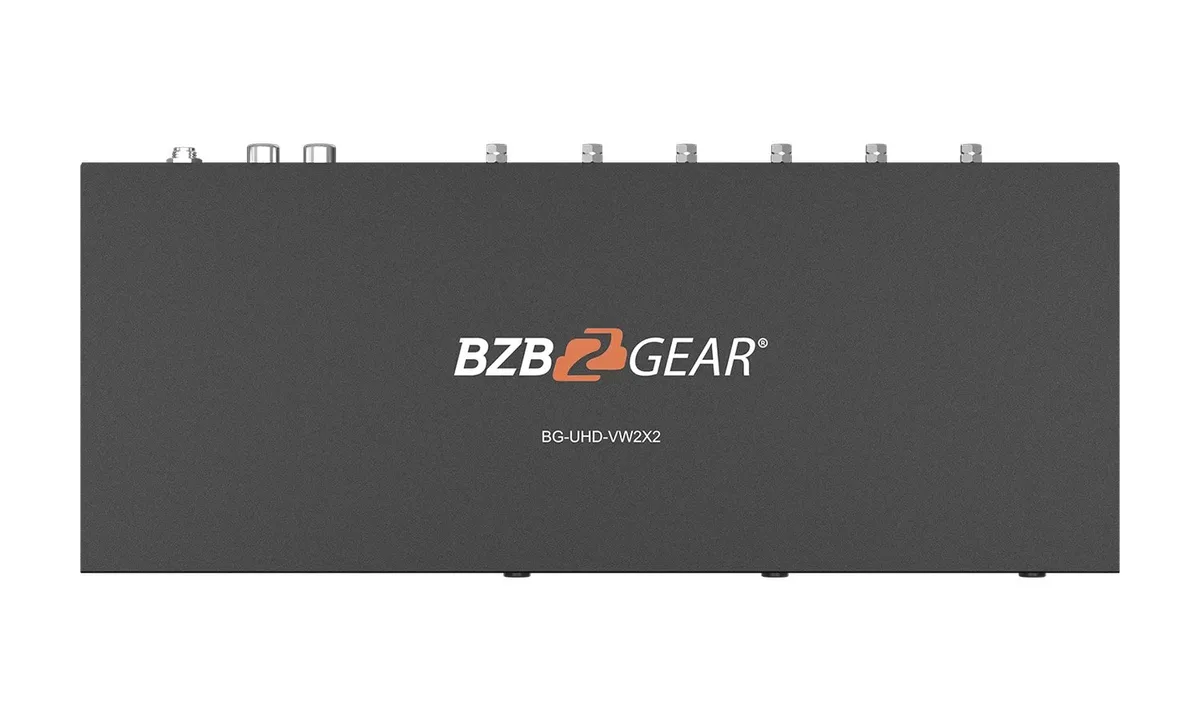

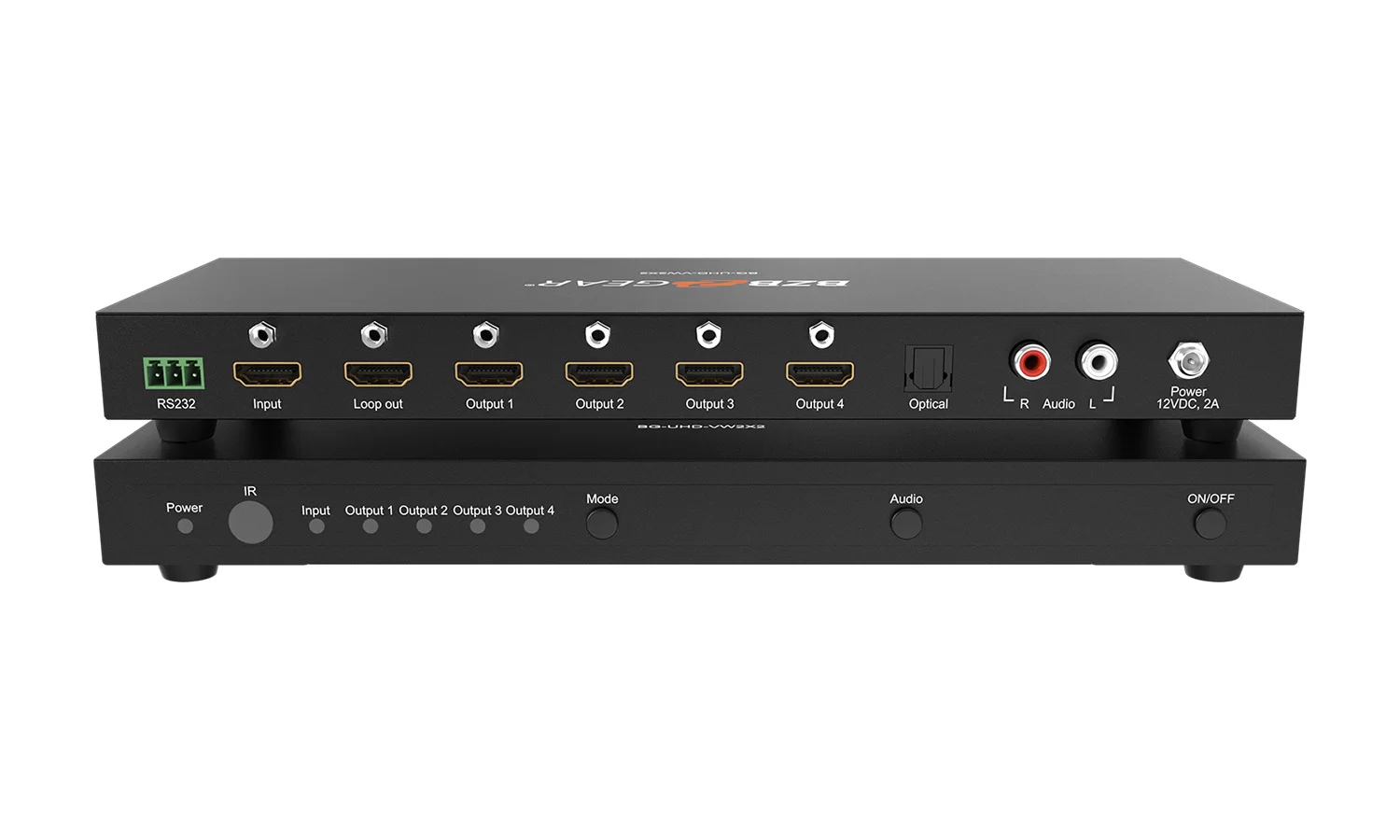

BZBGear BG-UHD-VW2X2 2x2 4K Video Wall Controller

The BG-UHD-VW2X2 exists to make a 2x2 wall quick: plug the displays in, choose the layout, set bezel correction, done. Output rotation of 180 degrees is there for inverted displays where the bezel would otherwise sit in the wrong place.

Input is HDMI 2.0 with HDCP 2.2 at up to 4K60 4:4:4, with a loop out at the same resolution and 600 MHz of bandwidth per channel. Audio comes off on HDMI, analog L/R and Toslink. It runs from a 12V 2A supply and draws under an amp.

HDMI resolution	Input: Up to 4k@60Hz 4:4:4 Loop Out: Up to 4k@60Hz 4:4:4 Video Wall Output: Up to 1080p@60Hz
Input cable distance	<=16ft/ 5m 24 AWG HDMI high speed Cable at 1080P@60Hz
Output cable distance	<=50ft/15m 24 AWG HDMI high speed Cable at 1080P@60Hz
Audio output	HDMI: PCM 2CH L\R: Stereo audio Toslink: PCM 2CH
External Power Supply	DC12V/2A
Dimensions	10 5/8" (L) x 4 3/8" (W) x 1 1/4" (H)
Weight	1 lb 11oz [765g]
HDMI version	HDMI2.0, HDCP2.2
