BZBGear BG-UHD-MVS42MA 4x2 4K Seamless Switcher and Quad Multiviewer

The BG-UHD-MVS42MA combines four HDMI sources and routes them to two displays, switching instantly between them or laying all four out on screen. Picture-in-picture and picture-by-picture modes are both available and window positions can be adjusted.

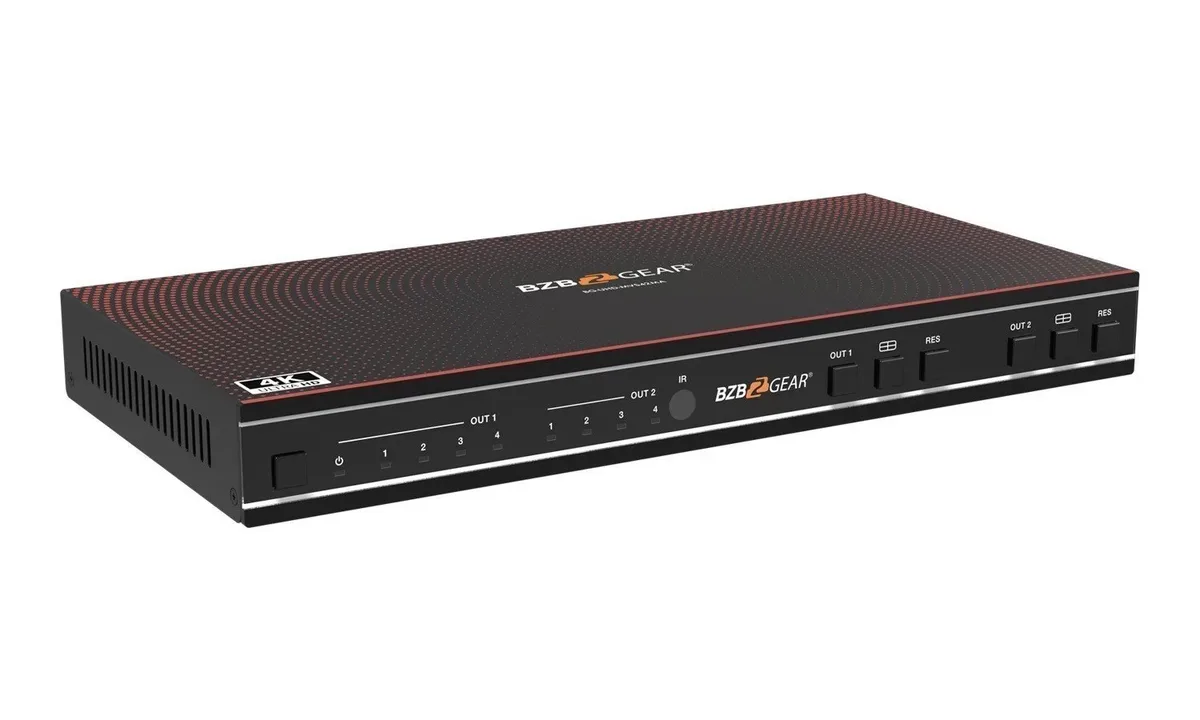

It runs HDMI 2.0b at 18 Gbps with HDCP 2.2 and 1.x, at up to 4K60 4:4:4 with 8, 10 or 12-bit colour. Each output has its own RCA and optical audio de-embedding, so two rooms can take different sound. Control is by panel, IR at 38 kHz or RS-232.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 / 1.x
Video Bandwidth	18Gbps
Video Resolutions	Up to 4K2K@60 4:4:4

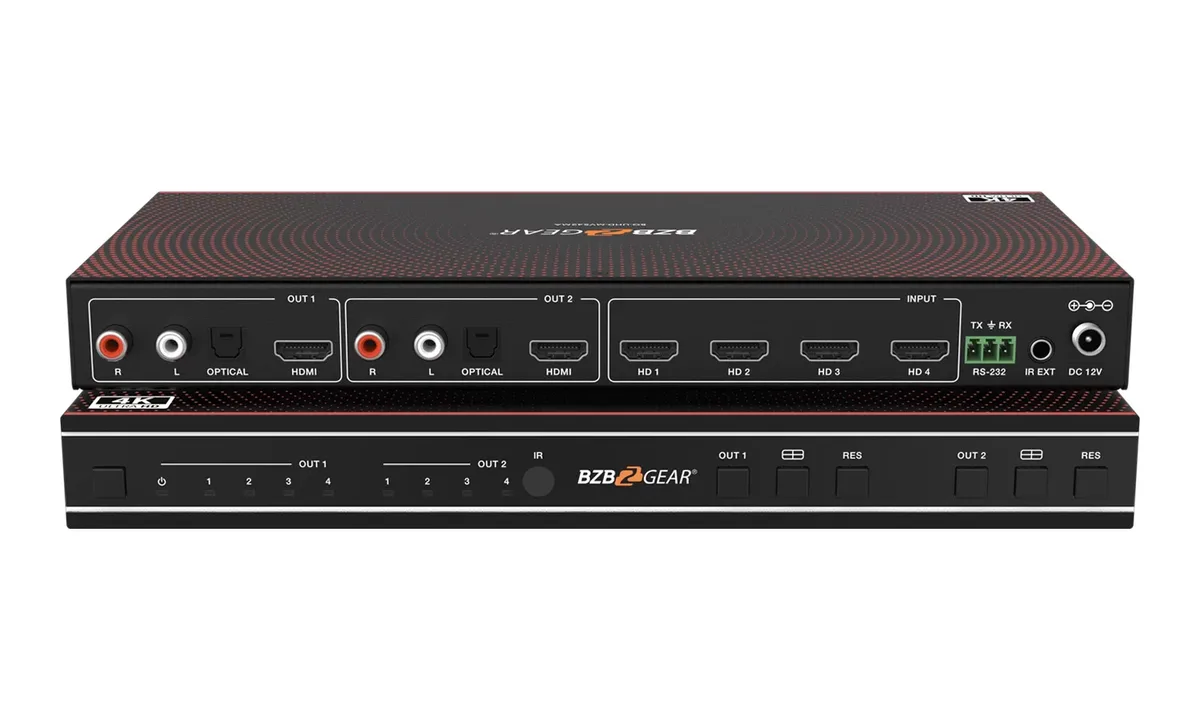

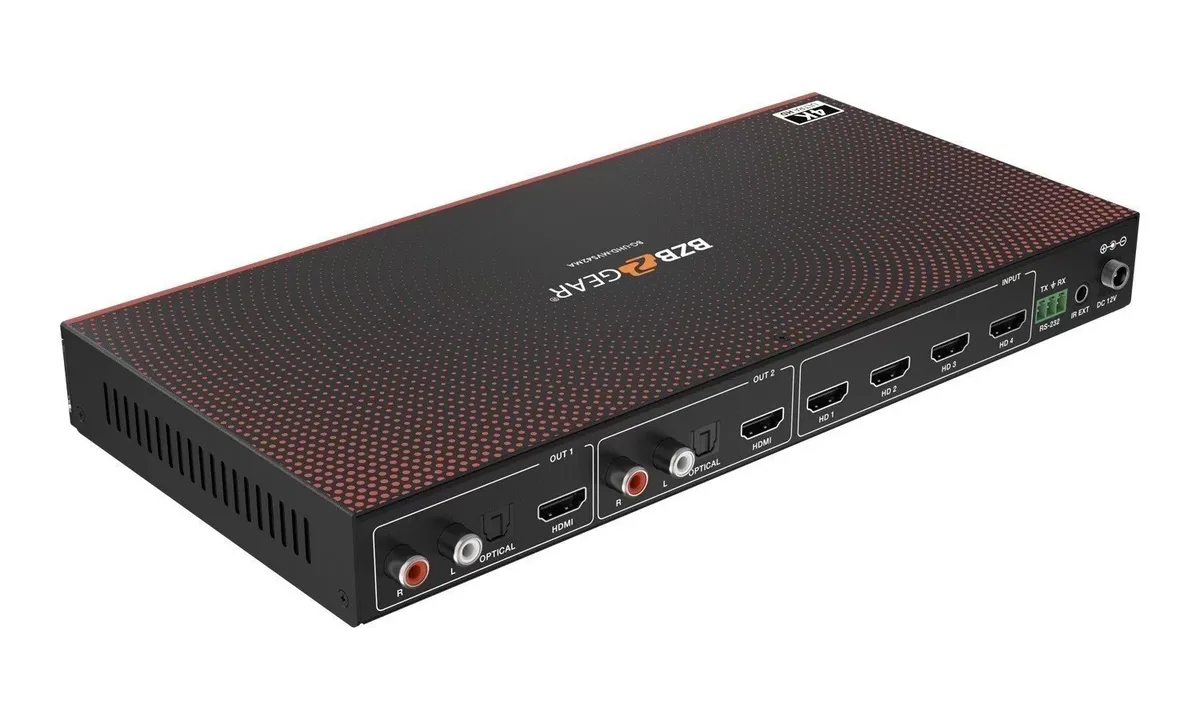

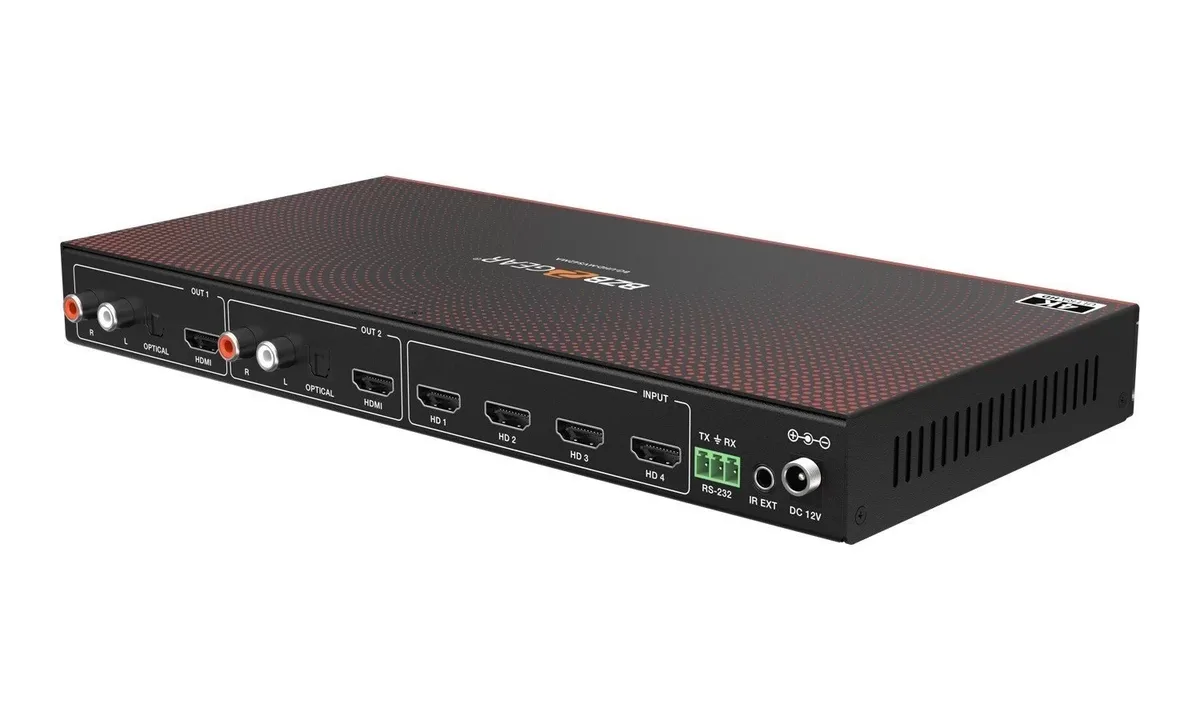

Input ports	4 x HDMI IN [Type A, 19-pin female]
Output ports	2 x HDMI OUT [Type A, 19-pin female] 2 x L/R OUTPUT [RCA] 2 x OPTICAL OUTPUT [S/PDIF]
Audio Formats	HDMI audio: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio Analog audio [3.5mm L/R]: PCM2.0 Optical fiber audio: Dolby PCM2.0/5.1/7.1CH, Dolby Digital/plus, DTS 5.1
Color Depth	8/10/12-bit
