BZBGear BG-UHD-QVP-4X2 4x2 Seamless Switcher and Scaler with USB Capture

The BG-UHD-QVP-4X2 routes any of four 4K HDMI sources to two displays at up to 4K60 4:4:4 8-bit, with seamless switching, scaling and multiview layouts. HDMI is 2.0a at 600 MHz and 18 Gbps with HDCP 2.2 and 1.4.

What sets it apart is the built-in USB 3.0 capture: the program feed is automatically scaled down and presented to a computer as a video device at up to 1080p with 2-channel audio, so a classroom or a boardroom can switch four sources into a Zoom or Teams call without a separate capture box. Recording formats are YUY2 over USB 3.0 and MJPG over USB 2.0.

HDMI complianceHDMI 2.0a
HDCP compliance1.4 / 2.2
Video bandwidthHDMI (600MHz [18Gbps])
Video Format SupportHDMI 2.0
Recording Video FormatYUY2 (USB3.0), MJPG (USB2.0/3.0)

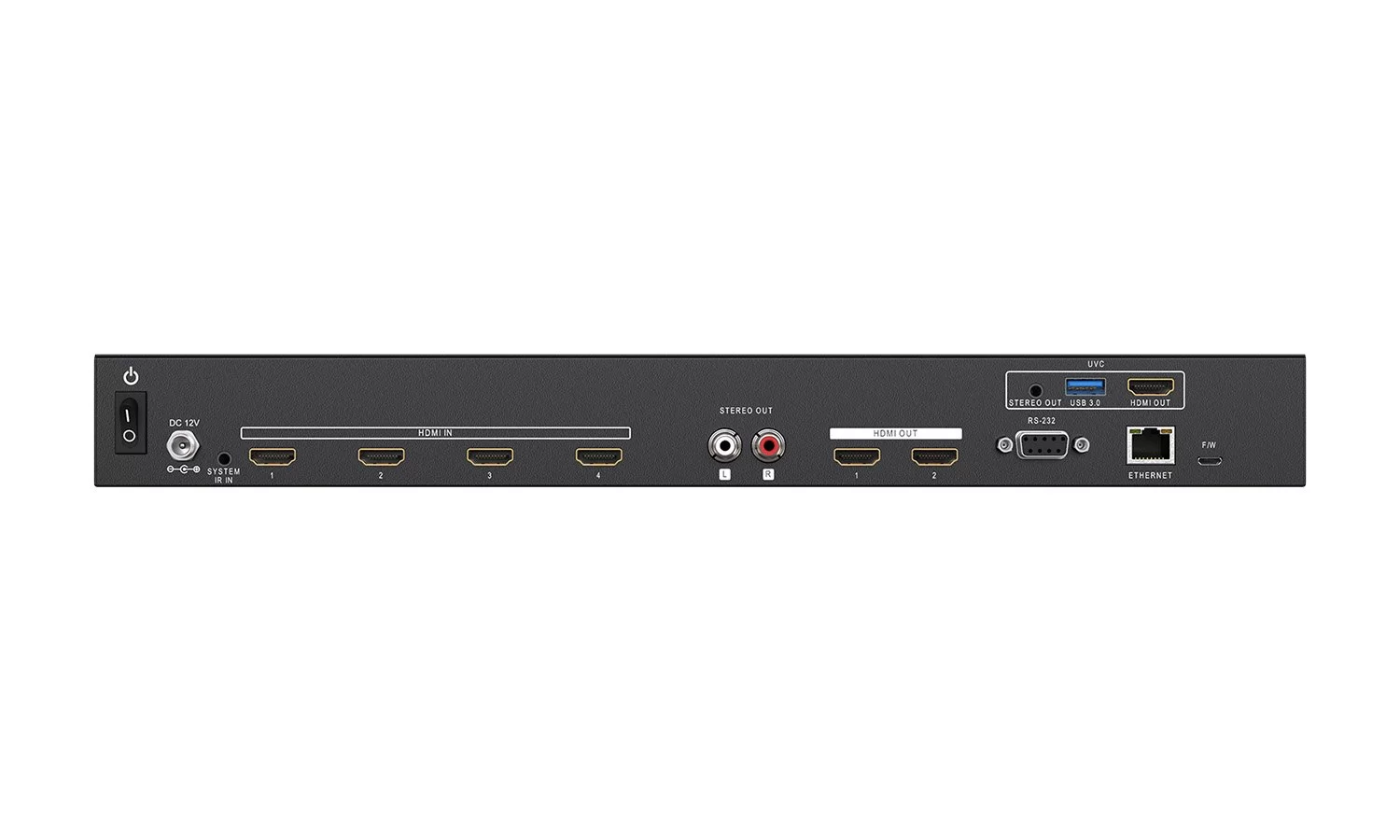

Input4x HDMI + 1x RS 232 + 1x RJ 45(Ethernet) + 1x 3.5mm (IR)
Output2x HDMI + 1x USB + 2x RCA + 1x 3.5mm
RS-232 connectorDE-9 [9-pin D-sub female]
Seamless 4x2 Multiviewer is Quick & Easy to Setup - BG-UHD-QVP-4X2
BZBGEAR 4K Quad-View Multiviewer with USB Capture Card - BG-UHD-QVP-4X2
Watch, Capture & Showcase Up to Four HDMI 4K Sources on 1 or 2 Displays with BZBGEAR BG-UHD-QVP-4X2
