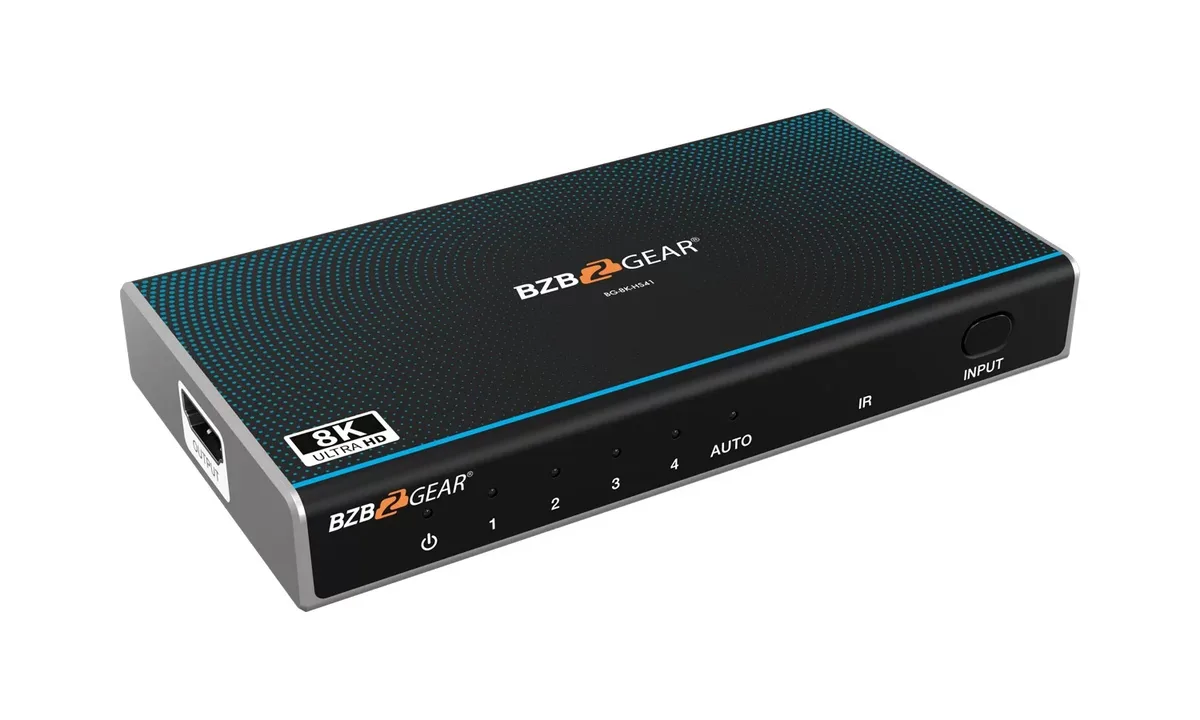

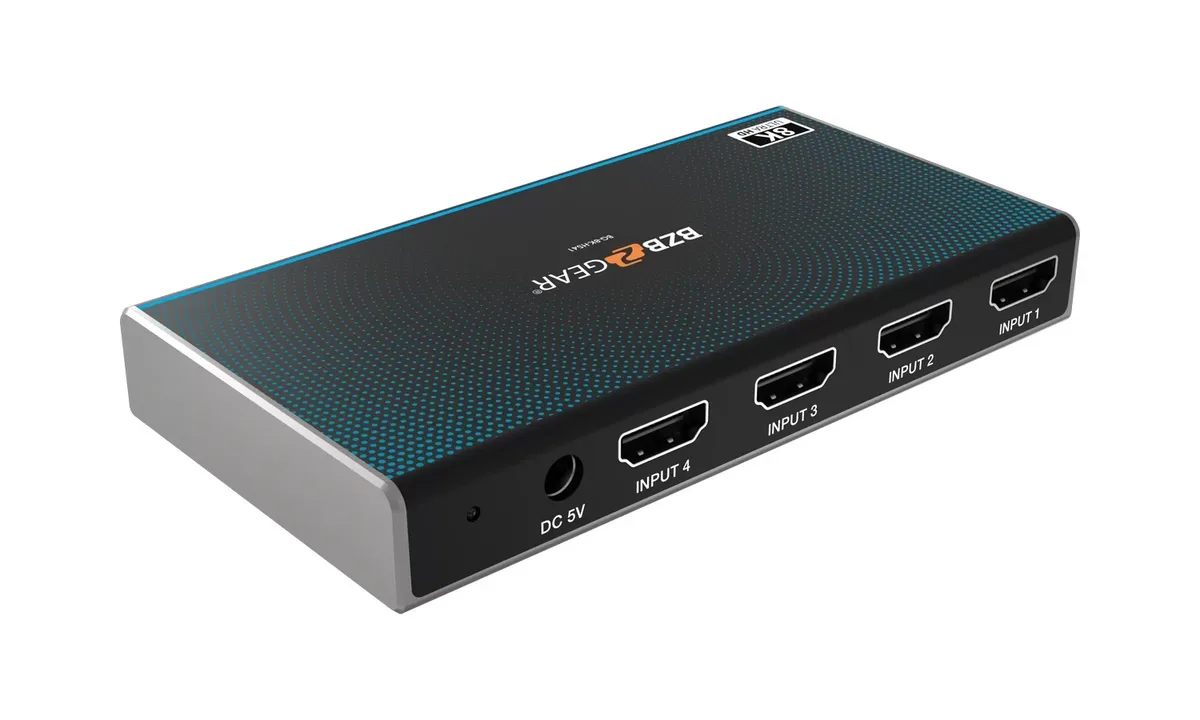

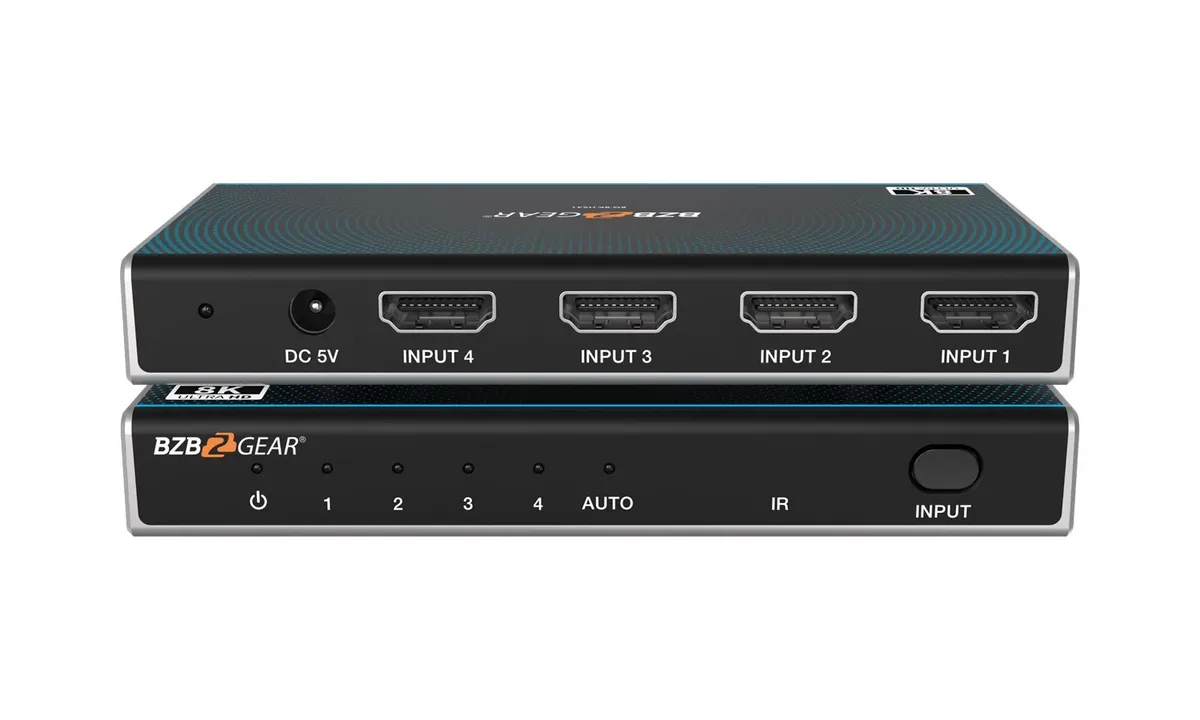

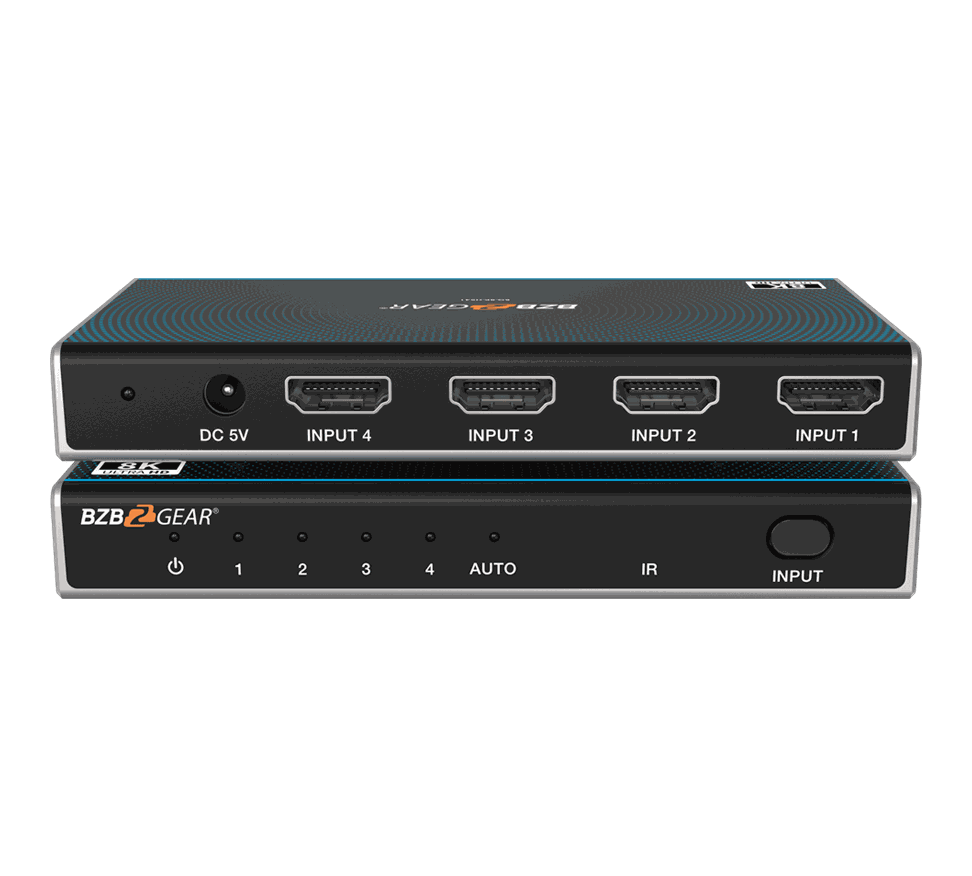

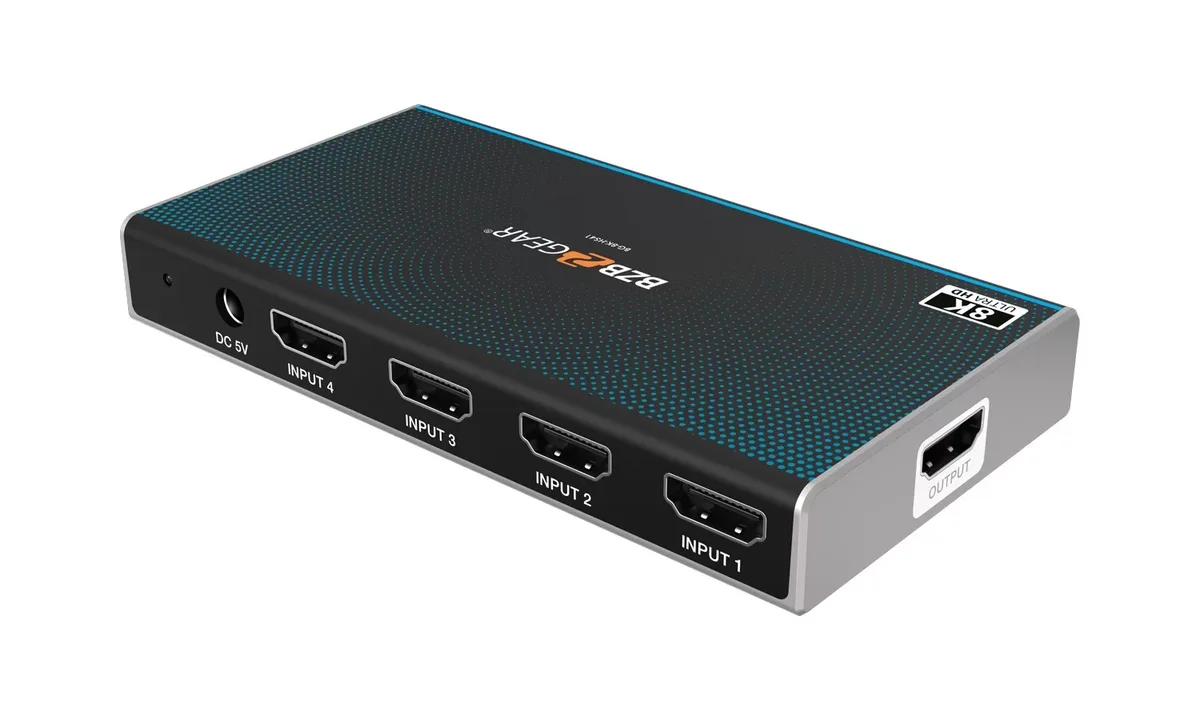

BZBGear BG-8K-HS41 4x1 Ultra Slim 8K HDMI Switcher
The BG-8K-HS41 is the plain, thin 4x1 switcher in BZBGear's 8K range: four HDMI inputs, one output, and 48 Gbps of bandwidth carrying up to 8K60 4:4:4 and 8K60 4:2:0 12-bit with HDCP 2.3.
There is no audio breakout and no control port, which is the point at this price; it sits behind a display and gives four sources one cable in. LPCM, Dolby Digital, Dolby TrueHD and DTS pass through. The enclosure is 122 x 65 x 19 mm and weighs 88 g, with a 5V supply included.
| HDMI Compliance | HDMI 2.1 |
|---|---|
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps |
| Video Resolution | Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit, 1080p240Hz |
| Input | 4xHDMI IN [Type A, 19-pin female] |
| Output | 1xHDMI OUT [Type A, 19-pin female] |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Color Depth | 8-bit, 10-bit, 12-bit |
