BZBGear BG-Commander-Ultra Switcher and PTZ Controller

The Commander Ultra puts a four-channel 4K production switcher and a PTZ joystick under the same hands, which removes the usual split between the person cutting the show and the person framing it. Five HDMI inputs and four HDMI outputs run at up to 4K60, with HDR supported in and out and HDR to SDR conversion on board.

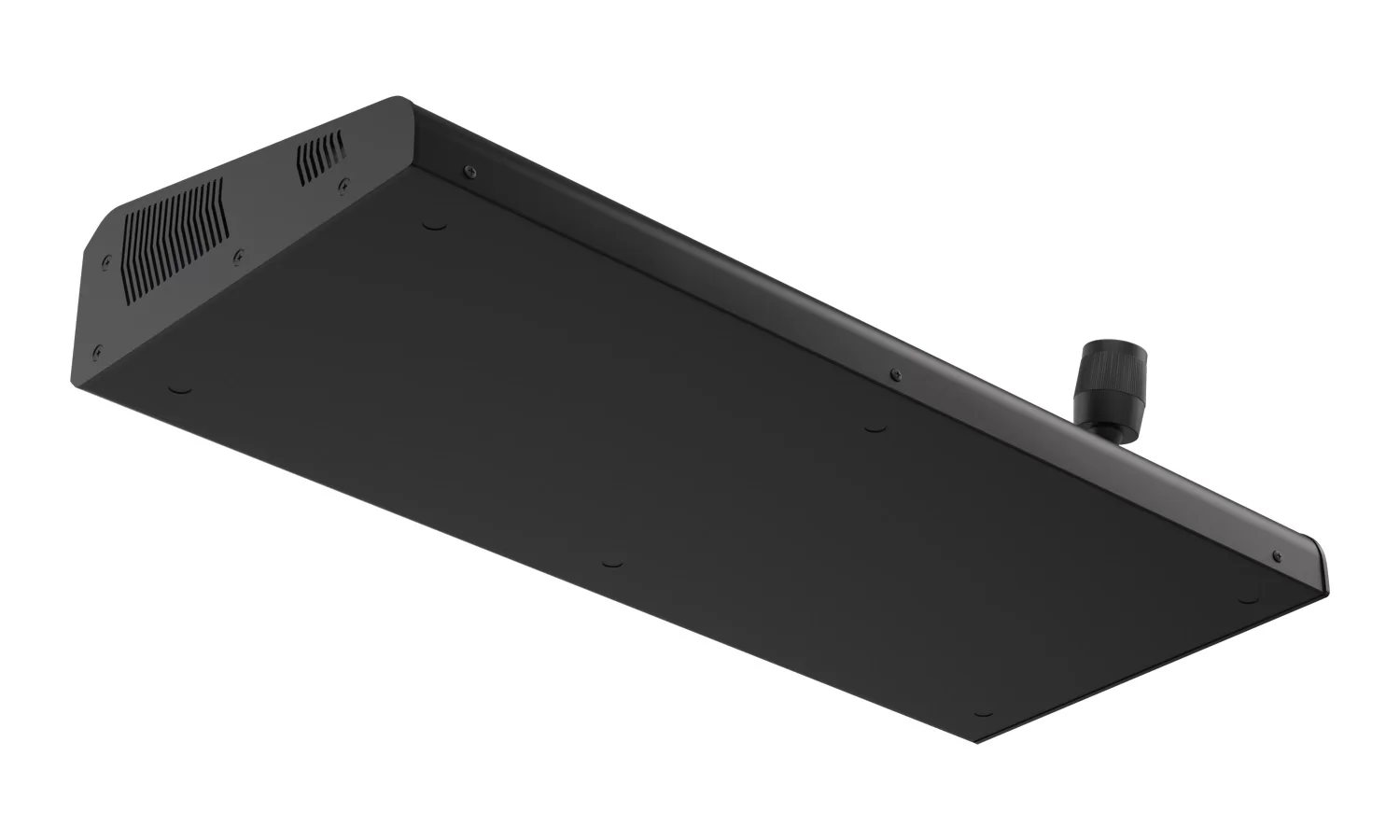

Two XLR inputs feed the embedded audio mixer, and camera control goes out over Ethernet, RS-232 or RS-422 using VISCA, VISCA over IP, Pelco-D or Pelco-P. The chassis is metal and wall-mountable.

HDMI compliance	HDMI 2.0
HDCP compliance	HDCP 1.4/2.2
Video support	Up to HDR 4K2K@60 (4:2:0 10 bits) / 4K2K@60 (4:4:4 8 bits)
Video bandwidth	Single-link 600MHz (18Gbps)
HDR	Supports HDR for both inputs and outputs, HDR to SDR conversion

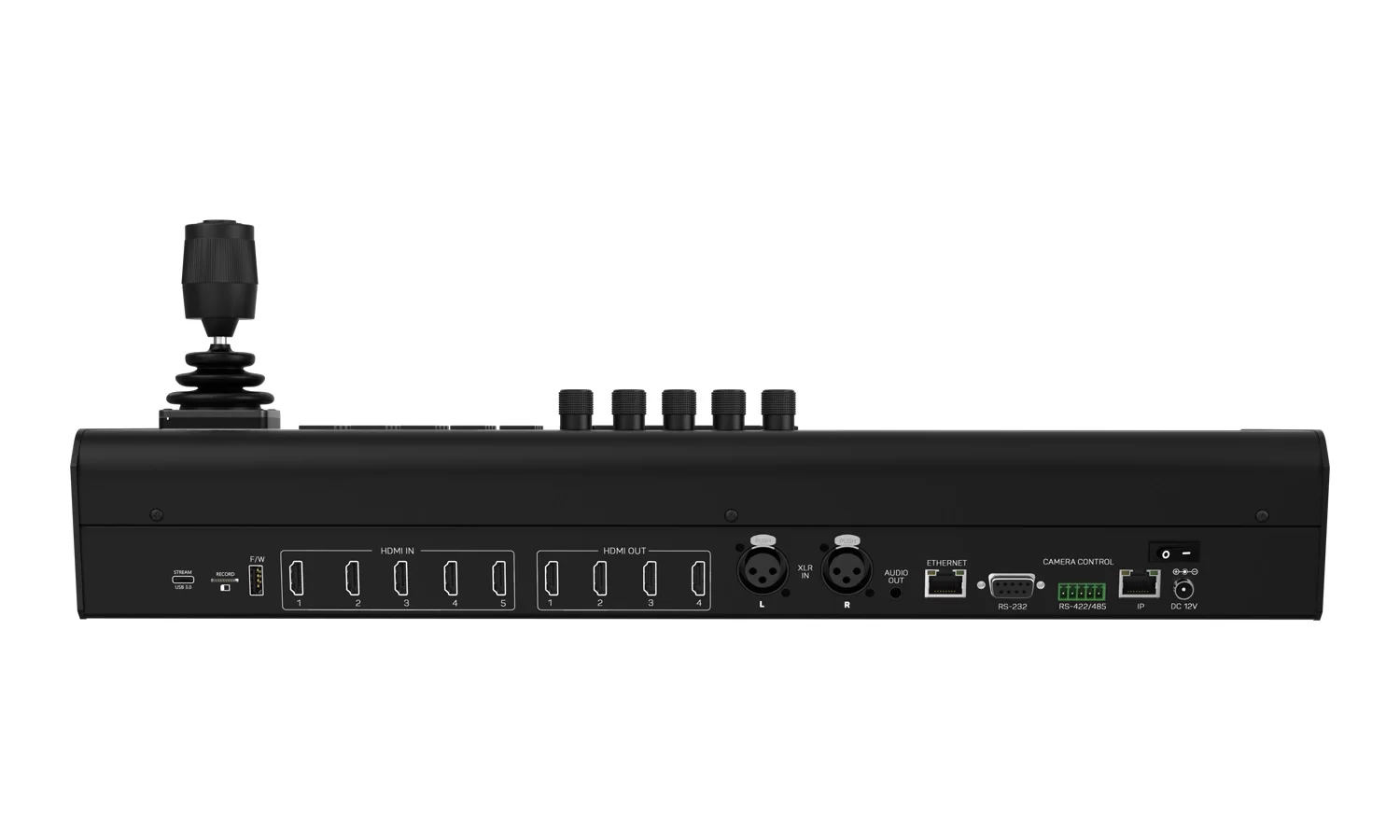

Inputs	5x HDMI 2x XLR 2x RJ-45 (LAN) 1x USB (Type A) 1x RS-232 1x Terminal Block (RS-422)
Outputs	4x HDMI 1x 3.5mm 1x USB-C
Camera control	Remote control of multiple camera settings: pan, tilt, zoom, focus, iris, white balance Protocols: VISCA, VISCA over IP, Pelco-D, Pelco-P
Audio mixer	Yes
Power supply	12V DC
