BZBGear BG-8K-HS41A 4x1 8K HDMI Switcher with Audio De-Embedding

The BG-8K-HS41A switches four HDMI sources onto a single display at up to 8K60 4:2:0 12-bit, 8K30 4:4:4 12-bit and 4K120 4:4:4 12-bit, running 48 Gbps FRL and 18 Gbps TMDS with HDCP 2.3.

Audio de-embedding sends sound to optical S/PDIF or an analog stereo output, and ARC and eARC support means the switcher can also take audio back from the TV. CEC and EDID management are built in, and there is no added audio or video latency through the box.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit, 1080p240Hz

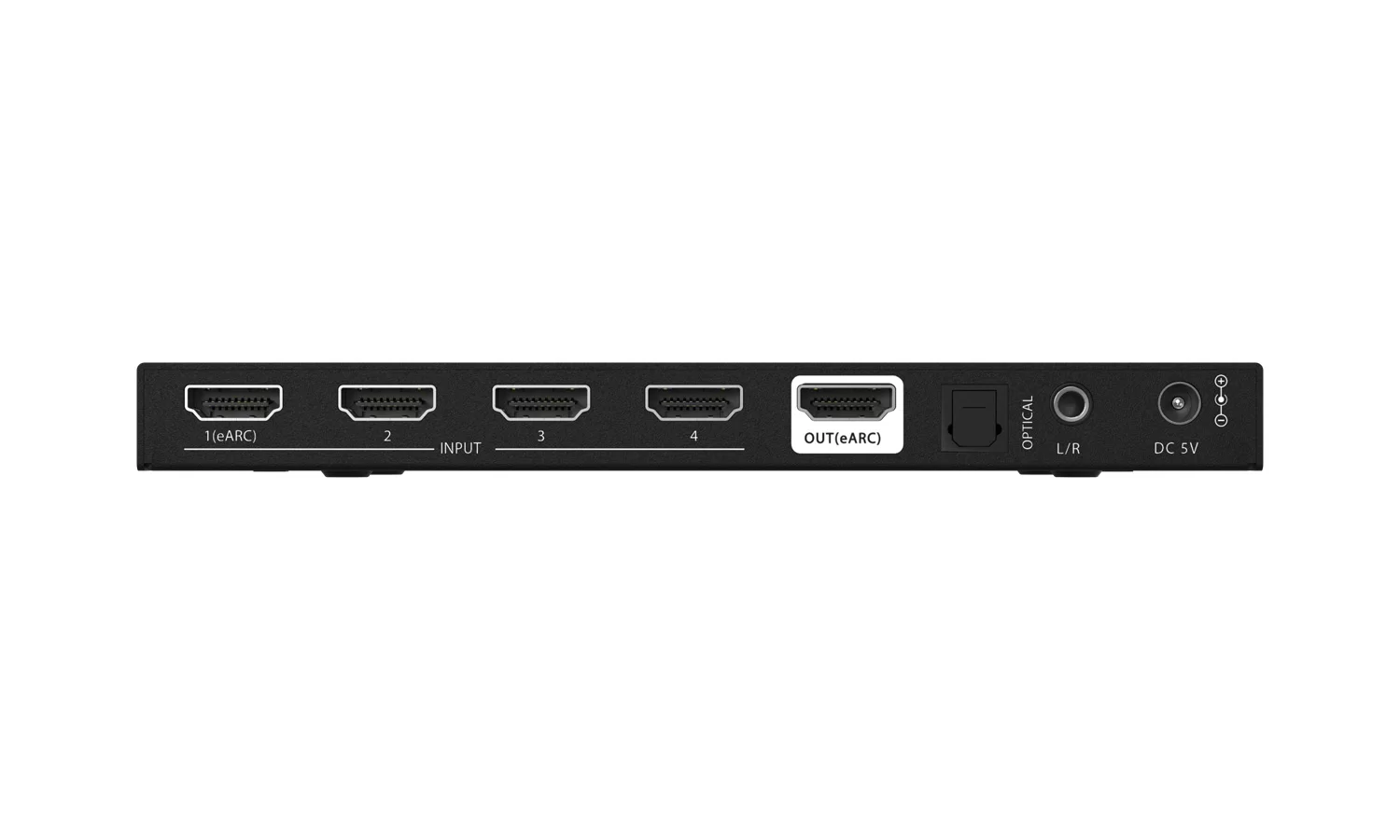

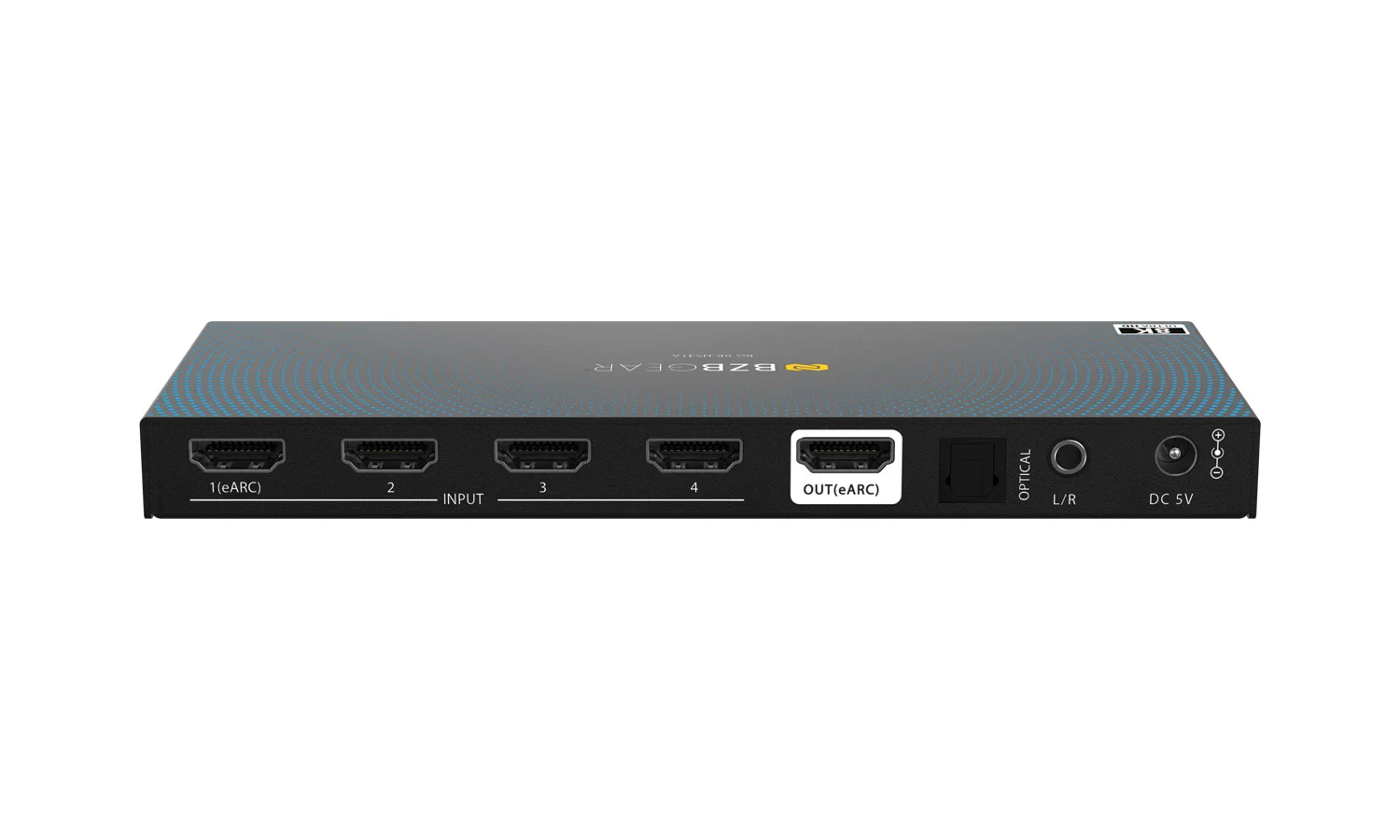

Input	4 x HDMI IN [Type A, 19-pin female]
Output	1 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Audio Formats	HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD Audio De-embedded Output: Optical: LPCM 2.0CH/Dolby/DTS 5.1CH Analog: LPCM 2.0CH
Color Depth	8/10/12bit
