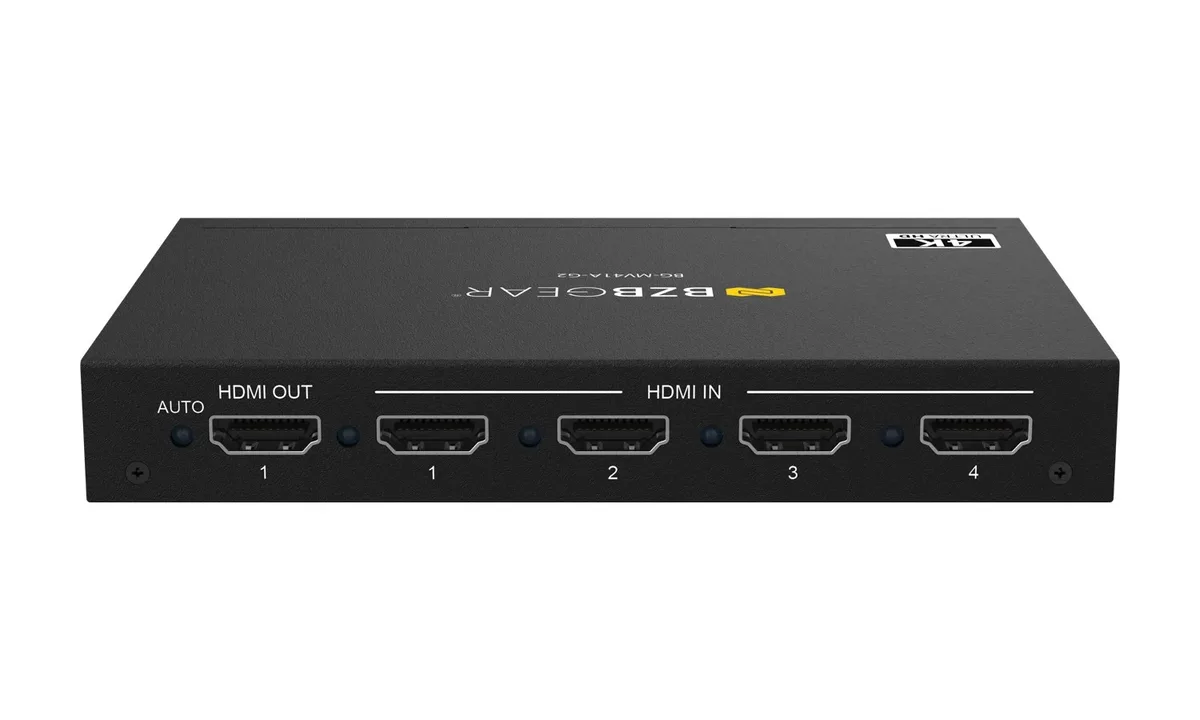

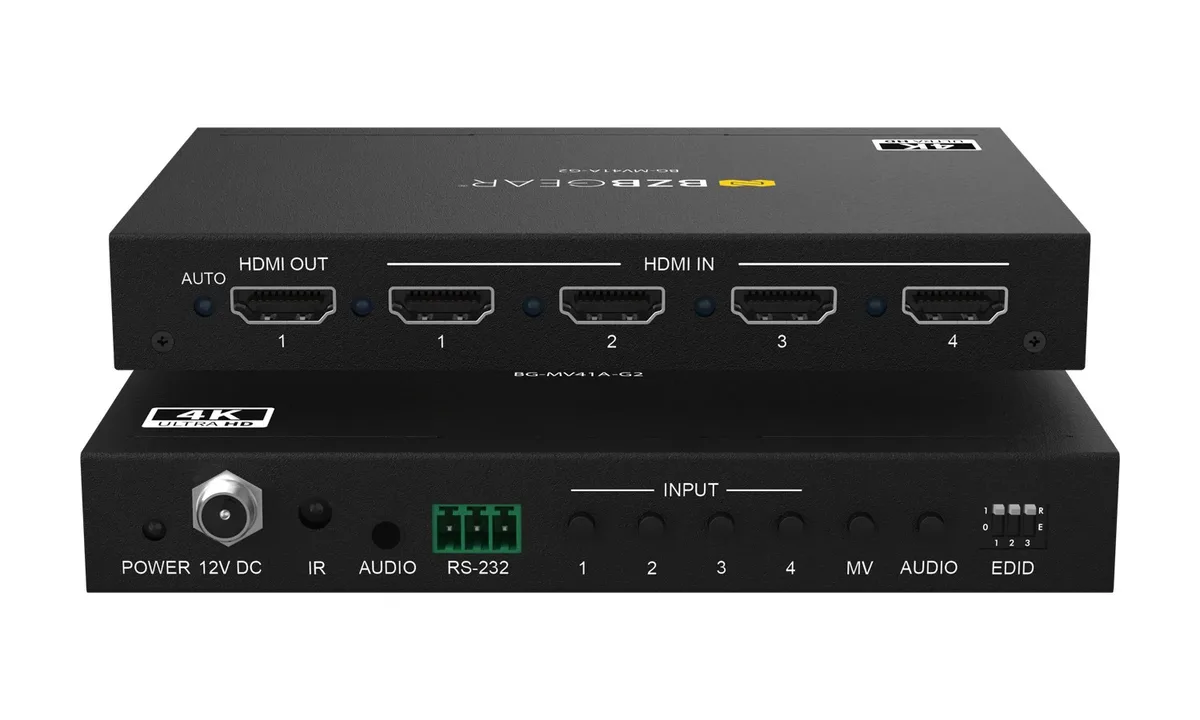

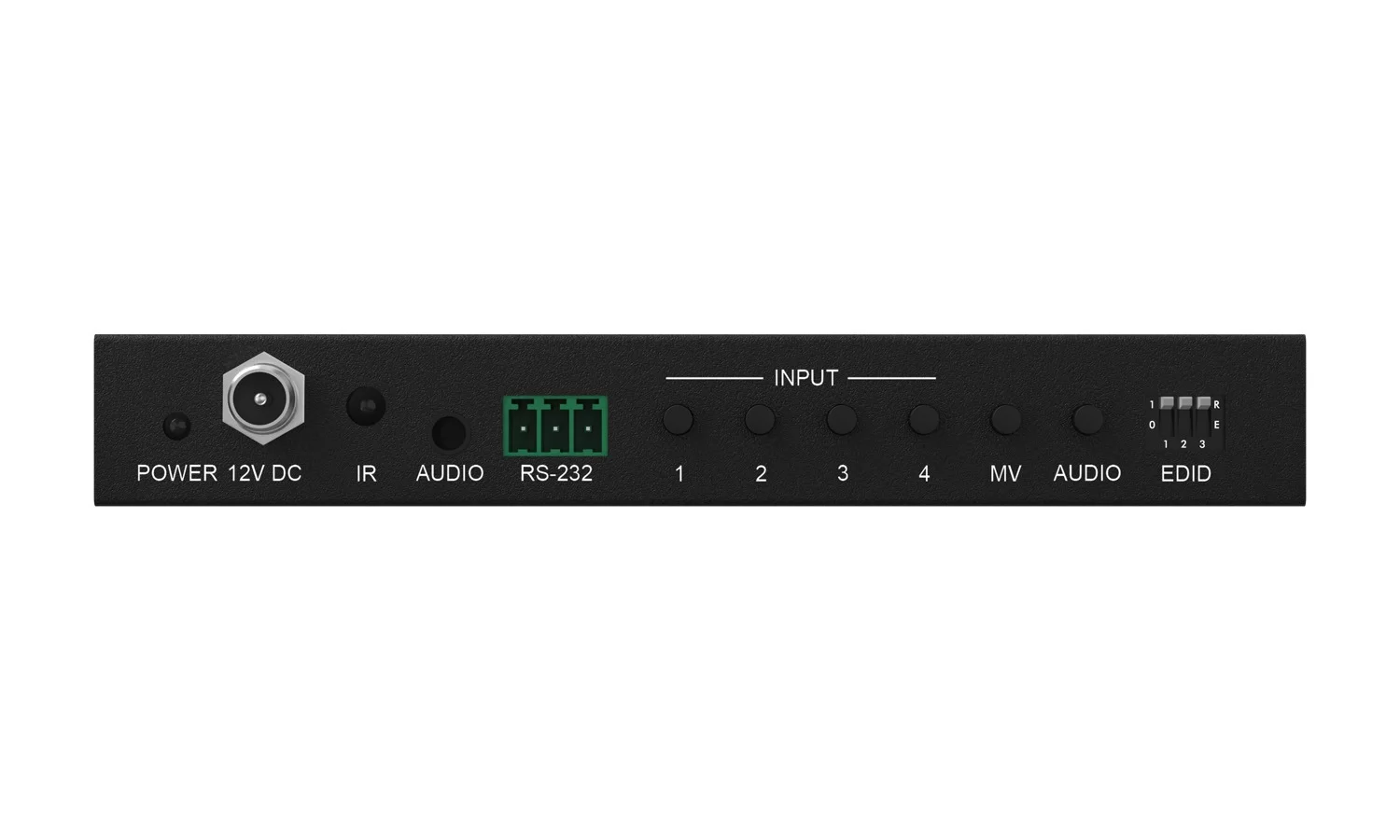

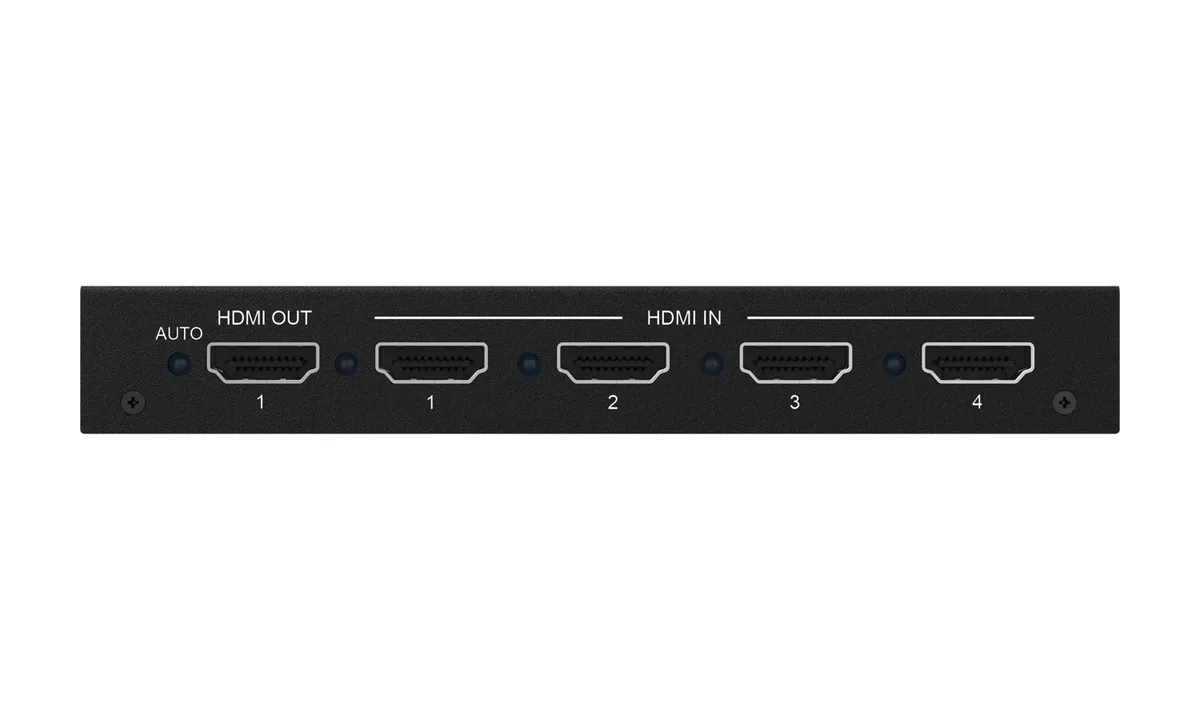

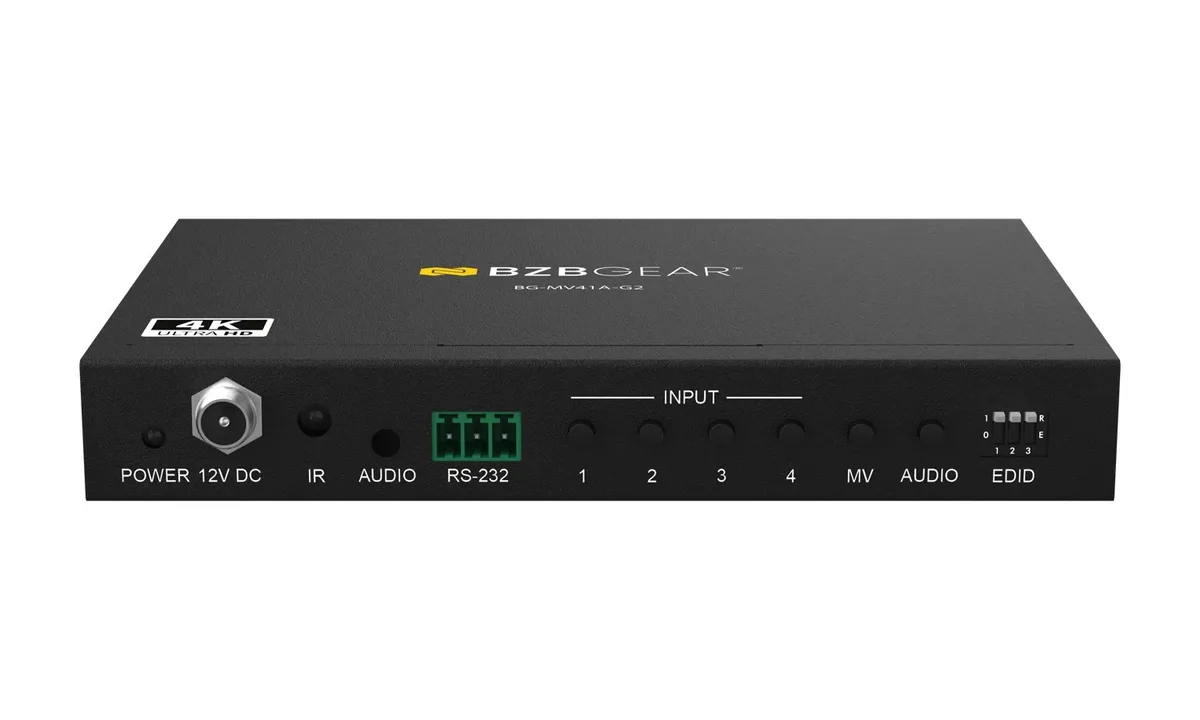

BZBGear BG-MV41A-G2 4x1 Seamless Switcher and Quad Multiviewer

The BG-MV41A-G2 puts up to four HDMI sources on a single display, in eight selectable modes covering single view, picture-in-picture, picture-by-picture, triple view and quad view. Switching between them is seamless, with an on-screen display to show what is selected.

Video runs to 4K30 on a 10.2 Gbps HDMI 1.4b link with HDCP 1.4. Audio is selected independently of video and comes out on the analog port, carrying LPCM, Dolby Digital, Dolby Digital Plus and DTS. Input switching can be automatic or manual, EDID management is built in, and control is by front panel, IR remote or RS-232. The unit is 148.5 x 103 x 21.5 mm and draws 10W.
