BZBGear BG-MC Series Modular 4K60 Matrix Switcher

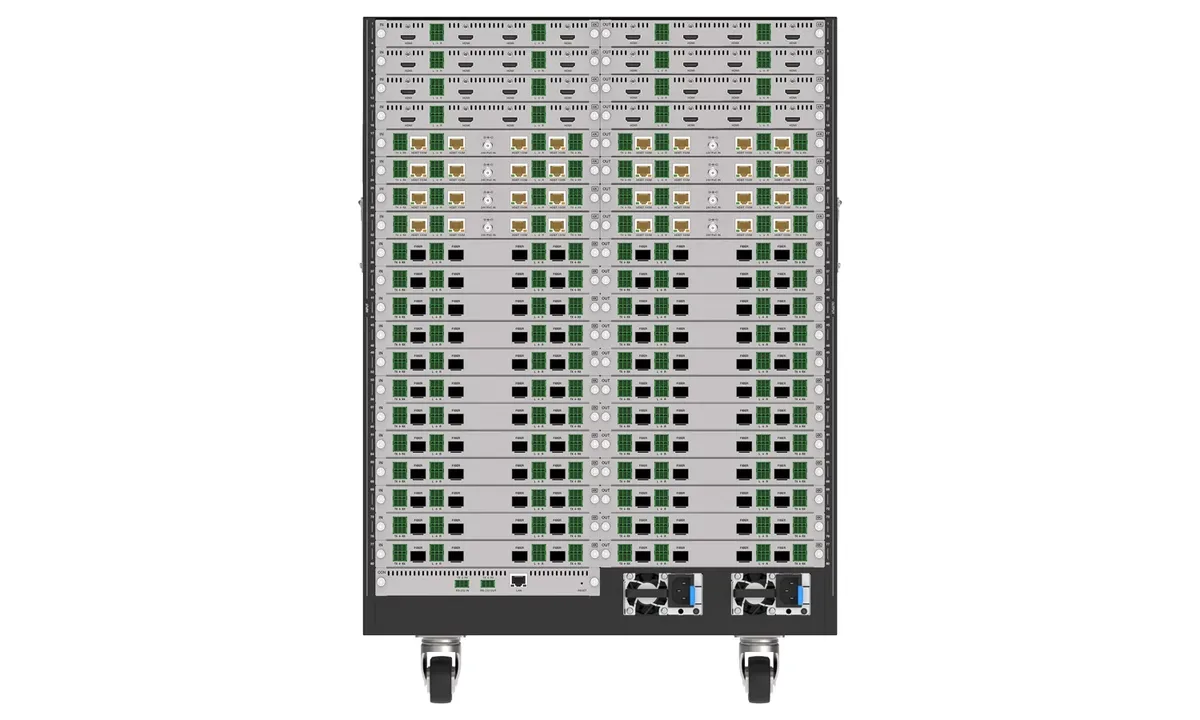

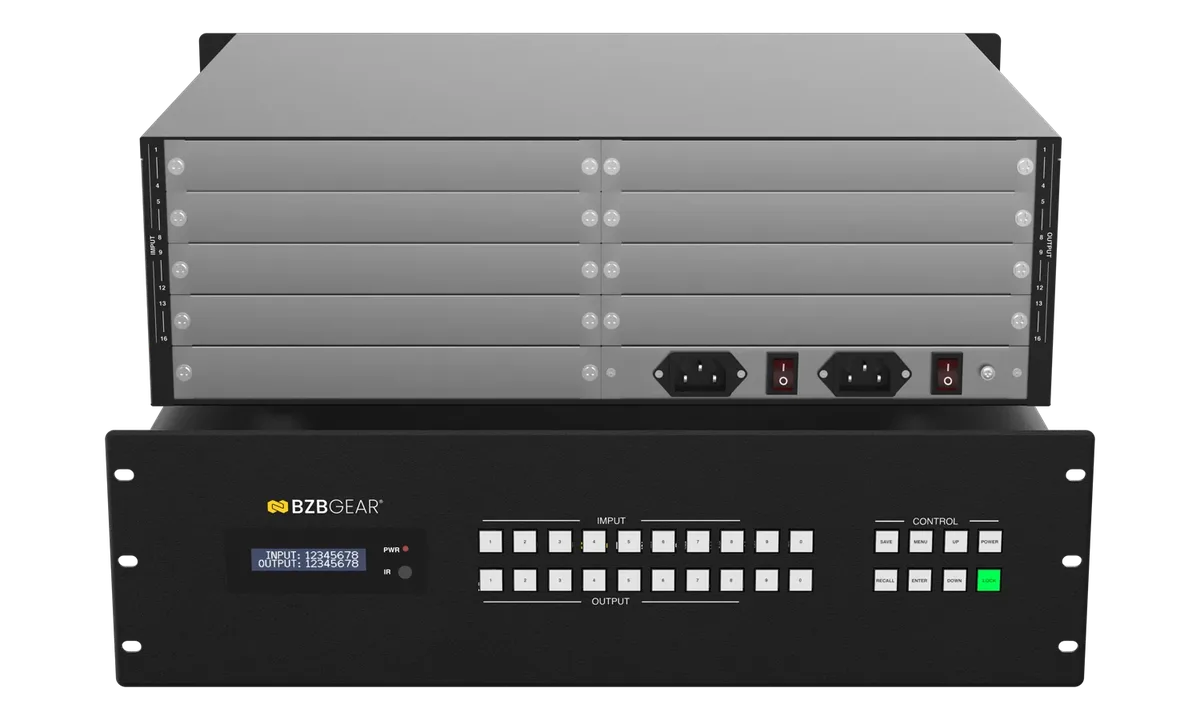

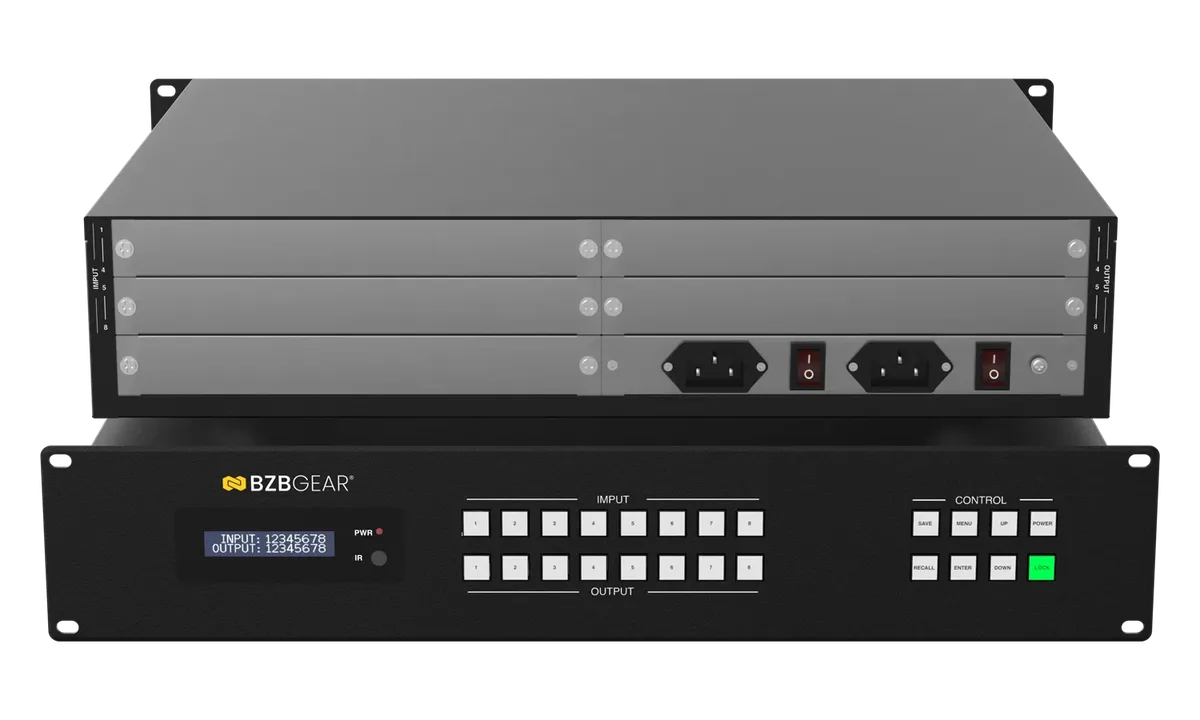

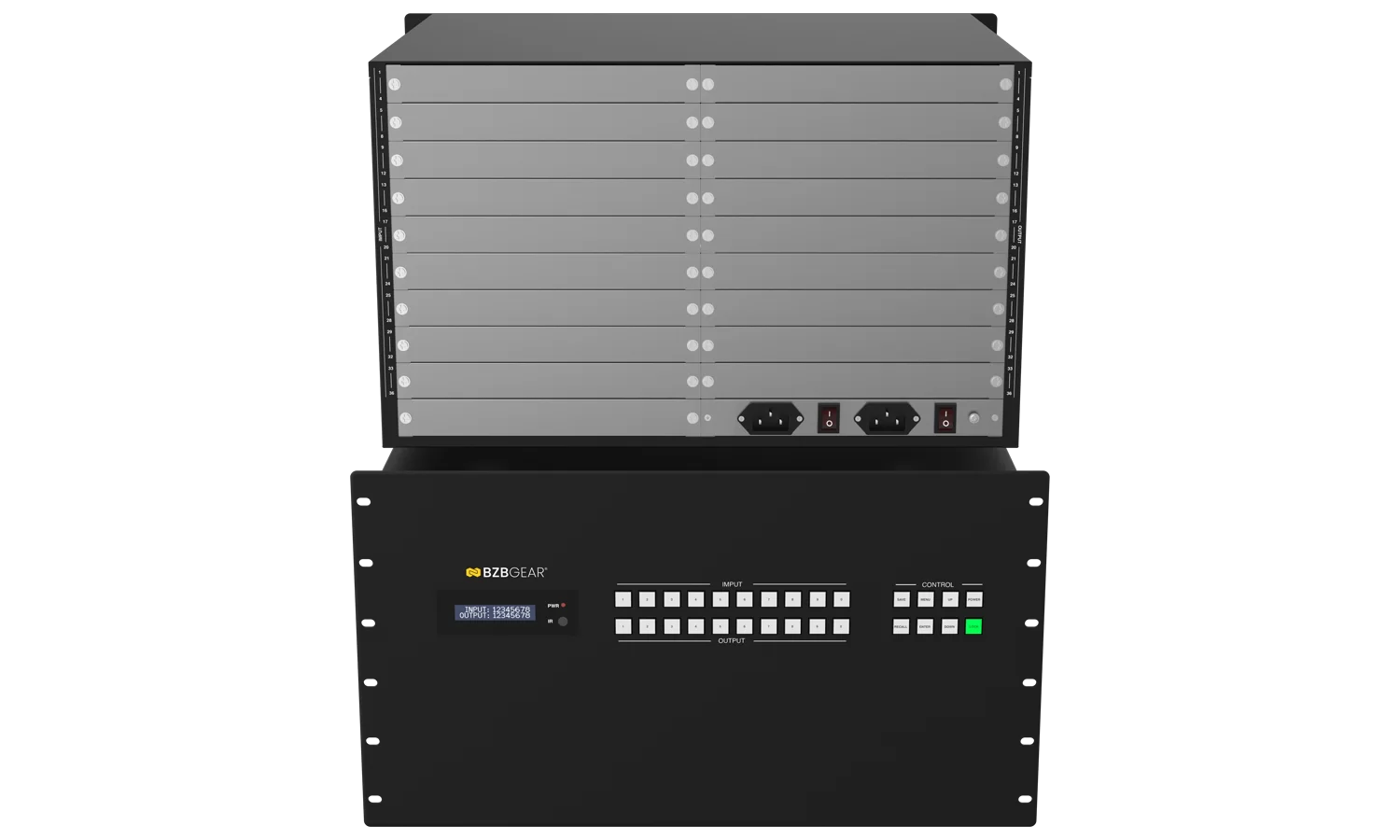

The BG-MC series is a modular matrix: an 8x8, 16x16 or 36x36 chassis, into which four-channel input and output cards are fitted to match the signals a site actually has. HDMI, DVI-U, VGA, SDI, HDBaseT at 70, 100 or 150 m, and fiber cards are all available, in 2K and 4K versions, so a room with legacy VGA sources and a control room on fiber can be served from one frame.

Switching is pure hardware with no compression and no latency, at 18 Gbps and up to 4K60 4:4:4 with HDCP 2.2, and gen-lock keeps outputs within 0.1 ms of each other for video wall splicing up to 36x36. Audio embedding and de-embedding, EDID management and 64 scene presets are built in, and control is by front panel LCD, IR, RS-232, TCP/IP or the web interface. Choose the chassis, cards, extenders and control card you need from the list below; every part is ordered individually.
