BZBGear BG-MVS4X4-4KL 4x4 Seamless Matrix and Video Wall Processor

The BG-MVS4X4-4KL runs in two modes. As a 4x4 matrix it routes any of four HDMI inputs to any of four outputs with seamless switching; as a video wall processor it splits one source across a 2x2, 4x1 or 1x4 arrangement of screens.

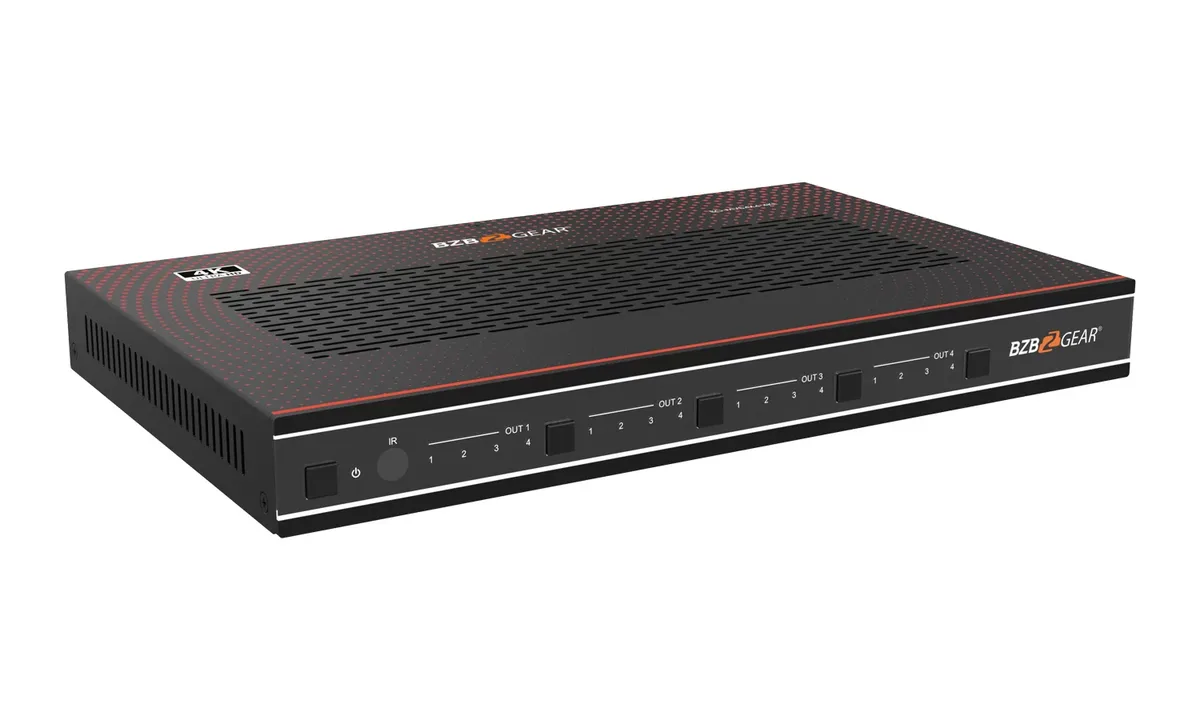

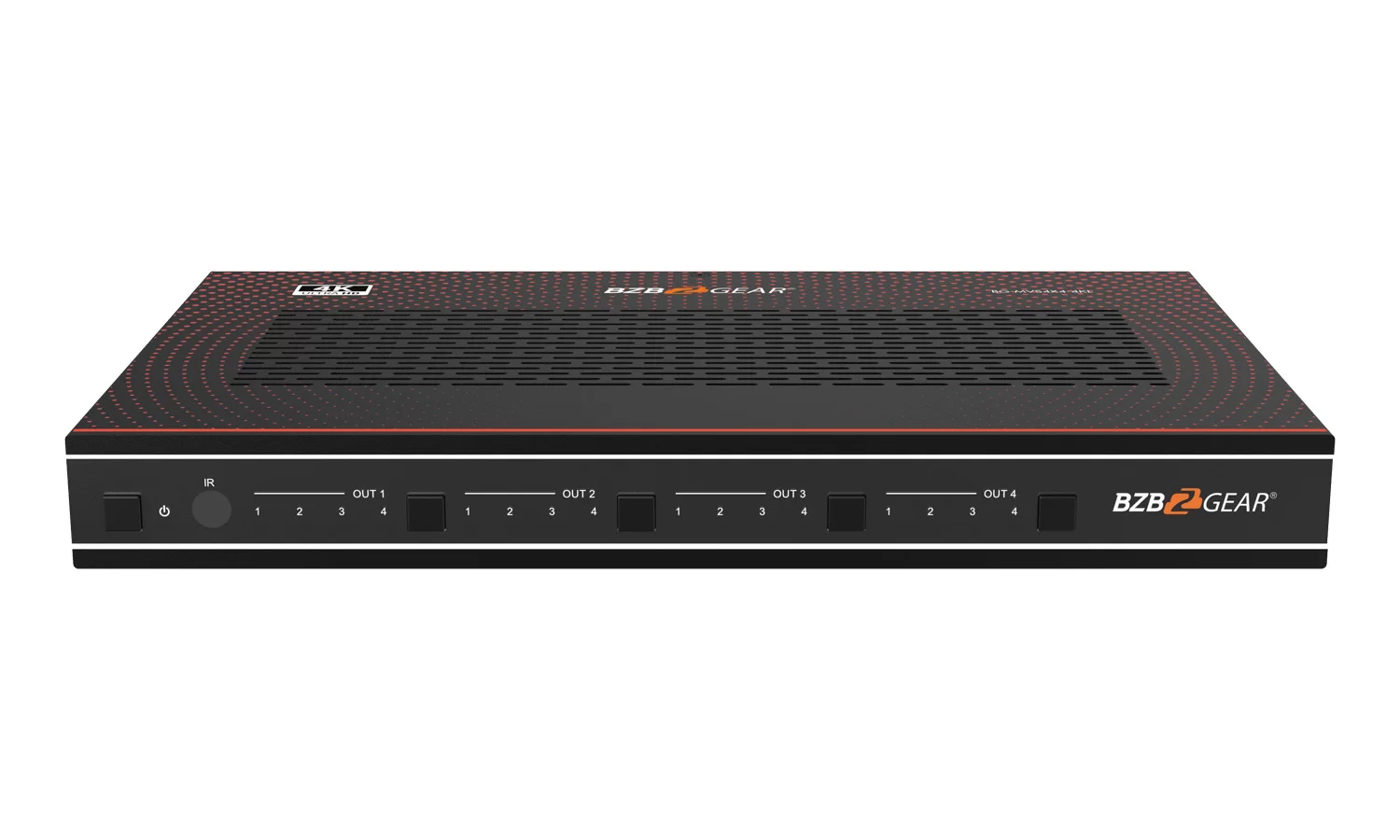

Video is HDMI 2.0b at 594 MHz and 18 Gbps with HDCP 2.2 and 1.4, taking inputs from VGA and WUXGA up to 4K60. Control comes from the front panel, IR at 38 kHz, RS-232, TCP/IP, the built-in web interface or the BZBGear Switch Control app, so it works standalone or under a third-party control system.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/1.4
Video Bandwidth	594MHz/18Gbps
Video Resolutions	Input: VGA-WUXGA (up to 1920x1200@60Hz), 480i-4K (3840x2160@60Hz 4:4:4, 4096x2160@60Hz 4:4:4)
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
Color Depth	8/10/12-bit
Color Space	RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0

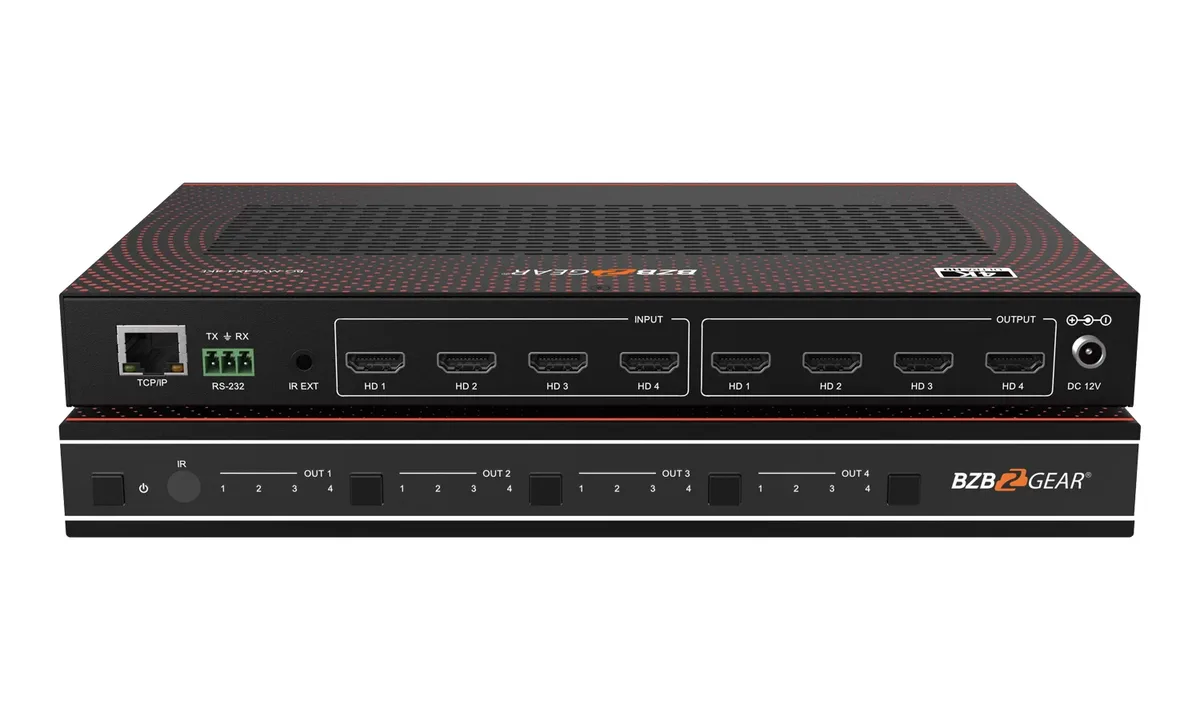

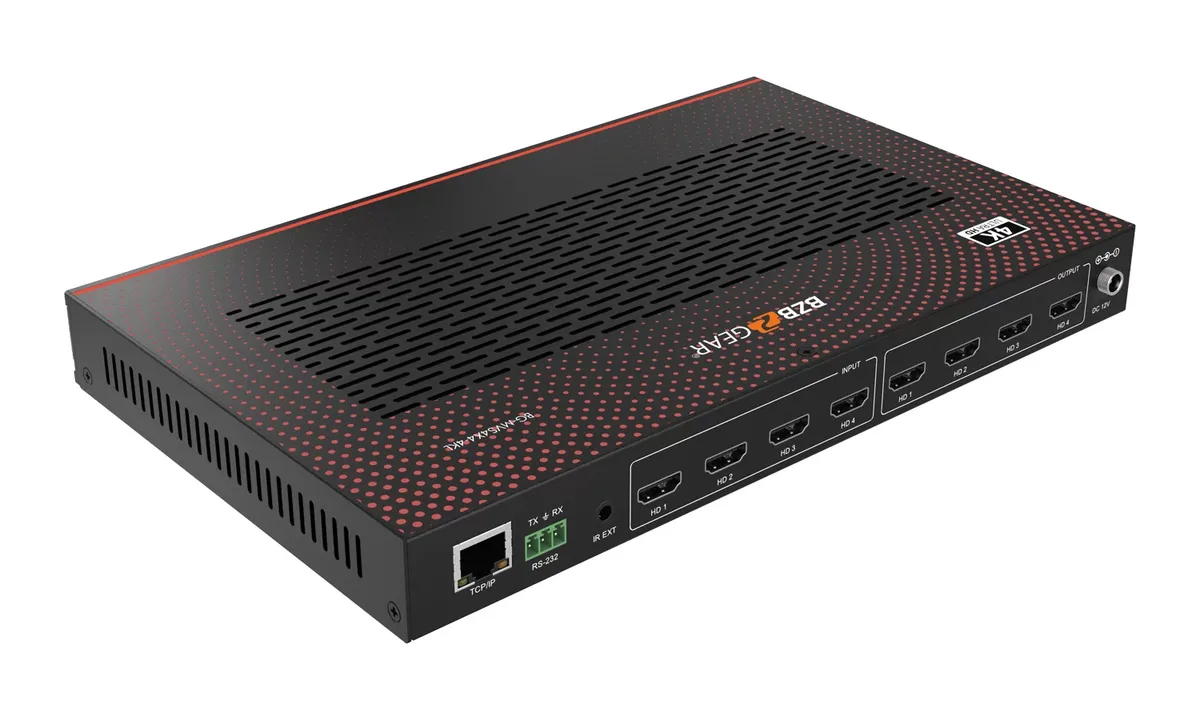

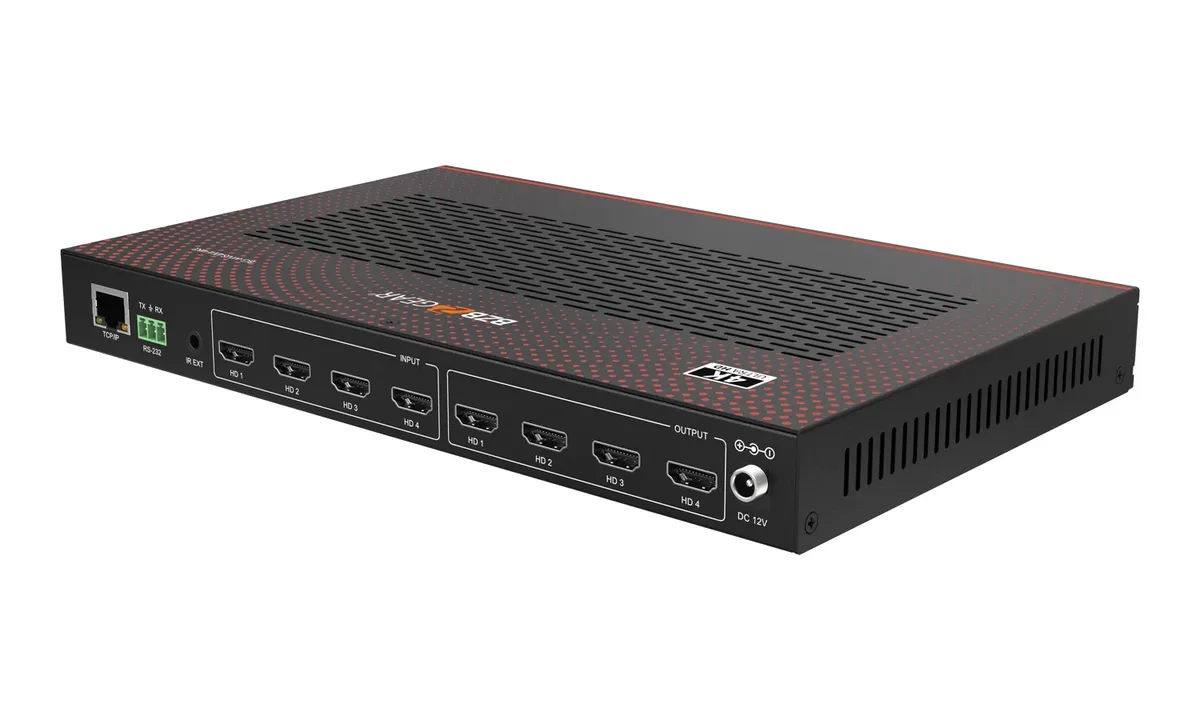

Control	1 x RS-232 [3pin-3.81mm phoenix connector] 1 x TCP/IP [RJ45] 1 x IR EXT [3.5mm Stereo Mini-jack]
