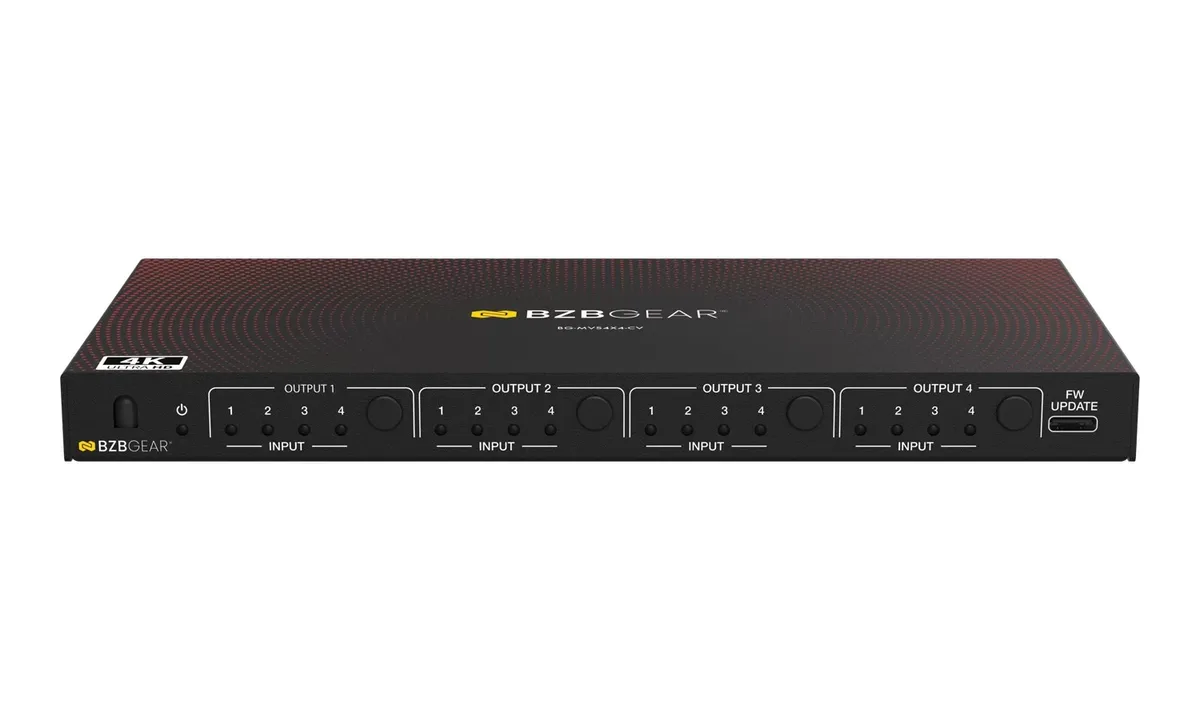

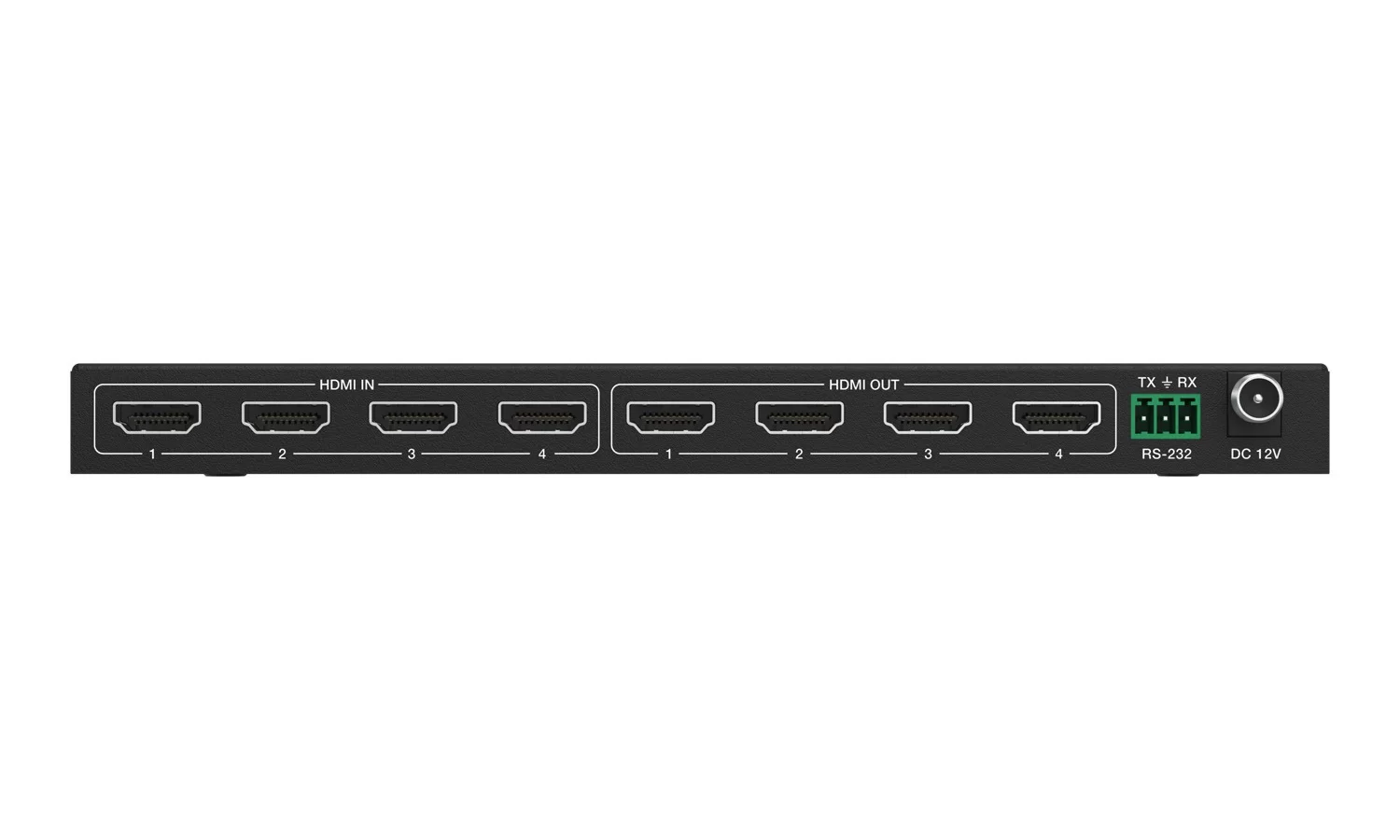

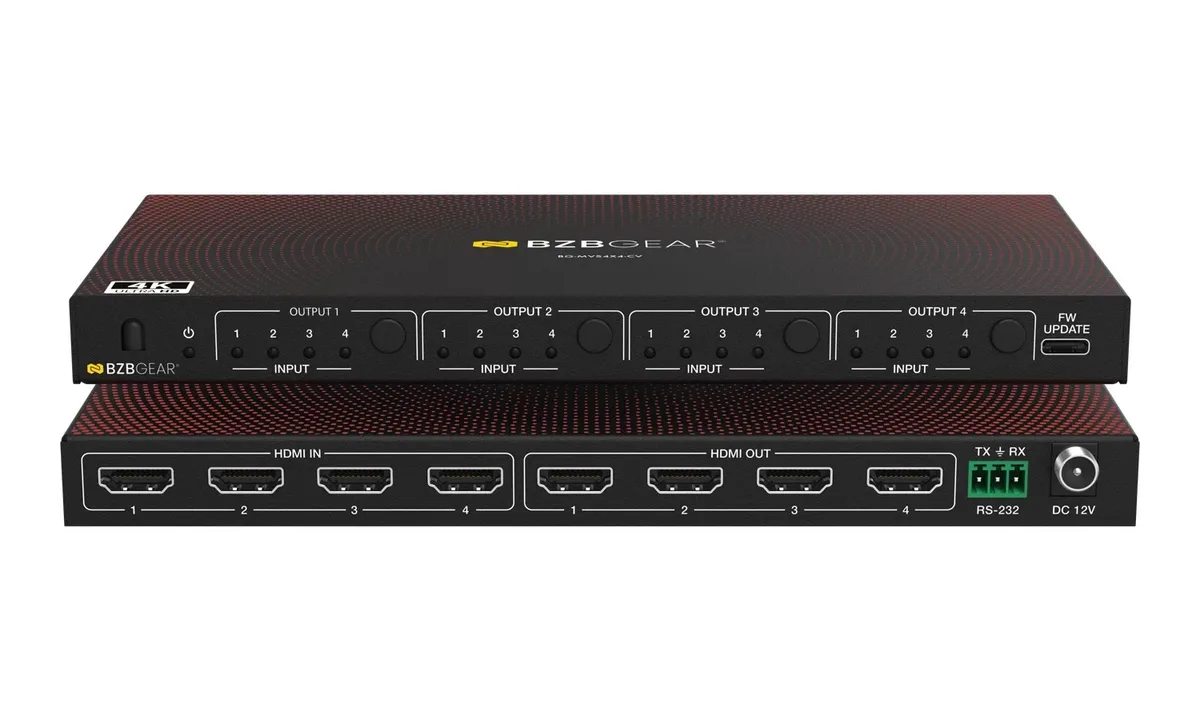

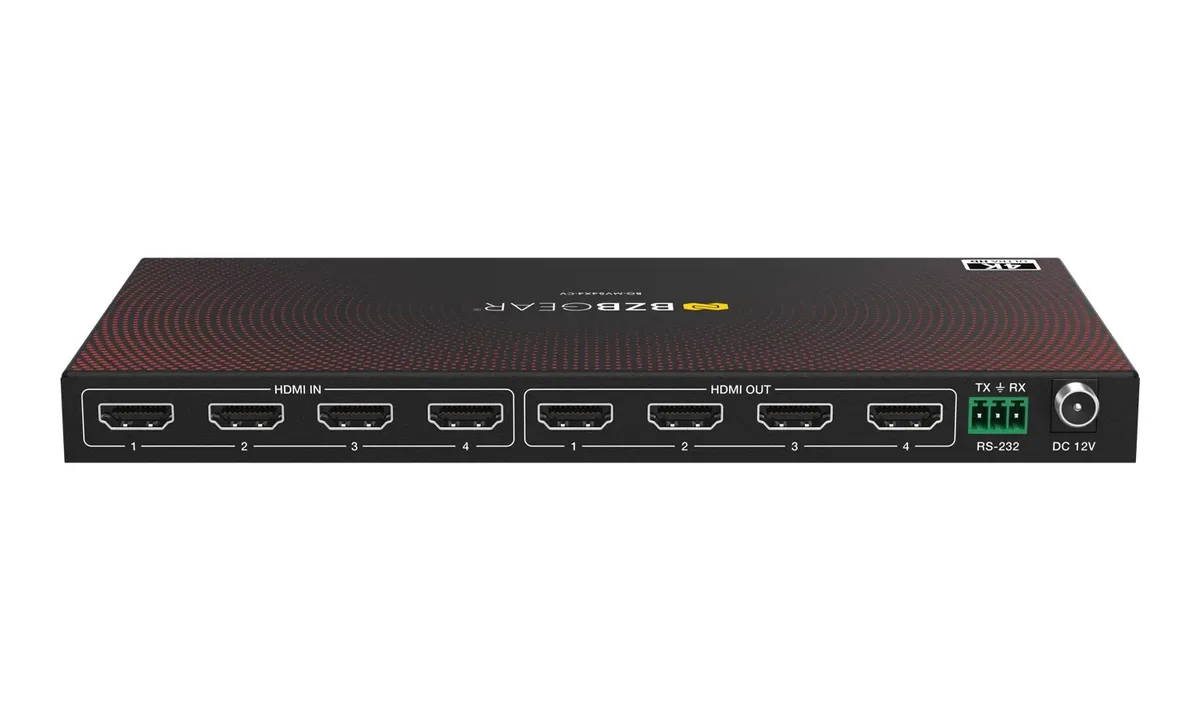

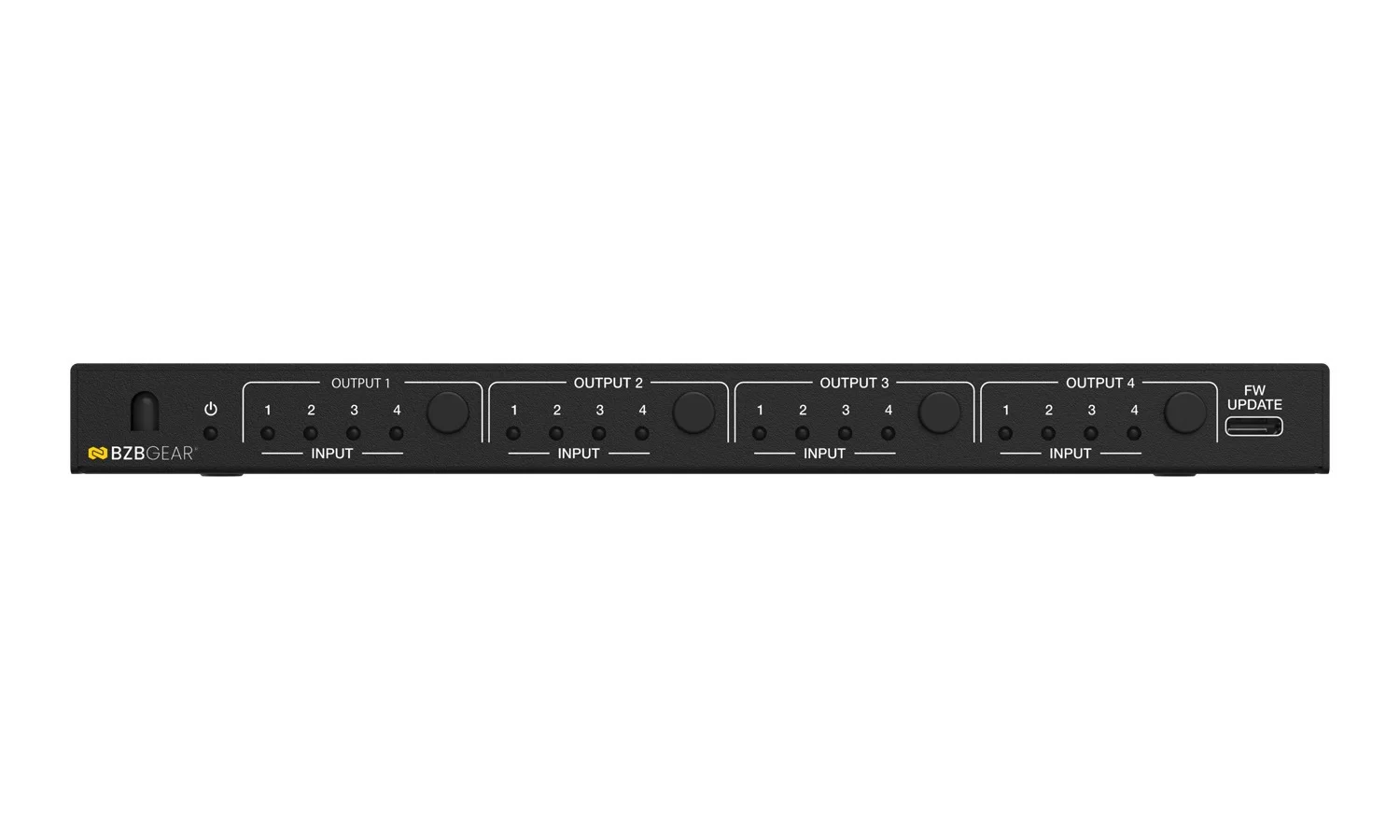

BZBGear BG-MVS4X4-CV 4x4 Seamless Matrix and Video Wall Processor with Scaler

The BG-MVS4X4-CV routes any of four HDMI inputs to any of four outputs with no switching delay, or splits one source across two to four screens in 2x2, 4x1 or 1x4 configurations.

Input resolution goes up to 4K30 on a 10.2 Gbps HDMI 1.4b link, and each output can be scaled up or down to 720p, 1080p, 1920x1200 or 4K30, so mismatched displays are handled inside the unit. IR at 38 kHz and RS-232 are provided for control, and the HDMI audio set from LPCM 2.0 up through Dolby Digital Plus passes through.
