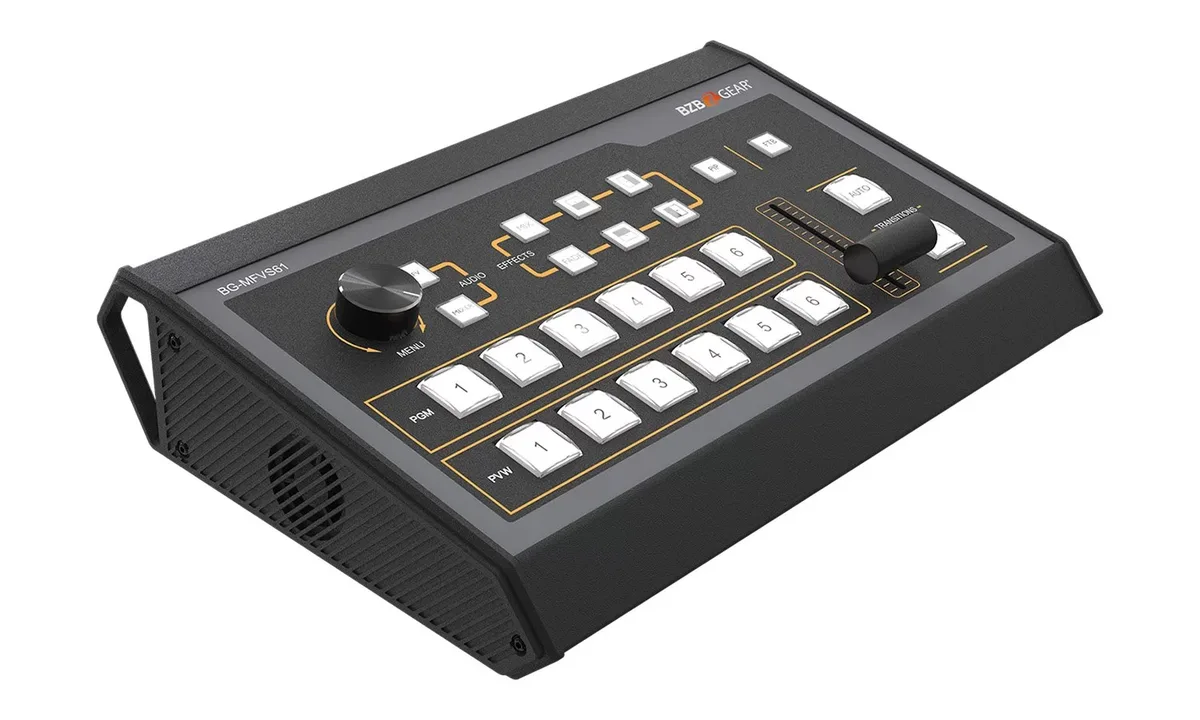

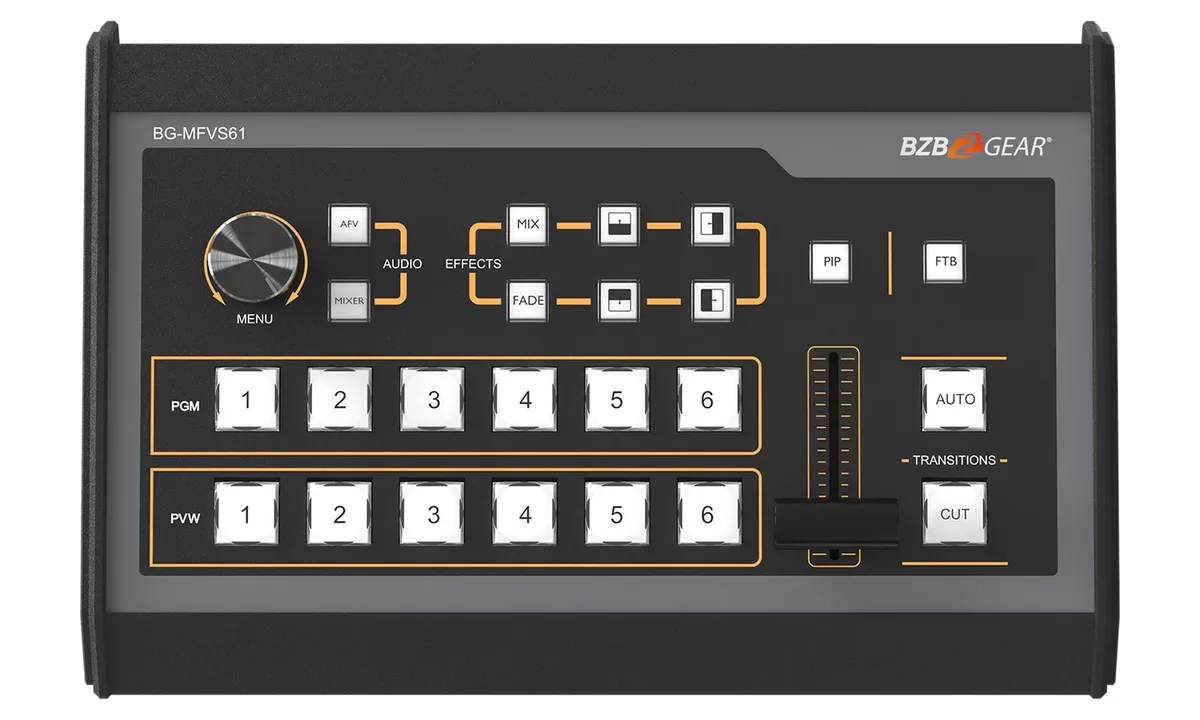

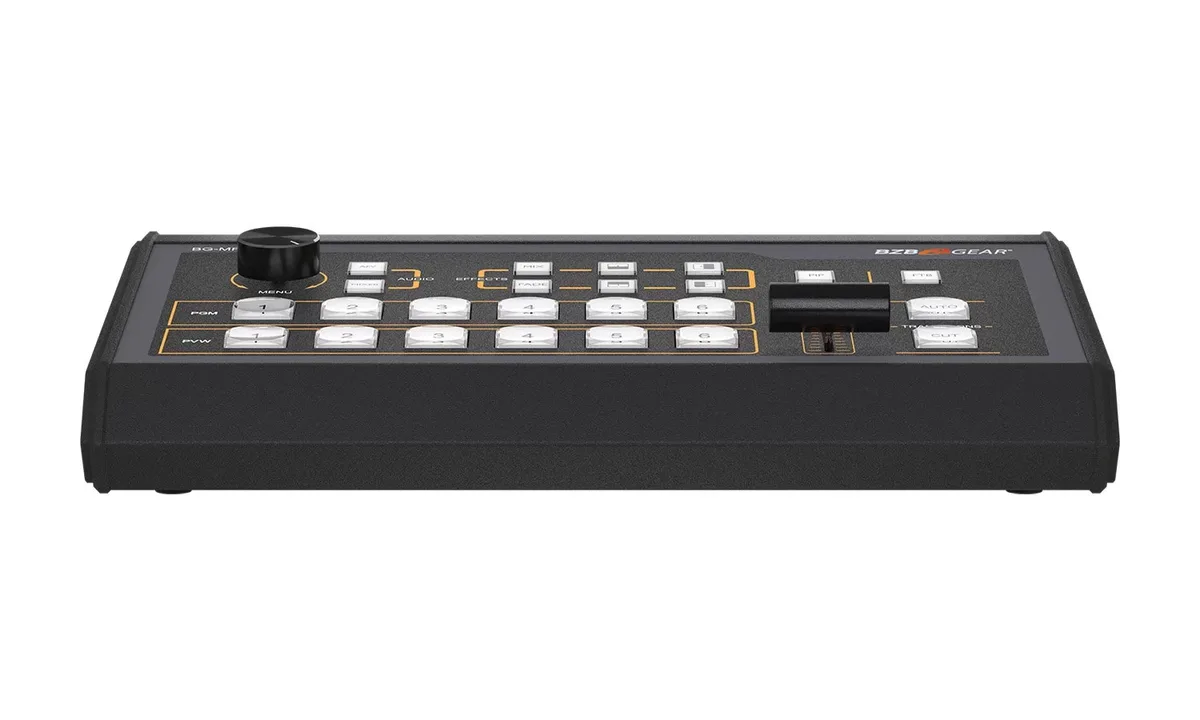

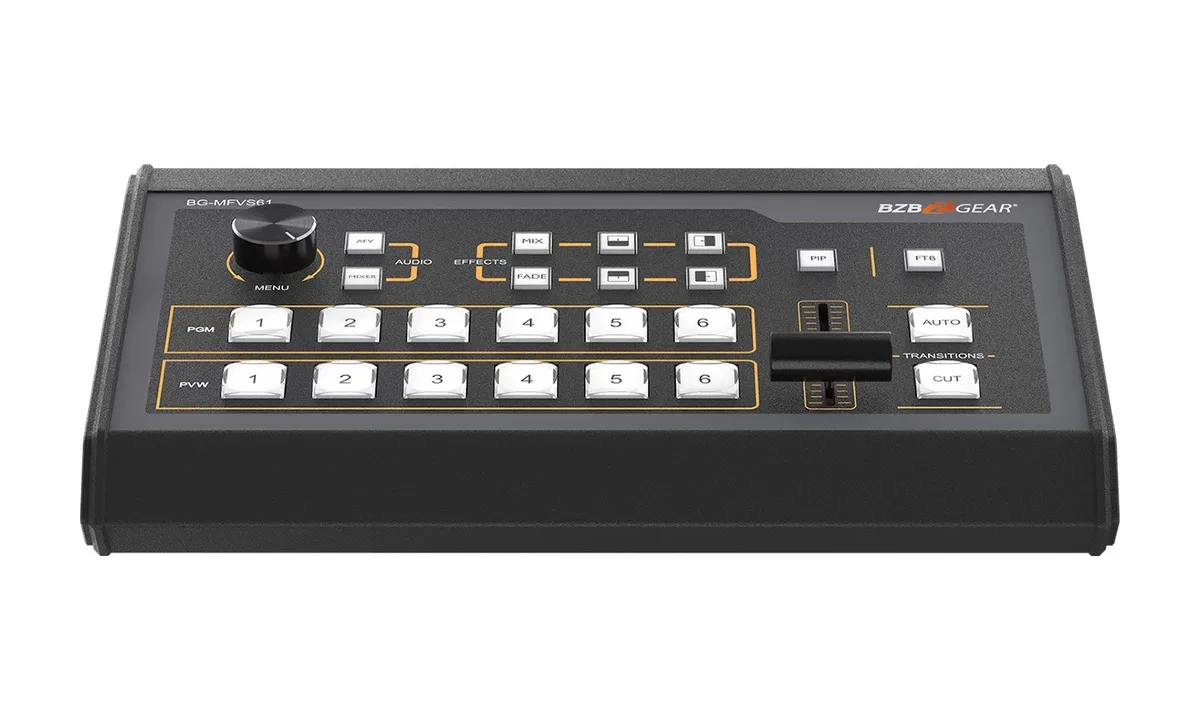

BZBGear BG-MFVS61-G2 Multi-Format Video Switcher

The MFVS61-G2 mixes four SDI cameras and two HDMI sources - which is the shape of most small live productions, where the cameras are on coax and the graphics machine is on HDMI. The program output goes out on SDI and HDMI, and a separate multiview output on SDI and HDMI drives the operator's monitor.

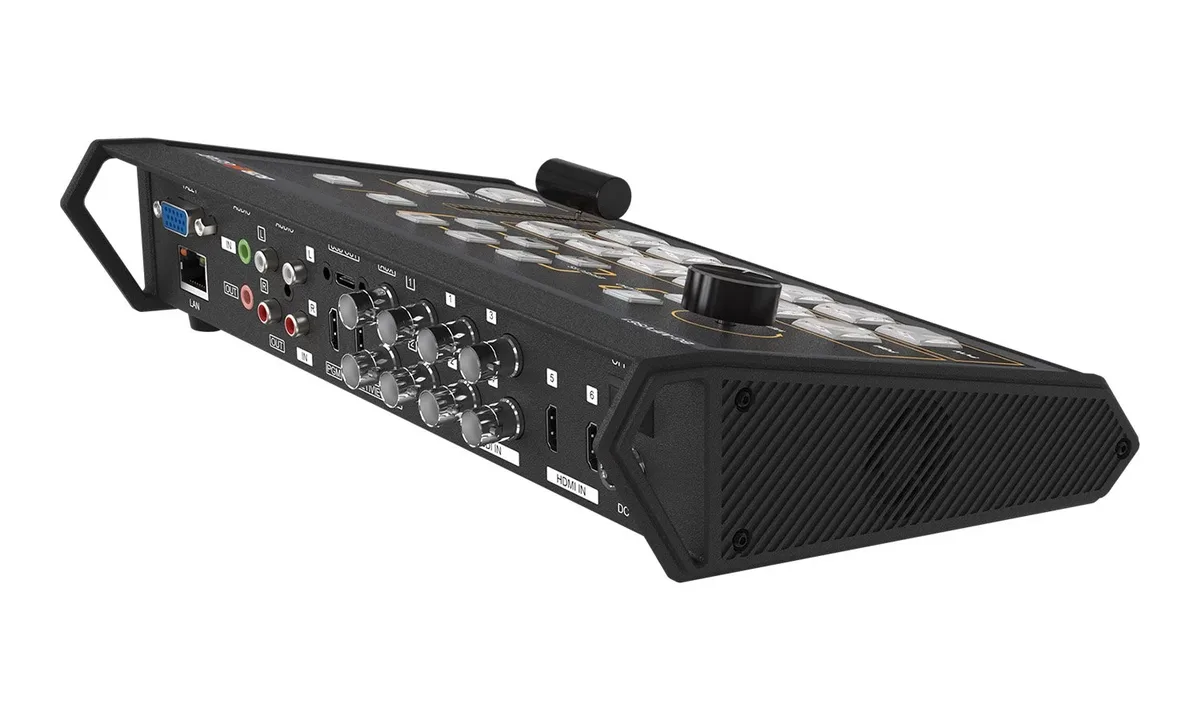

SDI rate is auto-detected across SD, HD and 3G, and colour is carried at 10-bit 4:2:2 on the SDI side. Audio comes in and goes out on 3.5 mm stereo and RCA pairs, GPIO drives tally, and there is an RJ45 for network control. The unit runs on 12 V at 22 watts.

Video inputs	P4x3G/HD/SD-SDI, 2xHDMI
SDI input formats	1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98
HDMI input formats	1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50
SDI compliance	SMPTE 259M/ SMPTE 292M/ SMPTE 424M
Colour space and precision	SDI: YUV 4:2:2, 10-bit; HDMI: RGB 444 8/10/12bit; YUV 444 8/10/12bit; YUV 422 8/10/12bit
Program output format	1080p 60/50/30/25/24; 1080i 50/60
Multiview output	1x3G-SDI; 1xHDMI Type A
Audio input	1x3.5mm Stereo audio; 1xRCA(L/R)
Tally	Tally
Dimensions	13 x 9.6 x 2.64in [330 x 244 x 67mm]
Weight	2.2 lbs [1.0kg]
