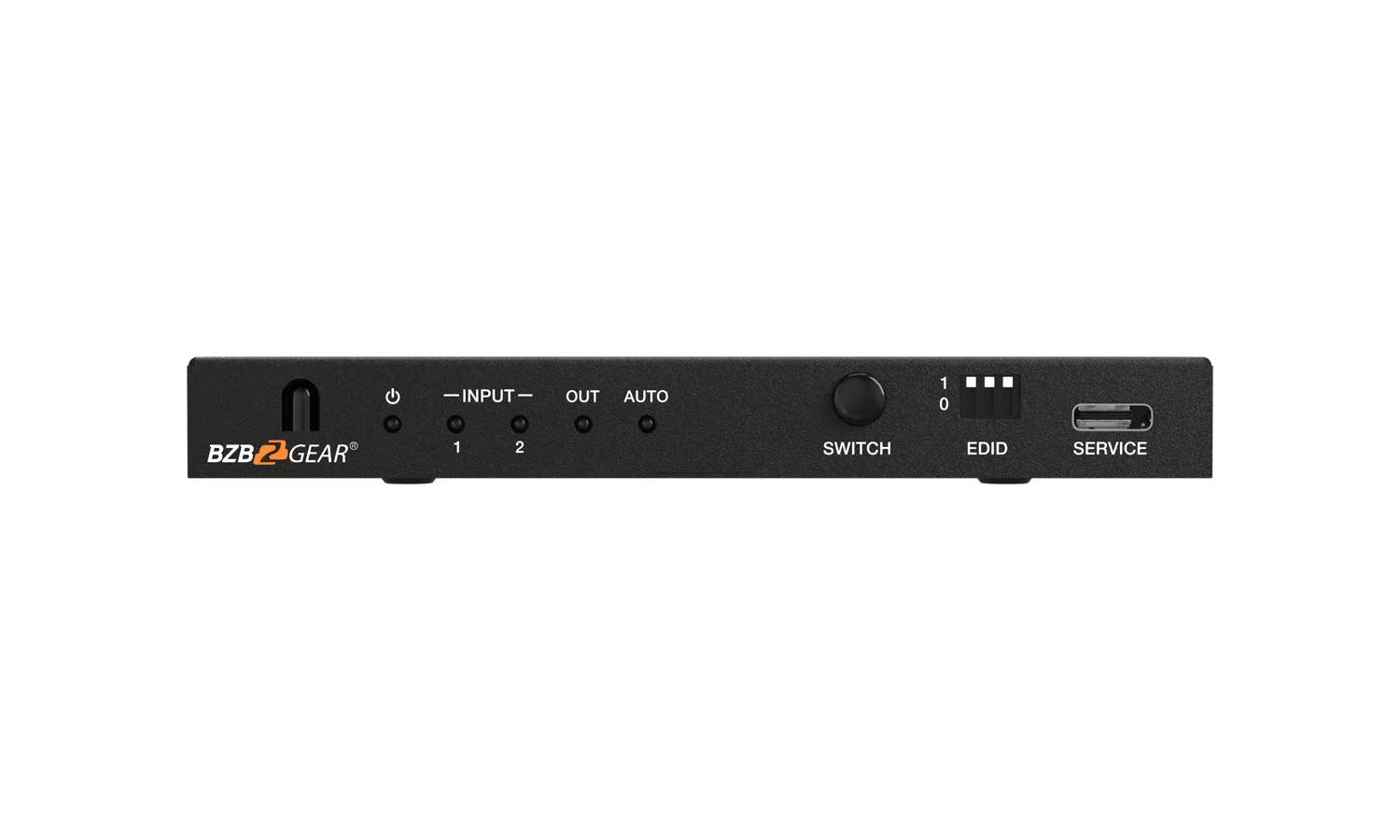

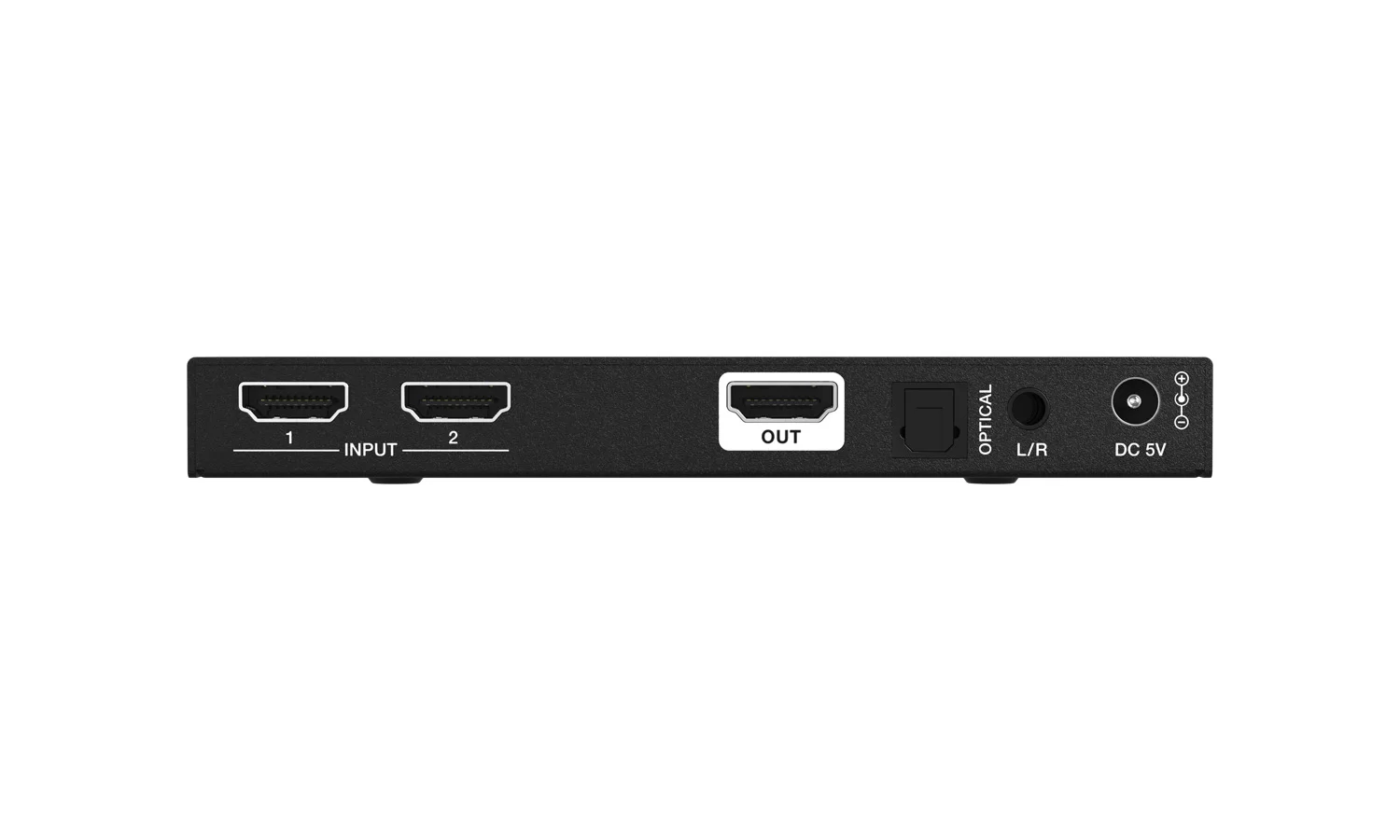

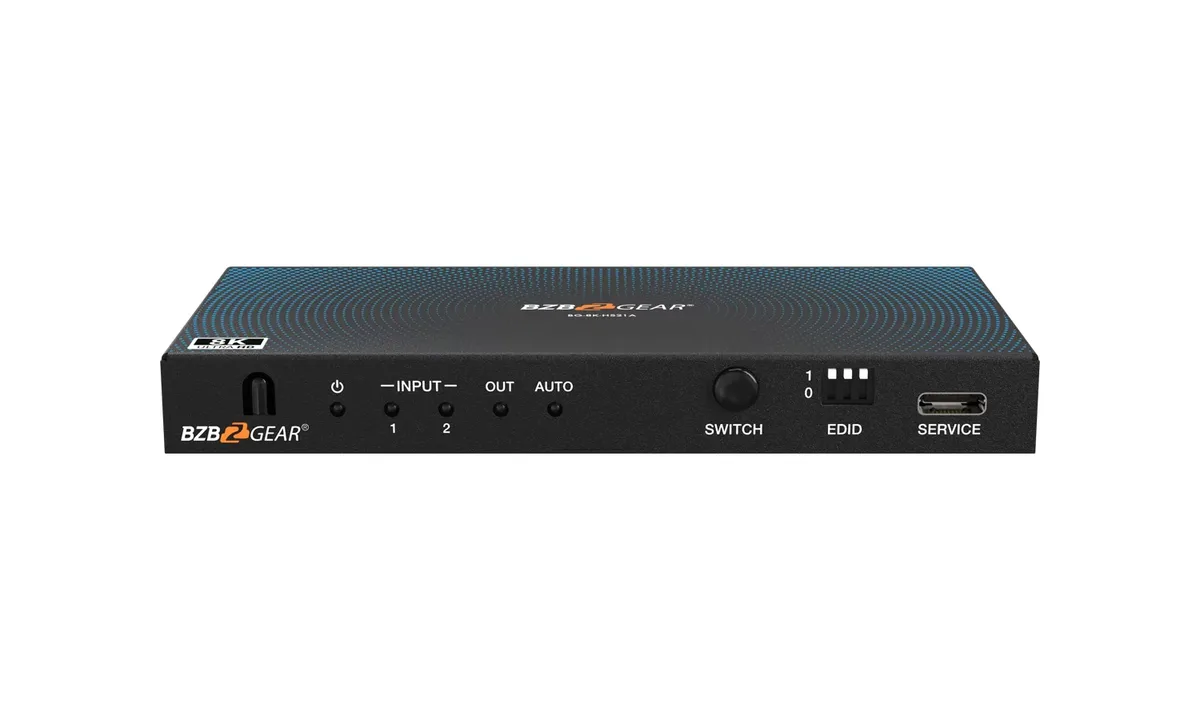

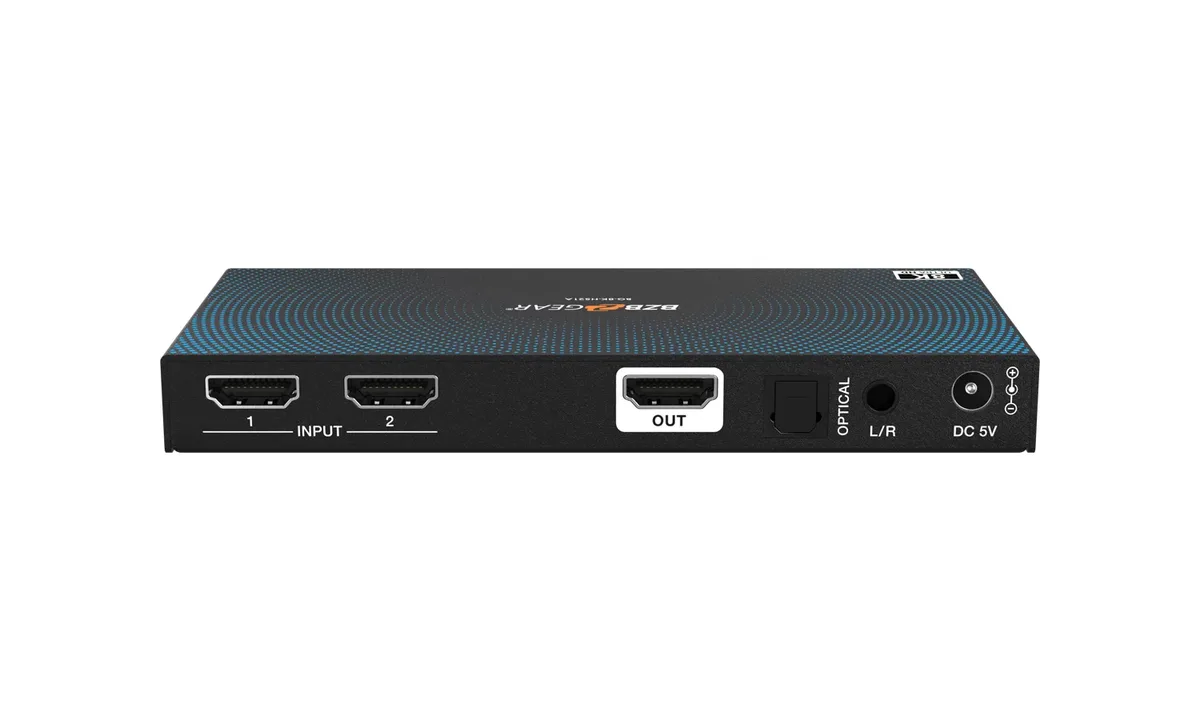

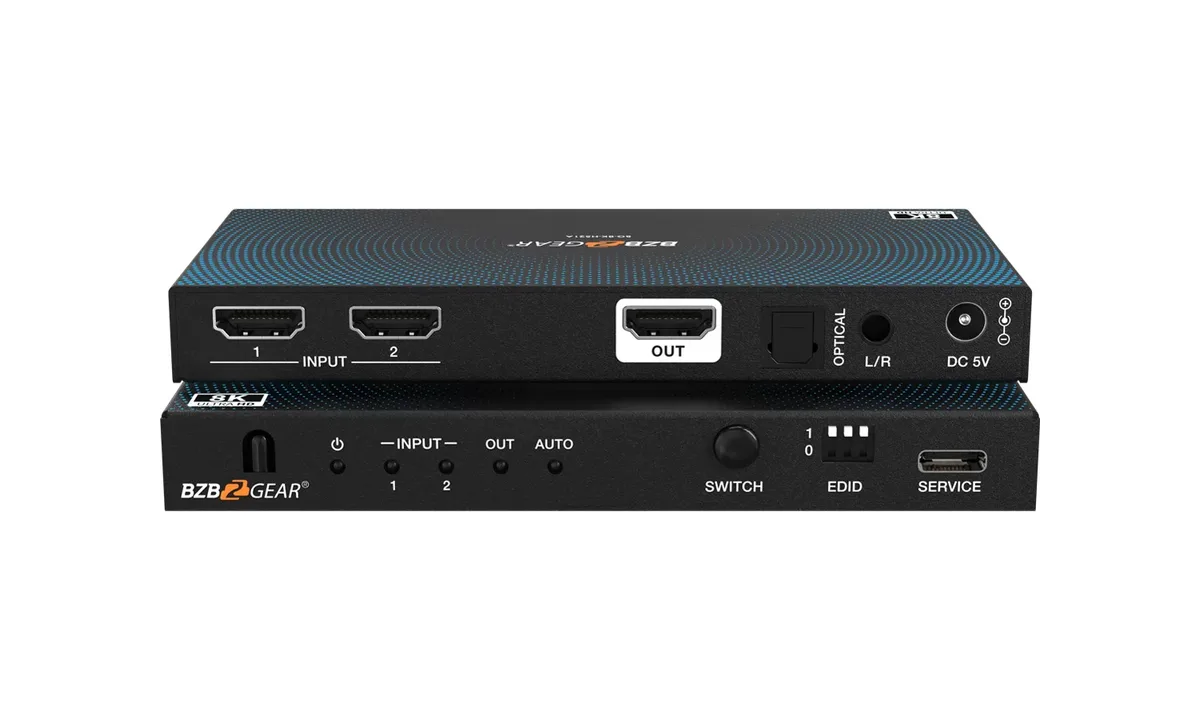

BZBGear BG-8K-HS21A 2x1 8K HDMI Switcher with Audio De-Embedding

The BG-8K-HS21A switches between two HDMI sources onto one display at up to 8K60 4:2:0 12-bit and 4K120 4:4:4 12-bit, on 48 Gbps of bandwidth with HDCP 2.3.

Audio de-embedding puts the selected source's sound on optical S/PDIF and an analog stereo jack, and EDID management can be set to match the display rather than guessing. The metal case measures 145 x 68 x 18 mm and firmware updates go in over USB-C.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K@60Hz YCbCr 4:2:0 12bit, 4K@120Hz RGB/YCbCr 4:4:4 12bit, 1080p240Hz
Input	2 x HDMI IN [Type A, 19-pin female]
Output	1 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Audio Formats	HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio De-embedding Output: Optical: LPCM/Dolby/DTS 5.1CH Analog: LPCM 2CH
Color Depth	8/10/12bit
