BZBGear BG-8K-HCS41 4x1 8K HDMI and USB-C Switcher

The BG-8K-HCS41 switches three HDMI sources and one USB-C source to a single HDMI output. HDMI runs to 8K60 4:2:0 12-bit and 4K120 4:4:4 12-bit on 48 Gbps FRL; the USB-C input is DP 1.4 Alt Mode at up to 32 Gbps and 8K30 4:2:2 10-bit, so a laptop joins the room on one cable.

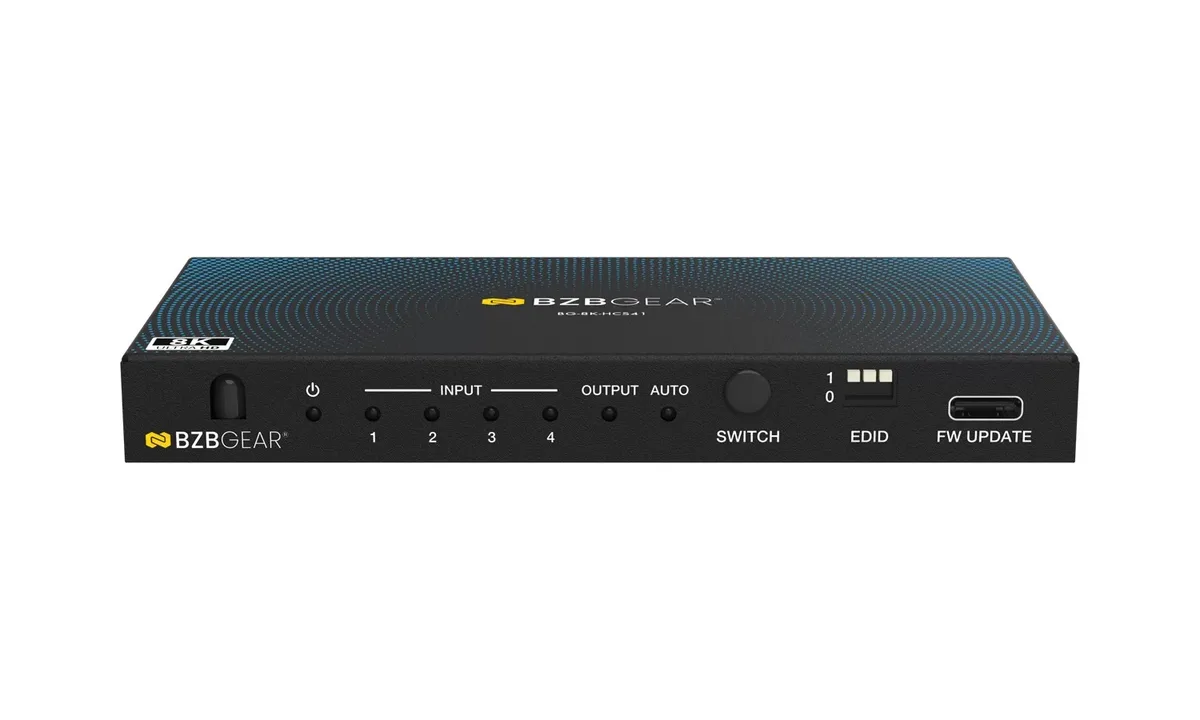

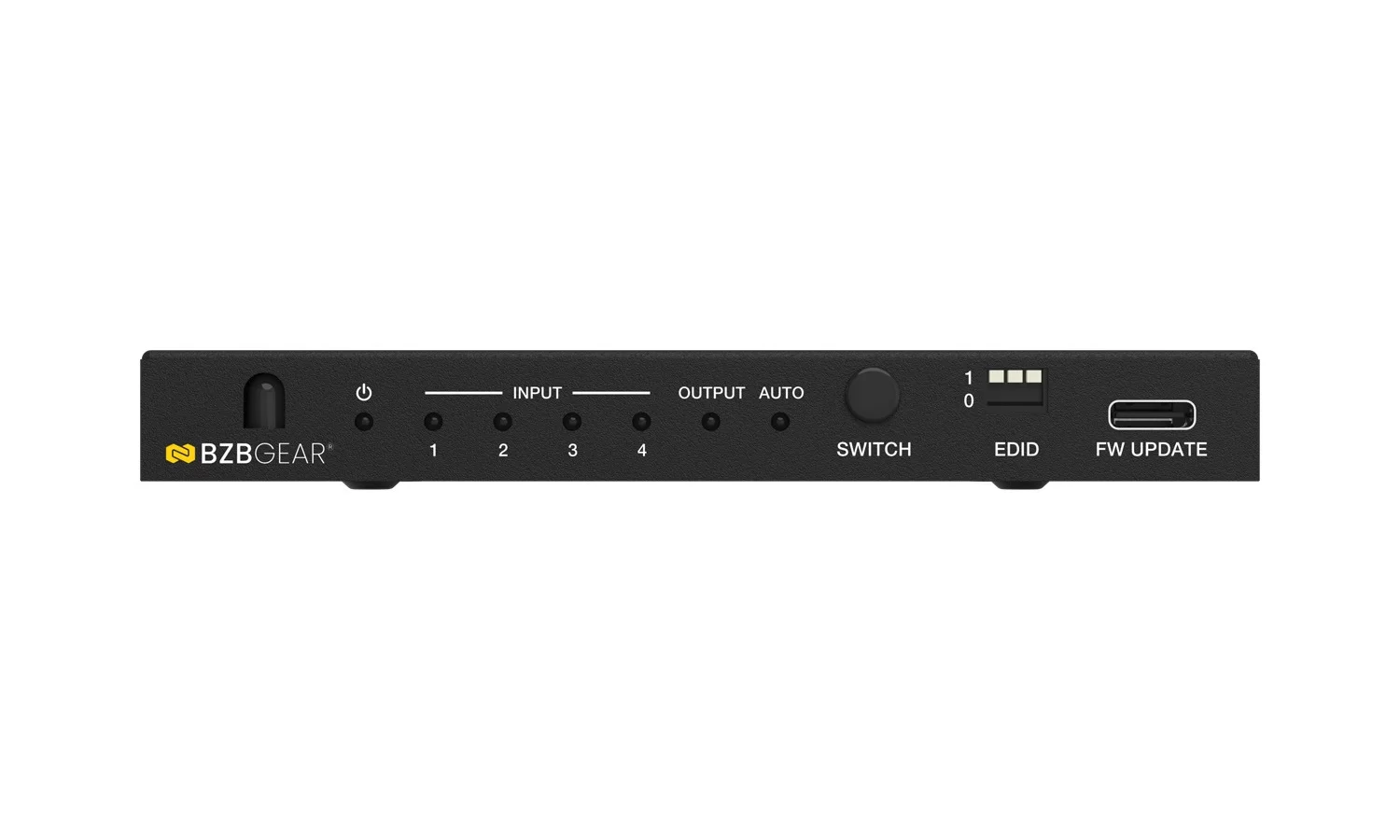

Switching is by front panel button, IR remote or automatically on the active input, and EDID management is configurable rather than fixed. Dolby Atmos, DTS:X and LPCM 7.1 pass through untouched, along with HDR10, HDR10+, Dolby Vision and HLG.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	HDMI: Up to 48Gbps FRL and 18Gbps TMDS USB-C: Up to 32Gbps
Video Resolution	HDMI: Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit, 1080p240Hz USB-C: Up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit

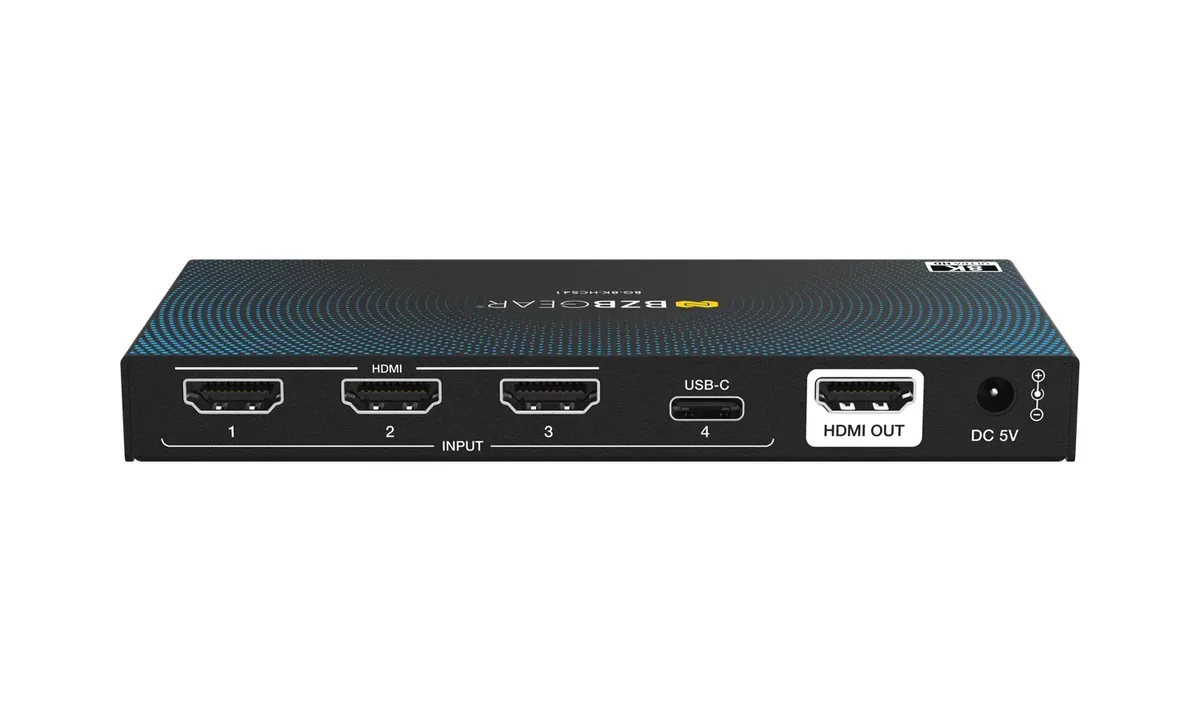

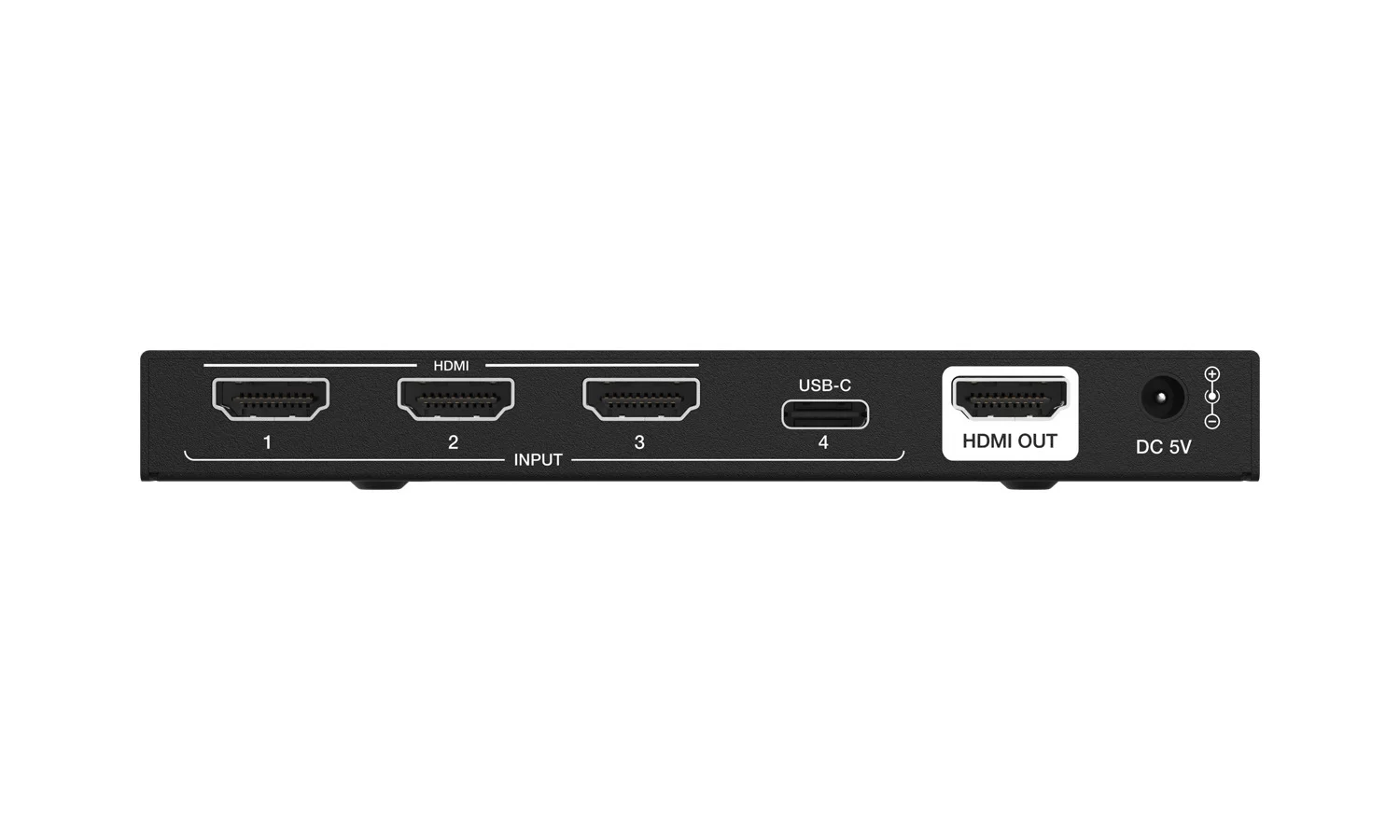

Input	3 x IN [HDMI Type A, 19-pin female] 1 x IN [USB Type C, 24-pin female]
Output	1 x OUT [HDMI Type A, 19-pin female]
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Depth	8-bit,10-bit,12-bit
